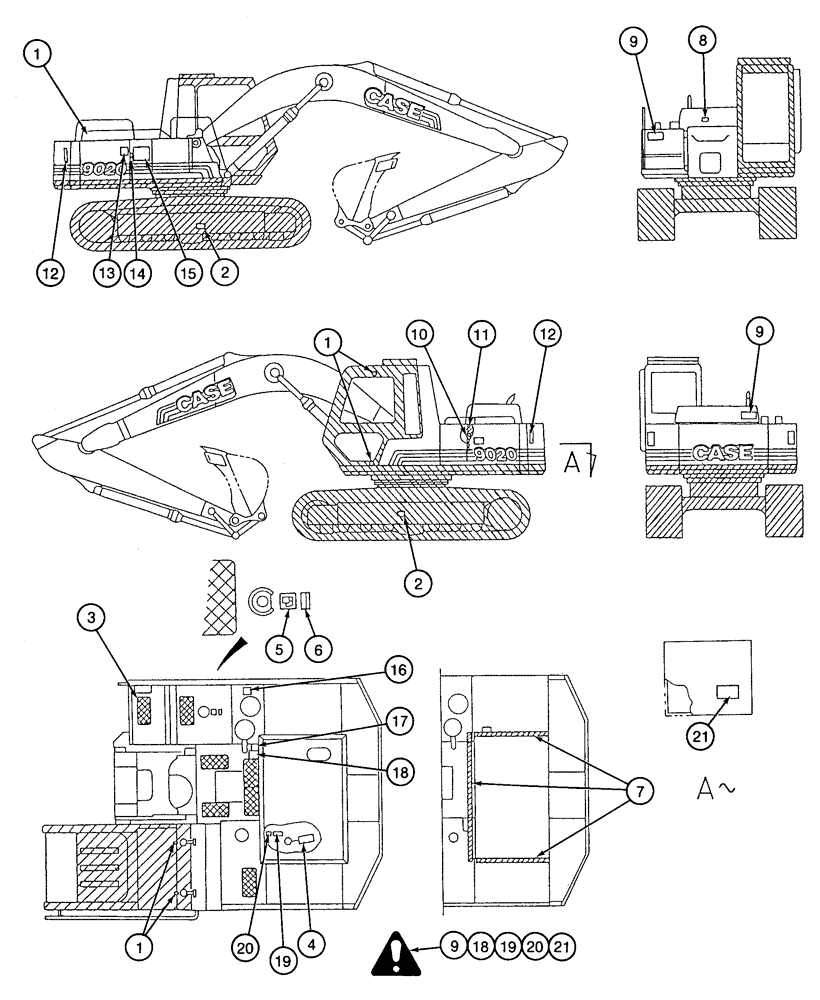

Запчасти Case 9020 (9-66) - DECALS, WARNING AND DANGER - ENGLISH LANGUAGE (09) - CHASSIS

1

151756A1

PLATE WASHER

bumper, 2 inch circle

5шт.

2

158164A1

DECAL

Warning, grease under heavy spring pressure

2шт.

3

150108A1

ANTI-SKID STRIP

anti-skid

7шт.

4

151796A1

ADHESIVE STRIP

TAG antifreeze notice

1шт.

5

150104A1

DECAL

DECAL fuel tank

1шт.

6

151874A1

DECAL

DECAL Information, diesel fuel only

1шт.

7

150645A1

TAPE

CUSHION sponge, special around edge of hood

1шт.

8

156407A1

DECAL

Warning, engine hood can fall, replaces 151857A1

1шт.

9

151864A1

LABEL

DECAL Warning, stay away from machine, if close to power line

2шт.

10

150327A1

ADHESIVE STRIP

CUSHION sponge, special, left-hand side door

1шт.

11

151633A1

TAPE

CUSHION sponge, special, left-hand side door

1шт.

12

151880A1

DECAL

DECAL Danger, keep clear of swinging upper

2шт.

13

151852A1

LABEL

DECAL to check oil level

1шт.

14

156410A1

DECAL

oil level gauge

1шт.

15

151869A1

LABEL

DECAL hand signal chart

1шт.

16

156405A1

DECAL

Warning, pressurized hydraulic system

1шт.

17

156468A1

DECAL

Warning, wrong jumper cable connections

1шт.

18

156404A1

DECAL

Danger, starting in gear

1шт.

19

156406A1

DECAL

Warning, check and service cooling system

1шт.

20

321-3596

DECAL

Warning, rotating fan and belts, replaces 156403A1

1шт.

21

156408A1

DECAL

Warning, batteries contain acid and explosive gas

1шт.

22

158296A1

KIT

decals, French language not shown

1шт.
