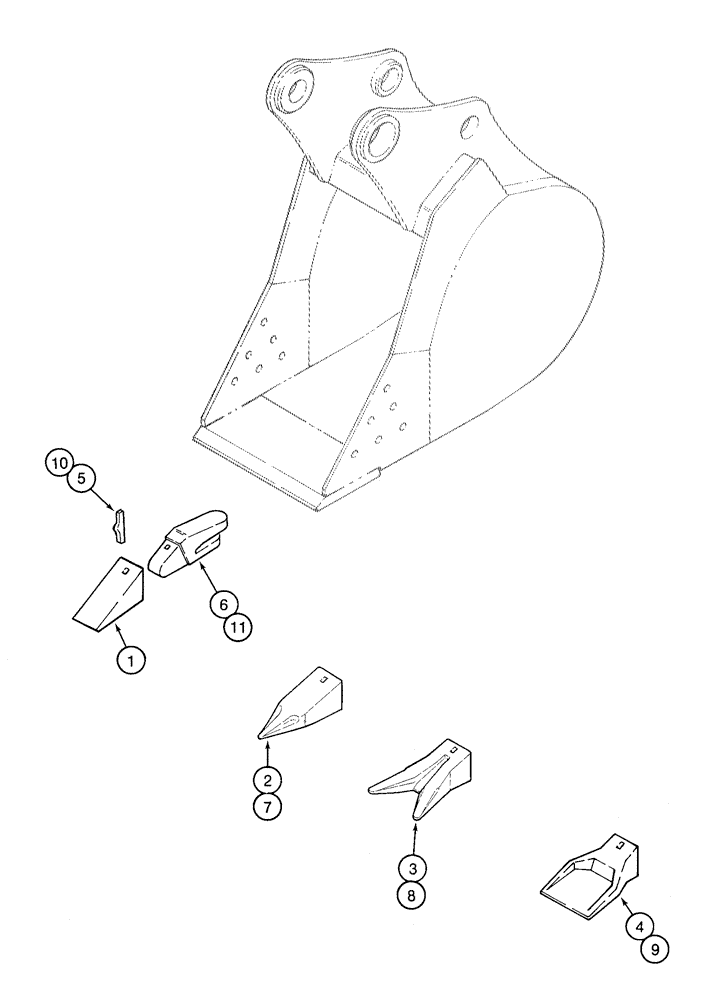

Запчасти Case 9020 (9-60) - HENSLEY BUCKET PARTS,FOR GENL PURPOSE & HEAVY DUTY CENTRAL FABRICATORS/H & H BUCKETS (09) - CHASSIS

1

122665A1

TOOTH

POINT standard tooth

1шт.

2

126914A1

TOOTH

tiger, optional

1шт.

3

126925A1

TOOTH

twin tiger, optional

1шт.

4

126928A1

TOOTH

flared, optional

1шт.

5

N14173

PIN,12.7mm OD x 76.2mm L

flex, point tooth to tooth shank, standard

1шт.

6

122667A1

BUCKET TOOTH SHANK

tooth standard (also called an adapter)

1шт.

7

126934A1

TOOTH

tiger point, optional, with 1-1/4 inch lip tooth shank, 126932A1, for general purpose and heavy duty central fabricators or general purpose and heavy duty H & H buckets

1шт.

8

126936A1

TOOTH

twin tiger point, optional, with 1-1/4 inch lip tooth shank, 126932A1, for general purpose and heavy duty central fabricators or general purpose and heavy duty H & H buckets

1шт.

9

126939A1

TOOTH

flared point, optional, with 1-1/4 inch lip tooth shank, 126932A1, for general purpose and heavy duty central fabricators or general purpose and heavy duty H & H buckets

1шт.

10

N14173

PIN,12.7mm OD x 76.2mm L

flex, point tooth to tooth shank, standard, with 1-1/4 inch lip tooth shank, 126932A1, for general purpose and heavy duty central fabricators or general purpose and heavy duty H & H buckets

1шт.

11

126932A1

ADAPTER

SHANK tooth optional (also called an adapter), with 1-1/4 inch lip tooth shank, 126932A1, for general purpose and heavy duty central fabricators or general purpose and heavy duty H & H buckets

1шт.

7

126934A1

TOOTH

tiger point, optional, with 1-1/2 inch lip tooth shank, 122670A1, for general purpose and heavy duty central fabricators or general purpose and heavy duty H & H buckets

1шт.

8

126936A1

TOOTH

twin tiger point, optional, with 1-1/2 inch lip tooth shank, 122670A1, for general purpose and heavy duty central fabricators or general purpose and heavy duty H & H buckets

1шт.

9

126939A1

TOOTH

flared point, optional, with 1-1/2 inch lip tooth shank, 122670A1, for general purpose and heavy duty central fabricators or general purpose and heavy duty H & H buckets

1шт.

10

N14173

PIN,12.7mm OD x 76.2mm L

flex, point tooth to tooth shank, standard, with 1-1/2 inch lip tooth shank, 122670A1, for general purpose and heavy duty central fabricators or general purpose and heavy duty H & H buckets

1шт.

11

122670A1

ADAPTER

SHANK tooth, 1-1/2 inch, optional (also called an adapter), with 1-1/2 inch lip tooth shank, 122670A1, for general purpose and heavy duty central fabricators or general purpose and heavy duty H & H buckets

1шт.

7

126943A1

TOOTH

tiger point, optional, with 1-1/2 inch lip tooth shank, 122676A1, for general purpose and heavy duty central fabricators or general purpose and heavy duty H & H buckets

1шт.

8

126946A1

TOOTH

twin tiger point, optional, with 1-1/2 inch lip tooth shank, 122676A1, for general purpose and heavy duty central fabricators or general purpose and heavy duty H & H buckets

1шт.

9

127220A1

TOOTH

flared point, optional, with 1-1/2 inch lip tooth shank, 122676A1, for general purpose and heavy duty central fabricators or general purpose and heavy duty H & H buckets

1шт.

10

N14173

PIN,12.7mm OD x 76.2mm L

flex, point tooth to tooth shank, standard, with 1-1/2 inch lip tooth shank, 122676A1, for general purpose and heavy duty central fabricators or general purpose and heavy duty H & H buckets

1шт.

11

122676A1

BUCKET TOOTH SHANK

SHANK tooth, 1-1/2 inch, optional (also called an adapter), with 1-1/2 inch lip tooth shank, 122676A1, for general purpose and heavy duty central fabricators or general purpose and heavy duty H & H buckets

1шт.
