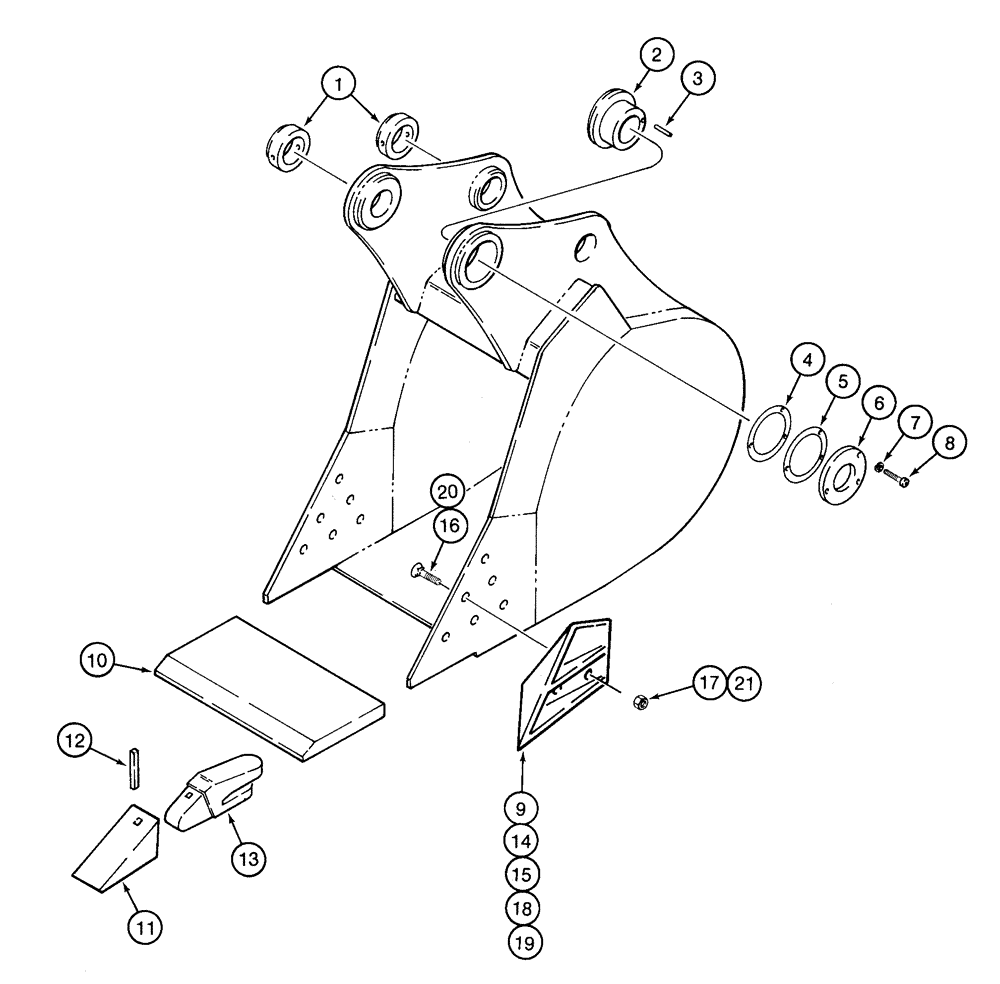

Запчасти Case 9020 (9-56) - H & H BUCKETS, GENERAL PURPOSE AND HEAVY DUTY - STANDARD AND HI-CAPACITY BUCKET ASSEMBLY (09) - CHASSIS

REF

INSTRUCTION

BUCKET - 24 inch (610 mm), with 4 teeth, 0.56 cu. yd., Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 30 inch (762 mm), with 4 teeth, 0.65 cu. yd., Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 5 teeth, 0.82 cu. yd., Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 5 teeth, 0.99 cu. yd., Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 24 inch (610 mm), with 4 teeth, 0.59 cu. yd., Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 30 inch (762 mm), with 4 teeth, 0.75 cu. yd., Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 5 teeth, 0.94 cu. yd., Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 42 inch (1067 mm), with 5 teeth, 1.14 cu. yd., Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 24 inch (610 mm), with 3 teeth, 0.56 cu. yd., Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 30 inch (762 mm), with 4 teeth, 0.75 cu. yd., Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

REF

INSTRUCTION

BUCKET - 36 inch (914 mm), with 4 teeth, 0.94 cu. yd., Includes: Ref. 1 - 9

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

125658A1

LATCH

BUSHING bucket, with locking collar

2шт.

2

125653A1

BUSHING

bucket, adjustable

1шт.

3

125657A1

PIN

dowel, special

2шт.

4

125654A1

SHIM

plate mounting

1шт.

5

125655A1

SHIM

plate mounting

1шт.

6

125656A1

RETAINER

PLATE bushing

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

8

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

3шт.

9

NSS

NOT SOLD SEPARAT

EDGE cutting, side see below

2шт.

10

125711A1

PLATE

EDGE cutting, 1-1/4 (29) x 24 inch (610 mm), bucket

1шт.

10

125712A1

PLATE

EDGE cutting, 1-1/4 (29) x 30 inch (762 mm), bucket

1шт.

10

125713A1

PLATE

EDGE cutting, 1-1/4 (29) x 36 inch (914 mm), bucket

1шт.

10

125714A1

PLATE

EDGE cutting, reversible, 1-1/4 (29) x 42 inch (1067 mm), bucket

1шт.

11

122665A1

TOOTH

POINT

1шт.

See Figures 9-60 and 9-62 for point, pin and shank options.

1шт.

12

N14173

PIN,12.7mm OD x 76.2mm L

flex, point

1шт.

See Figures 9-60 and 9-62 for point, pin and shank options.

1шт.

13

122667A1

BUCKET TOOTH SHANK

tooth, also called an adapter

1шт.

See Figures 9-60 and 9-62 for point, pin and shank options.

1шт.

112985A1

EDGE, CUTTING

KIT side cutter blade, 3 inch, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

BLADE side cutter, 3 inch

1шт.

15

NSS

NOT SOLD SEPARAT

BLADE side cutter, 3 inch

1шт.

16

320-21440

CARRIAGE BOLT,#3, 7/8" - 9 x 2 1/2", Gr 8

plow, #3 head, 7/8 NC x 2 - 1/2 inch, grade 8

10шт.

17

232-41314

LOCK NUT,7/8"-9, GC

10шт.

112732A1

KIT

side cutter blade, 4 inch, Includes: Ref. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

BLADE side cutter, 4 inch

1шт.

19

NSS

NOT SOLD SEPARAT

BLADE side cutter, 4 inch

1шт.

20

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

plow, #3 head, 7/8 NC x 3 inch, grade 8

10шт.

21

232-41314

LOCK NUT,7/8"-9, GC

10шт.

22

112749A1

CATALOG

RIPPER frost with one tooth, not shown

1шт.
