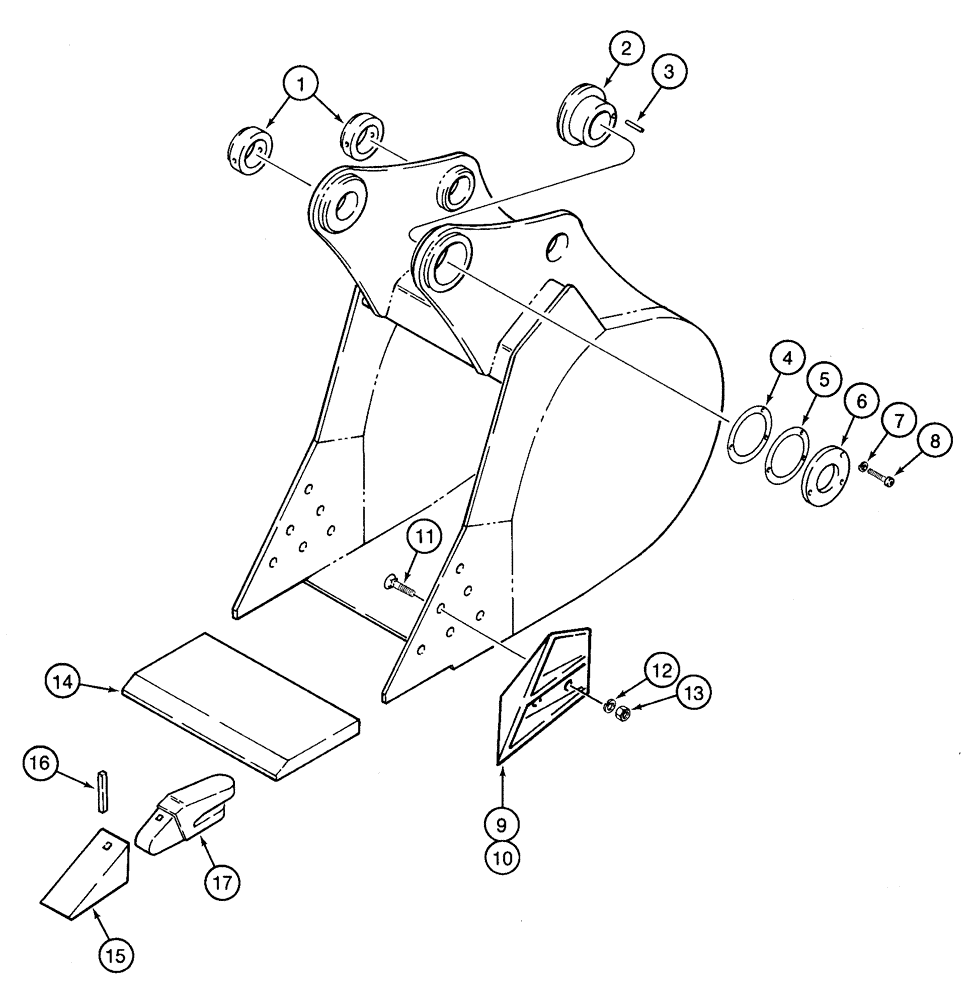

Запчасти Case 9020 (9-52) - CENTRAL FABRICATORS BUCKETS, GENERAL PURPOSE AND HEAVY DUTY, STANDARD AND HIGH CAPACITY (09) - CHASSIS

112119A1

BUCKET 24 inch (610 mm), with 4 teeth, 0.50 cu. yd., General Purpose, Standard Capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

112120A1

BUCKET 30 inch (762 mm), with 4 teeth, 0.64 cu. yd., General Purpose, Standard Capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

112121A1

BUCKET 36 inch (914 mm), with 5 teeth, 0.78 cu. yd., General Purpose, Standard Capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

112122A1

BUCKET 42 inch (1067 mm), with 6 teeth, 0.92cu. yd., General Purpose, Standard Capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

112124A1

BUCKET 24 inch (610 mm), with 4 teeth, 0.59 cu. yd., General Purpose, High Capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

112125A1

BUCKET 30 inch (762 mm), with 4 teeth, 0.77 cu. yd., General Purpose, High Capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

112126A1

BUCKET 36 inch (914 mm), with 5 teeth, 0.95 cu. yd., General Purpose, High Capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

112127A1

BUCKET 42 inch (1067 mm), with 5 teeth, 1.12 cu. yd., General Purpose, High Capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

112128A1

BUCKET 24 inch (610 mm), with 4 teeth, 0.50 cu. yd., Heavy Duty, Standard Capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

112129A1

BUCKET 30 inch (762 mm), with 4 teeth, 0.64 cu. yd., Heavy Duty, Standard Capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

112130A1

BUCKET

BUCKET 36 inch (914 mm), with 5 teeth, 0.78 cu. yd., Heavy Duty, Standard Capacity, Includes: Ref. 1 - 17

1шт.

Order bucket assembly from Machinery Price List.

1шт.

1

122705A1

LATCH

BUSHING bucket, with locking collar

2шт.

2

122701A1

BUSHING

bucket, adjustable, Includes: Ref. 3

1шт.

3

37-1816

DOWEL,1/2" x 1"

PIN, 1/2 x 1 inch, hardened

1шт.

4

122702A1

SHIM

plate mounting, 0.039 inch thick

1шт.

5

122703A1

SHIM

plate mounting, 0.020 inch thick

1шт.

6

122704A1

RETAINER

PLATE bushing

1шт.

7

140030

LOCK WASHER,M14

3шт.

8

361-36232

HEX SOC SCREW,5/8" - 11 x 2"

hex, socket, 14 - 2.0 x 50 mm, class 12.9

3шт.

112222A1

HALF BLADE

KIT edge, side cutting, 6 inch, Includes: Ref. 9 - 13

1шт.

9

122682A1

CUTTER

EDGE, bucket, right-hand side

1шт.

10

122683A1

CUTTER

EDGE, bucket, left-hand side

1шт.

11

320-21448

CARRIAGE BOLT,#3, 7/8" - 9 x 3", Gr 8

plow, #3 head, 7/8 NC x 3 inch, grade 8

12шт.

12

392-21088

LOCK WASHER,7/8"

7/8"

12шт.

13

329-1014

NUT,7/8"-9, G8

12шт.

14

125015A1

PLATE

EDGE cutting, center, 1-1/4 (29) x 24 inch (610 mm) bucket

1шт.

14

125016A1

PLATE

EDGE cutting, center, 1-1/4 (29) x 30 inch (762 mm ) bucket

1шт.

14

125017A1

PLATE

EDGE cutting, center, 1-1/4 (29) x 36 inch (914 mm) bucket

1шт.

14

125018A1

PLATE

EDGE cutting, center, 1-1/4 (29) x 42 inch (1067 mm) bucket

1шт.

15

122668A1

TOOTH

POINT

1шт.

See Figures 9-60 and 9-62 for point, pin and shank options.

1шт.

16

122669A1

FASTENER

PIN flex, point

1шт.

See Figures 9-60 and 9-62 for point, pin and shank options.

1шт.

Dealer may have wedge pin instead of Ref. 16 N14173, dealer must order N120601 wedge key

1шт.

17

122670A1

ADAPTER

SHANK tooth also called, an adapter

1шт.

See Figures 9-60 and 9-62 for point, pin and shank options.

1шт.
