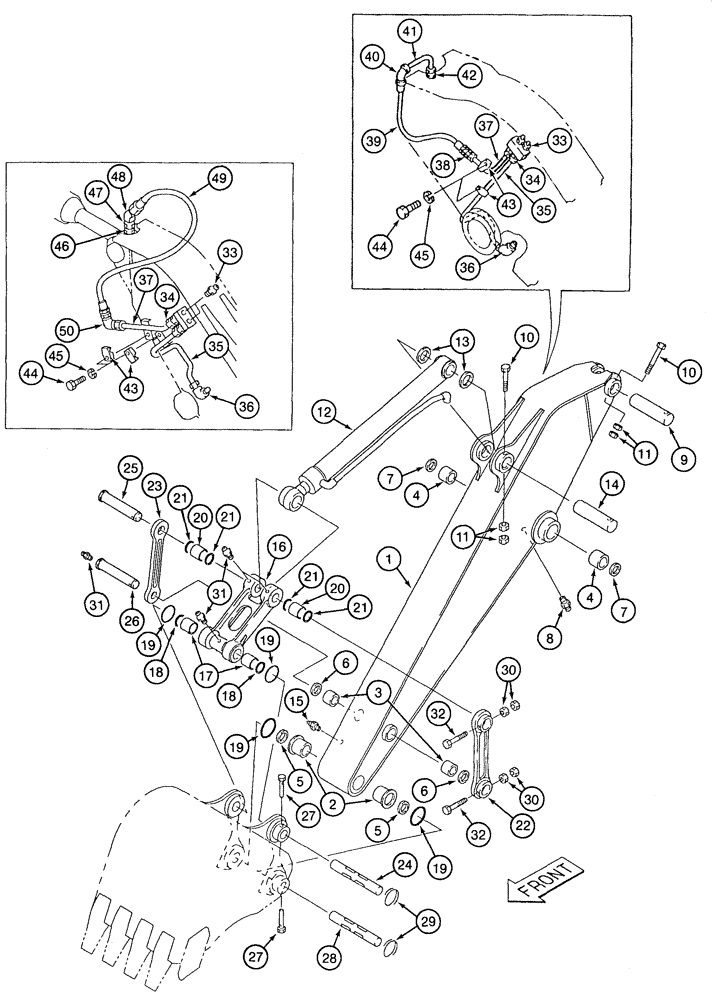

Запчасти Case 9020 (9-50) - ARM AND LINKAGE, 10 FOOT 4 INCH (3150 MM) ARM (09) - CHASSIS

1

157146A1

ARM

ASSEMBLY long option, 10 ft 4 inch (3150 mm), Includes: Ref. 2 - 4

1шт.

2

150258A1

BUSHING,80mm ID x 135mm OD x 80mm L

, Serial Range: steel-bucket

2шт.

3

150128A1

BUSHING,65mm ID x 80mm OD x 50mm L

, Serial Range: steel-arm

2шт.

4

151432A1

BUSHING,80mm ID x 95mm OD x 80mm L

, Serial Range: steel-arm

2шт.

5

150033A1

SEAL

dust, bushing, Serial Range: bucket-arm

2шт.

6

150014A1

SEAL

dust, Serial Range: link-arm

2шт.

7

150083A1

SEAL

dust, Serial Range: boom-arm

2шт.

8

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING grease, special straight

1шт.

9

150101A1

PIN

, Serial Range: attaching-arm

1шт.

10

514-1032

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

Hex, M16 x 1.5 x 140, 10.9

2шт.

11

825-11416

NUT,M16 x 1.5, Cl 8

Hex

4шт.

12

150017A1

CYLINDER

ASSEMBLY 4-3/8 (110) ID x 39 - 1/4 inch (997 mm) stroke bucket, replaces 157147A1, parts list Figure 8-80

1шт.

13

150142A1

SHIM KIT

SHIM plate, 0.05 inch thick

1шт.

14

150088A1

PIN ASSY.

attaching closed end

1шт.

15

153630A1

LUBE NIPPLE

FITTING grease, straight

1шт.

16

150227A1

LINK

center bucket

1шт.

This part is an assembly which consist of: Refs. 17, 18, 20, and 21 dust seals, and bushings.

1шт.

17

150264A1

BUSHING,80mm ID x 95mm OD x 65mm L

, Serial Range: BUSHING-bucket

2шт.

18

150033A1

SEAL

dust, bushing bucket center link bushings, at bucket

2шт.

19

150367A1

O-RING,122mm ID x 8mm Width

arm and link to bucket

4шт.

20

150123A1

BUSHING,70mm ID x 85mm OD x 70mm L

at bucket cylinder

2шт.

21

150023A1

SEAL

dust, link to arm center link, at bucket cylinder

4шт.

22

150057A1

LINK

arm to bucket, left-hand

1шт.

23

150053A1

LINK

arm to bucket, right-hand

1шт.

24

157148A1

PIN

, Serial Range: attaching-bucket

1шт.

Pins are used for the quick disconnect and for the buckets

1шт.

25

150082A1

PIN

attaching to outer links

1шт.

26

150084A1

PIN

, Serial Range: attaching-arm

1шт.

27

153748A1

PIN,20mm OD x 125mm L

special pin lock, at bucket ear

2шт.

28

157149A1

PIN

, Serial Range: attaching-bucket

1шт.

Pins are used for the quick disconnect and for the buckets

1шт.

29

153749A1

RING

wire

2шт.

30

825-11416

NUT,M16 x 1.5, Cl 8

Hex

4шт.

31

153630A1

LUBE NIPPLE

FITTING grease, straight

4шт.

32

514-1032

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

Hex, M16 x 1.5 x 140, 10.9

2шт.

33

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING grease, special straight

2шт.

34

152599A1

MULTIPOLE CONNECTOR

straight, special lubrication line

3шт.

35

157150A1

TUBE,530.1, 257.2 mm Length

lubrication zerk, 33 to arm mounting pin

1шт.

36

152627A1

ELBOW

90 degree, special

1шт.

37

157151A1

TUBE,200, 210 mm Length

lubrication from zerk, 33 to arm cylinder pin on boom

1шт.

38

152032A1

UNION

CONNECTOR straight

1шт.

39

151508A1

HOSE,700.00 mm

Nylon, Arm cylinder to arm

1шт.

40

153696A1

ELBOW

90 degree lubrication line

1шт.

41

157152A1

TUBE,150, 150 mm Length

lubrication arm cylinder to arm, at arm

1шт.

42

152599A1

MULTIPOLE CONNECTOR

straight, special

1шт.

43

151504A1

CLAMP

lubrication line, single type

2шт.

44

628-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

45

892-11008

LOCK WASHER,8mm ID

2шт.

46

153693A1

NIPPLE, LUBE

NIPPLE lubrication

1шт.

47

151055A1

BUSHING

reducer

1шт.

48

160617A1

ELBOW

45 degree

1шт.

49

153729A1

HOSE

48-13/16 inch (1240 mm) long lubrication

1шт.

50

153695A1

ELBOW

90 degree

1шт.
