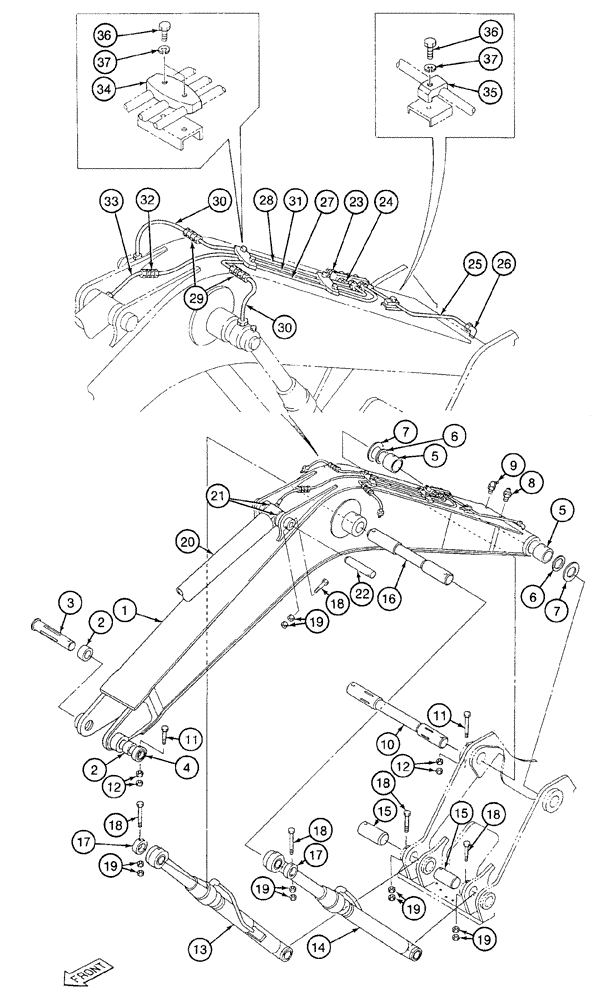

Запчасти Case 9020 (9-46) - BOOM, MOUNTING PINS AND CYLINDERS (09) - CHASSIS

1

150030A1

BOOM

excavator

1шт.

2

150131A1

BUSHING

BUSHING, Serial Range: boom-arm

2шт.

3

150092A1

PIN

attaching, Serial Range: boom-arm

1шт.

4

150134A1

COLLAR CLAMP

pin, retaining

1шт.

5

151432A1

BUSHING,80mm ID x 95mm OD x 80mm L

steel, Serial Range: boom-frame

2шт.

6

150083A1

SEAL

dust

2шт.

7

150145A1

SHIM

plate, 0.05 inch

1шт.

8

153630A1

LUBE NIPPLE

FITTING grease, straight

1шт.

9

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING grease, special, 90 degree

1шт.

10

150110A1

PIN

attaching, Serial Range: boom-frame

1шт.

11

514-1400

BOLT,Hex, M24 x 2 x 170mm, Cl 10.9

hex, 24 - 2.0 x 170 mm, class 10.9

2шт.

12

825-13424

NUT,M24 x 2, Cl 8

hex, 24 mm - 2.0

4шт.

13

150007A1

CYLINDER ASSY.

ASSEMBLY 4-3/4 (120) ID x 46 - 5/8 inch (1184 mm) stroke boom, right-hand, parts list Figure 8-76

1шт.

14

150001A1

CYLINDER ASSY.

ASSEMBLY 4-3/4 (120) ID x 46 - 5/8 inch (1184 mm) stroke boom, left hand, parts list Figure 8-76

1шт.

15

150106A1

PIN ASSY.

attaching at frame

2шт.

16

150098A1

PIN

attaching at boom

1шт.

17

150138A1

COLLAR

pin, retaining

2шт.

18

514-1032

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

Hex, M16 x 1.5 x 140, 10.9

5шт.

19

825-11416

NUT,M16 x 1.5, Cl 8

Hex

10шт.

20

150013A1

CYLINDER

SPARE PART ASSEMBLY 4-15/16 (125 mm) ID x 57 inch (1448 mm) stroke arm, parts list Figure 8-78

1шт.

20

150013A1

CYLINDER

SPARE PART ASSEMBLY 4-15/16 (125 mm) ID x 57 inch (1448 mm) stroke arm, parts list Figure 8-78

1шт.

21

150502A1

SHIM,71mm ID x 135mm OD x 1.2mm Thk

plate, 0.05 inch thick

1шт.

22

150101A1

PIN

attaching at boom

1шт.

23

153630A1

LUBE NIPPLE

FITTING grease, straight

4шт.

24

152599A1

MULTIPOLE CONNECTOR

straight, special, lubrication line

4шт.

25

150183A1

TUBE,473.7, 214 mm Length

lubrication, boom pin at frame

1шт.

26

152627A1

ELBOW

90 degree, special

1шт.

27

150173A1

TUBE,2047.4, 411.2 mm Length

lubrication, left-hand, boom cylinder rod eye

1шт.

28

150170A1

TUBE

lubrication, right-hand, boom cylinder rod eye

1шт.

29

152032A1

UNION

CONNECTOR straight

2шт.

30

150983A1

HOSE ASSY.

17-3/4 inch (450 mm) long nylon, boom cylinder pin

2шт.

31

150179A1

TUBE,2157.4, 946.9 mm Length

lubrication, arm cylinder pin

1шт.

32

152032A1

UNION

CONNECTOR straight

1шт.

33

151508A1

HOSE,700.00 mm

Nylon, At arm cylinder

1шт.

34

151497A1

CLAMP

lubrication line, triple type

2шт.

35

151504A1

CLAMP

lubrication line, single type

1шт.

36

628-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

5шт.

37

892-11008

LOCK WASHER,8mm ID

5шт.
