(2-02) - ENGINE MOUNTING, RADIATOR AND ADAPTING PARTS

Запчасти Case 9020 (2-02) - ENGINE MOUNTING, RADIATOR AND ADAPTING PARTS (02) - ENGINE

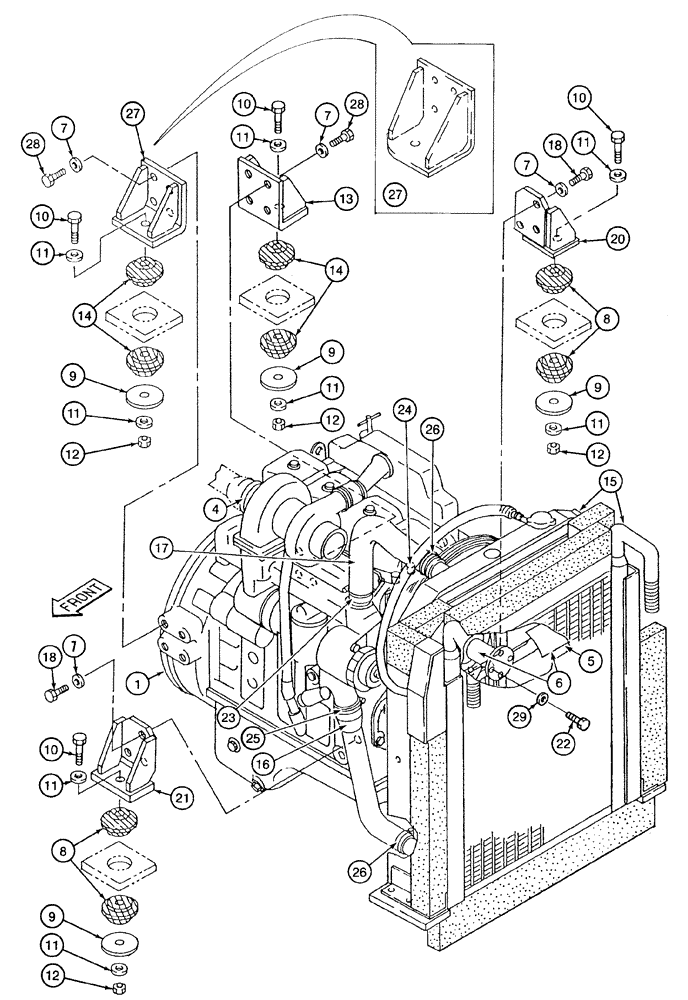

Схема запчастей Case 9020 - (2-02) - ENGINE MOUNTING, RADIATOR AND ADAPTING PARTS (02) - ENGINE
10
29
9
18
22
12
18
28
11
15
27
11
10
12
7
9
8
21
24
13
11
8
11
10
7
12
7
10
5
27
17
11
23
11
14
26
6
20
26
28
4
12
9
11
25
7
16
11
9
1
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1989157C1

ENGINE ASSEMBLY

ENGINE ASSY complete, 4TA-390, includes all parts except fan, air cleaner, muffler and exhaust pipe, for service order basic engine below parts list Figures 2-12 thru 2-44 and 3-8 thru 3-14

1шт.

1

1989188C1R

REMAN-REPLACEMENT EN

Remanufactured, For N.A. Only

1шт.

1

4TA-390C

CORE-REPLACEMENT ENG

Return Number, Complete, For N.A. Only

1шт.

2

1546461C1

SWITCH

oil pressure, 10 psi

1шт.

3

J924072

SWITCH

coolant temperature, includes nut, replaced by 1983238C1

1шт.

3

1983238C1

SENSOR,1/2" - 14

engine coolant temperature, includes nut

1шт.

4

A170467

CLAMP,72mm ID

includes hardware

1шт.

5

1998753C1

FAN

engine cooling not used, order fan 140977A1, spacer A184545, bolts 828-10070 and washers 896-11010

1шт.

5

140977A1

FAN

engine cooling, replaces 1998753C1

1шт.

6

A184546

SPACER

fan not used, order fan 140977A1, spacer A184545, bolts 828-10070 and washers 896-11010

1шт.

6

A184545

SPACER

fan, 49.5 mm long, replaces A184546

1шт.

7

150811A1

WASHER

flat, special, 12 mm

14шт.

8

151059A1

INSULATOR

rubber engine mounting, at radiator end

4шт.

9

150815A1

WASHER

special

4шт.

10

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

4шт.

11

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

flat, special

8шт.

12

829-1416

NUT,M16, Cl 10

4шт.

13

152208A1

ENGINE MOUNT

engine mounting, right hand rear

1шт.

14

150497A1

INSULATOR

rubber engine mounting, at pump end

4шт.

15

150212A1

RADIATOR

ASSEMBLY engine and hydraulic oil cooling, parts list Figure 2-10

1шт.

16

150240A1

RADIATOR HOSE,50.00 mm ID, 58.00 mm ID x 258.90 mm

formed, radiator

1шт.

17

157139A1

RADIATOR HOSE

Radiator to Top of engine

1шт.

18

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

6шт.

19

151885A1

DECAL

LABEL - coolant

1шт.

20

151285A1

ENGINE MOUNT

engine mounting

1шт.

21

151291A1

ENGINE MOUNT

engine mounting

1шт.

22

828-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

23

153051A1

COLLAR

wire-type

1шт.

24

150974A1

SENSOR

engine water temperature

1шт.

25

153055A1

CLAMP

wire-type

1шт.

26

153053A1

SPECIAL CLAMP

wire-type

2шт.

27

151295A1

ENGINE MOUNT

engine mounting

1шт.

28

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Full Thd

8шт.

29

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.
