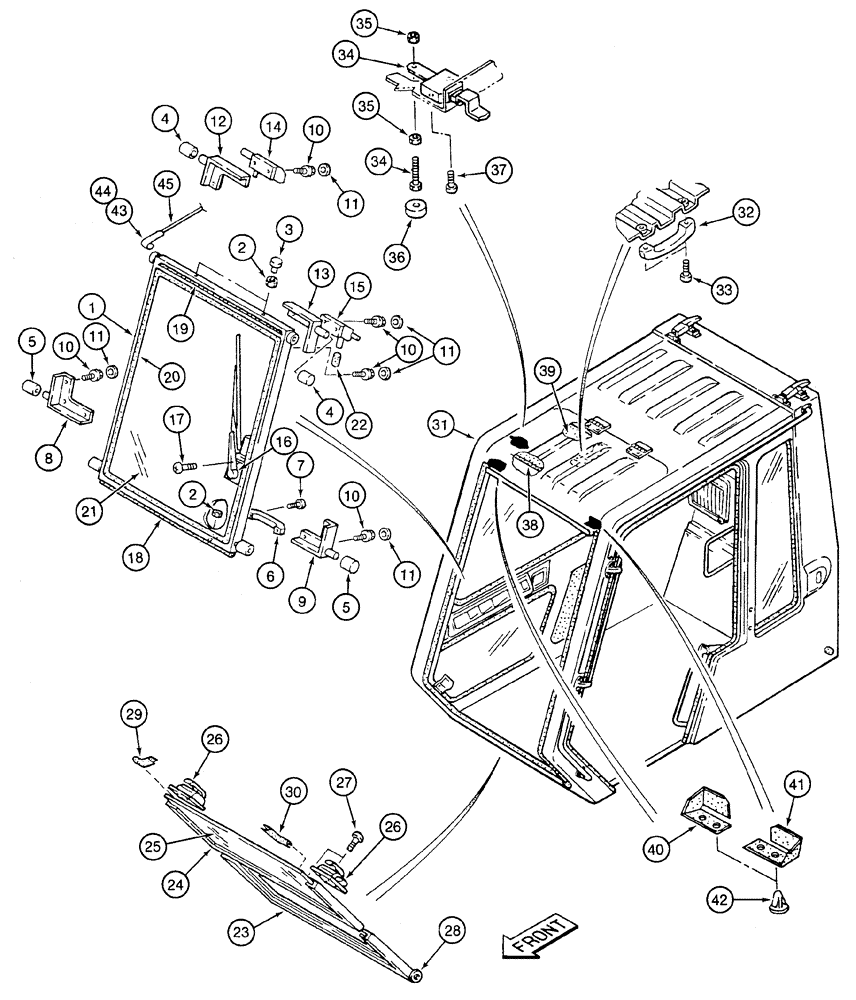

Запчасти Case 9020 (9-40) - CAB WINDSHIELD, LOWER FRONT WINDOW AND OVERHEAD DOOR (09) - CHASSIS

KHN1148

CAB

ASSEMBLY operators, includes all parts on Figures 9-36 thru 9-42, Includes: Ref. 1 - 45, Replaces 152792A1, KHN12000

1шт.

152646A1

WINDOW

ASSEMBLY cab, Includes: Ref. 1 - 22

1шт.

1

152427A1

WINDOW FRAME

1шт.

2

825-1405

NUT,M5, Cl 8

7шт.

3

152741A1

STOP

rubber

2шт.

4

152392A1

ROLLER

track, windshield top

2шт.

5

152390A1

ROLLER

track, windshield bottom

2шт.

6

151807A1

HANDLE

grab inside, cab windshield

2шт.

7

152458A1

SPECIAL BOLT

handle retaining

4шт.

8

152292A1

BRACKET

mounting, lower, right-hand

1шт.

9

152297A1

BRACKET

mounting, lower, left-hand

1шт.

10

152434A1

SPECIAL BOLT

roller bracket, mounting

12шт.

11

152530A1

CAP

COVER bolt

12шт.

12

152279A1

BRACKET

mounting, upper, right-hand

1шт.

13

152284A1

BRACKET

mounting, upper, left-hand

1шт.

14

152379A1

HANDLE

CATCH windshield, upper, right-hand

1шт.

15

152380A1

HANDLE

CATCH windshield, upper, left-hand

1шт.

16

152415A1

BRACKET

mounting

1шт.

17

152482A1

SPECIAL BOLT,Spcl

SCREW

6шт.

18

KHN0767

SEAL, GLASS

GUARD frame, lower, Replaces 152716A1

1шт.

19

152817A1

GASKET

GUARD trim frame, top

1шт.

20

152228A1

SEALING STRIP

, Serial Range: glass-frame

1шт.

21

152930A1

GLASS

windshield

1шт.

22

152376A1

CAP

GUARD catch pin

2шт.

KHN1040

WINDOW FRAME

ASSEMBLY lower, Includes: Ref. 23 - 30, Replaces 152703A1

1шт.

23

152523A1

WINDOW

FRAME lower, front window

1шт.

24

152527A1

SEALING STRIP

rubber

1шт.

25

KHN1298

CAB GLASS

window, lower, front window, Replaces 152561A1

1шт.

26

152547A1

CATCH

LATCH window

2шт.

27

152482A1

SPECIAL BOLT,Spcl

8шт.

28

152666A1

SPACER

window mounting

2шт.

29

152822A1

RUBBER

TRIM right-hand

1шт.

30

152823A1

RUBBER

TRIM left-hand

1шт.

152663A1

DOOR ASSY.

cab, overhead hinged, Includes: Ref. 31 - 42

1шт.

KHN0891

SCREW,M6 x 10mm

Hinge Mounting Hardware, Not Shown

4шт.

31

152657A1

ROOF

DOOR cab, overhead hinged

1шт.

32

151807A1

HANDLE

grab inside, overhead door

1шт.

33

152458A1

SPECIAL BOLT

handle retaining

2шт.

34

152413A1

LOCK

LATCH overhead door

2шт.

35

152472A1

SPECIAL NUT

special

4шт.

36

152528A1

CAP

GUARD latch bolt

2шт.

37

152540A1

SPECIAL BOLT

4шт.

38

152727A1

NOISE PROTECTION

PAD insulation, front

1шт.

39

152730A1

NOISE PROTECTION

PAD insulation, rear

1шт.

40

152826A1

RUBBER BLOCK

GUARD rubber, right-hand, front

1шт.

41

152828A1

RUBBER BLOCK

GUARD rubber, left-hand, front

1шт.

42

152830A1

CLIP

guard, retaining

4шт.

43

152260A1

HOOK

GUIDE track, windshield

2шт.

44

152697A1

RIVET

guide

4шт.

45

152814A1

SPRING

guide window, storage

2шт.
