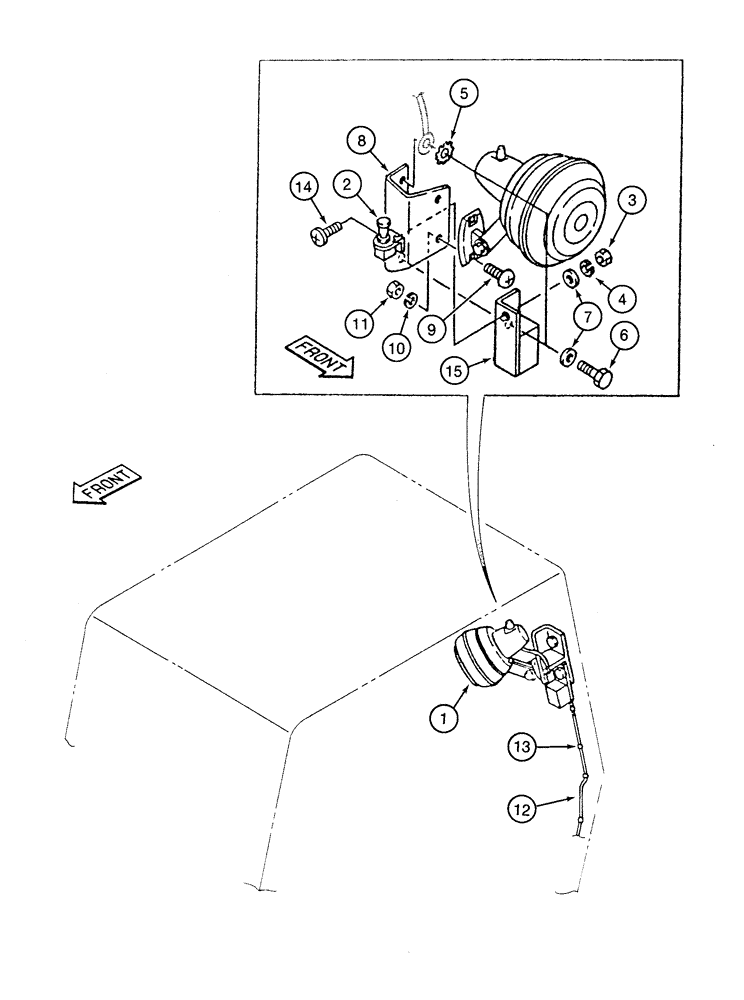

Запчасти Case 9020 (9-32) - CAB FAN AND MOUNTING (09) - CHASSIS

1

157689A1

FAN

ASSEMBLY cab, replaces fan assembly 152865A1, Includes: Ref. 2 - 4

1шт.

NSS

NOT SOLD SEPARAT

FAN cab, order fan assembly 157689A1

1шт.

2

152843A1

IGNITION SWITCH

cab fan

1шт.

3

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

4

892-11006

LOCK WASHER,M6

1шт.

5

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

6

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

7

153360A1

WASHER

flat, special

3шт.

8

150564A1

BRACKET

fan mounting

1шт.

9

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

10

892-11005

LOCK WASHER,M5

2шт.

11

825-1405

NUT,M5, Cl 8

2шт.

12

152854A1

HARNESS

cab fan

1шт.

13

150563A1

CLIP

wire

17шт.

14

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

1шт.

15

159338A1

RESISTOR

FILTER noise

1шт.

16

150067A1

MOUNTING CLIP

tie, not shown

1шт.
