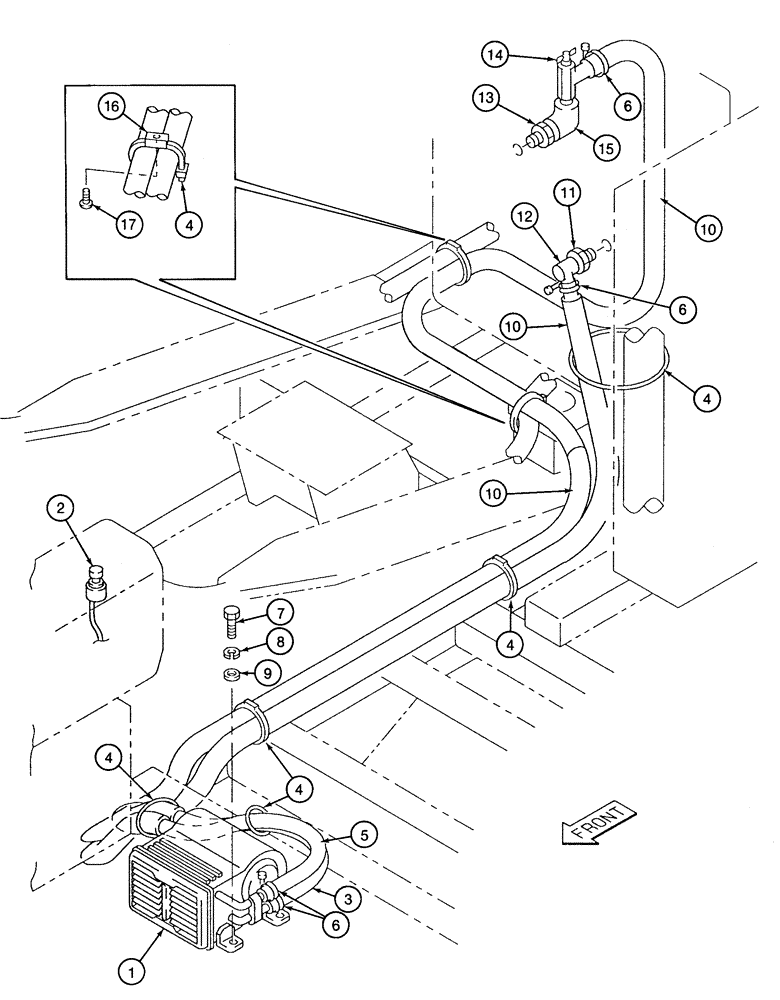

Запчасти Case 9020 (9-30) - HEATER AND HOSES (09) - CHASSIS

1

152815A1

HEATER,Assembly, Cab

cab, Includes: Ref. 1A

1шт.

Ref#1 - for fan blower (squirrel cage) only order: 166058A1 (RH) and/or 166059A1 (LH).

1шт.

1a

163619A1

MOTOR, ELECTRIC

cab heater blower, not shown

1шт.

2

151848A1

SWITCH

rotary

1шт.

3 speed resistor located inside heater = 163618A1.

1шт.

3

150813A1

HOSE

177-1/4 inch (4500 mm), long heater

1шт.

4

150496A1

MOUNTING CLIP

tie, 250 mm, long

1шт.

5

151259A1

HOSE,13.00 mm ID x 2300.00 mm

Heater

1шт.

6

150384A1

COLLAR

adjustable

4шт.

7

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

8

892-11010

LOCK WASHER,M10

4шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

4шт.

10

150443A1

TUBE

SLEEVE corrugated, 78-3/4 inch (2000 mm), long

3шт.

11

151588A1

BUSHING

ADAPTER straight, special heater return line at tank

1шт.

12

150383A1

ELBOW

90 degree, special heater return line at tank

1шт.

13

151588A1

BUSHING

ADAPTER straight, special heater supply hose at engine

1шт.

14

152664A1

VALVE

water, Serial Range: shut-off-heater

1шт.

15

152159A1

ELBOW

90 degree, special heater supply hose at engine

1шт.

16

150860A1

COLLAR

BRACKET tie strap, support was quantity 3

2шт.

17

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

Clamp bracket mounting, was quantity 3

2шт.
