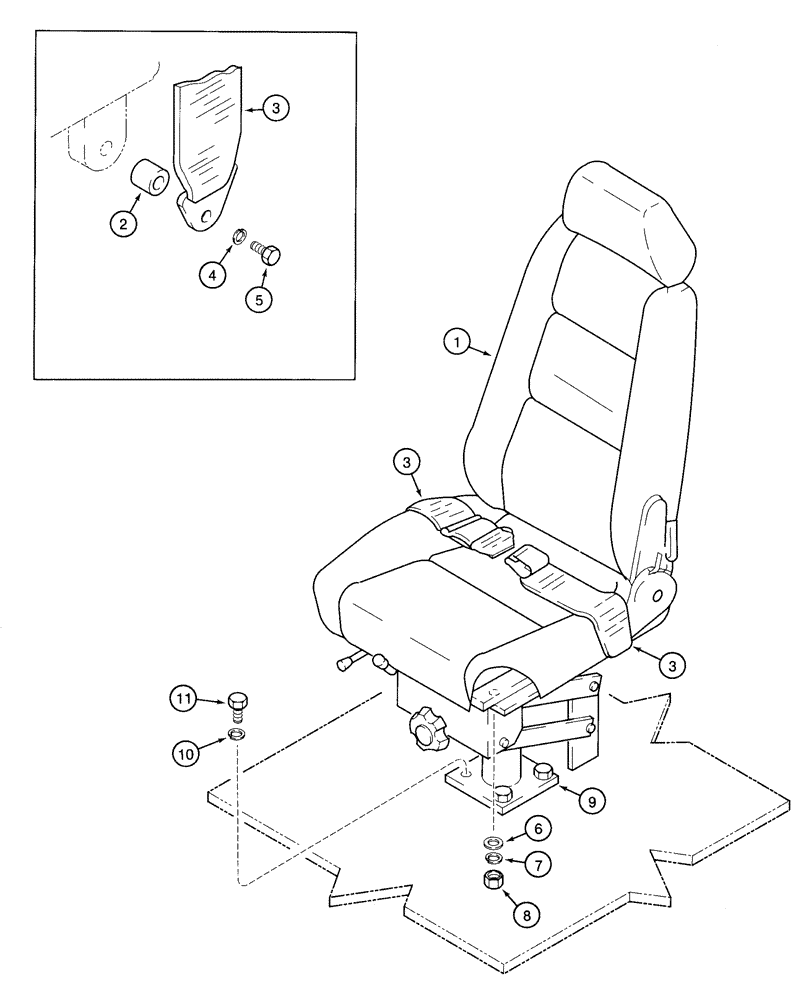

Запчасти Case 9020 (9-28) - SEAT, SEAT BELTS AND MOUNTING (09) - CHASSIS

1

153002A1

SEAT ASSY.

operators, Includes: Ref. 1A and 1B

1шт.

1a

156801A1

RAIL

slide, right-hand, not shown

1шт.

1b

156802A1

RAIL

slide, left-hand, not shown

1шт.

2

152755A1

SPACER

seat belt mounting

1шт.

3

151520A1

SAFETY BELT

Includes Ref. 4 and 5

1шт.

4

151526A1

SPRING WASHER

lock, special

2шт.

5

151523A1

BOLT,High Strength, Hex

hex special, seat belt mounting

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

7

892-11008

LOCK WASHER,8mm ID

4шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

9

152784A1

SUSPENSION

PEDESTAL seat

1шт.

10

892-11010

LOCK WASHER,M10

4шт.

11

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

123819A1

PACKAGE operators manual, 9020 not shown, Includes: Ref. 12 - 15

1шт.

12

124201A1

MANUAL safety, hydraulic excavators, not shown

1шт.

Order these manuals through C. D. S. See Figure 9-18 for manual retaining chain and fastener.

1шт.

13

321-4614

TAG

TAG do not operate, not shown

1шт.

14

R46463

SCREW,0.18" x 0.75"

POST manual retaining, 3/16 x 3/4 inch, not shown

1шт.

15

A180055

CAP ASSY.

INSERT Case Globe and Eagle, not shown

1шт.

123825A1

PACKAGE literature 9020, not shown, Includes: Ref. 16

1шт.

16

8-8940

HANDBOOK

MANUAL parts 9020, not shown

1шт.

Order these manuals through C. D. S. See Figure 9-18 for manual retaining chain and fastener.

1шт.
