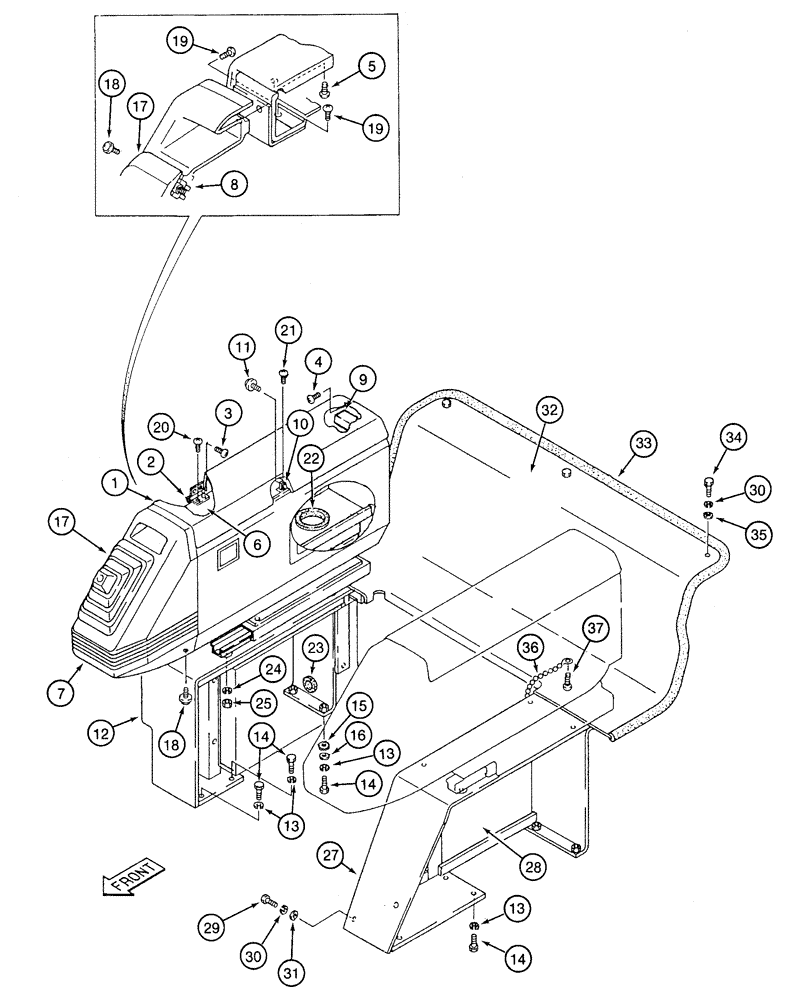

Запчасти Case 9020 (9-18) - RIGHT-HAND CONTROL CONSOLE, REAR AND SIDE COVERS (09) - CHASSIS

152190A1

COVER

ASSEMBLY right-hand, control console, Includes: Ref. 1 - 5

1шт.

1

152116A1

COVER

console, top

1шт.

2

151797A1

HINGE

console, top cover

2шт.

3

840-148

SCREW,Pan, M4 x 8mm, Cl 4.8

4шт.

4

152028A1

SCREW,Phil Truss Hd, M4 x 8mm

truss head, special

3шт.

5

152025A1

SCREW,Phil Truss Hd, M3 x 5mm

truss head, special

2шт.

6

153061A1

PANEL ASSY.

console

1шт.

7

151769A1

COVER

front, console

1шт.

8

151773A1

FLANGE

BRACKET flanged boot, retaining

1шт.

9

152018A1

COVER

toggle switch

1шт.

10

150517A1

CATCH

cover

1шт.

11

151668A1

SCREW,Phil Pan Hd, M3 x 8mm, W/ Wshr

special, pan head

2шт.

12

152124A1

BRACKET

BASE right-hand console, replaced by 158773A1

1шт.

12

158773A1

BRACKET

BASE right-hand console, replaces 152124A1

1шт.

13

892-11010

LOCK WASHER,M10

11шт.

14

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

11шт.

15

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

1шт.

17

152398A1

BOOT

dust, remote control

1шт.

18

151679A1

SCREW,Phil Pan Hd, M4 x 12mm, W/ Wshr

special

8шт.

19

151159A1

SCREW,Truss Hd, M4 x 12mm

special

7шт.

20

840-148

SCREW,Pan, M4 x 8mm, Cl 4.8

4шт.

21

843-1316

SCREW,Flat , M3 x 16mm, Cl 4.8

machine, flat Phillips, 3 - 0.5 x 16 mm

1шт.

22

150826A1

GROMMET

rubber, large

1шт.

23

150520A1

GROMMET

rubber, small

1шт.

24

892-11008

LOCK WASHER,8mm ID

4шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

27

152833A1

BRACKET

BASE left-hand console

1шт.

28

152835A1

COVER

side, left-hand console

1шт.

29

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

6шт.

30

892-11006

LOCK WASHER,M6

13шт.

31

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

32

152015A1

REAR COVER

rear

1шт.

33

152395A1

TEE

TRIM edge, 74-3/8 inch (1889 mm) long, rear cover

1шт.

34

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

Full threads

7шт.

35

150529A1

WASHER

flat, 6 mm, special

7шт.

36

151645A1

CHAIN (AG)

manual retaining

1шт.

37

151677A1

SCREW,Phil Pan Hd, M4 x 8mm, W/ Wshr

special, chain retaining

1шт.
