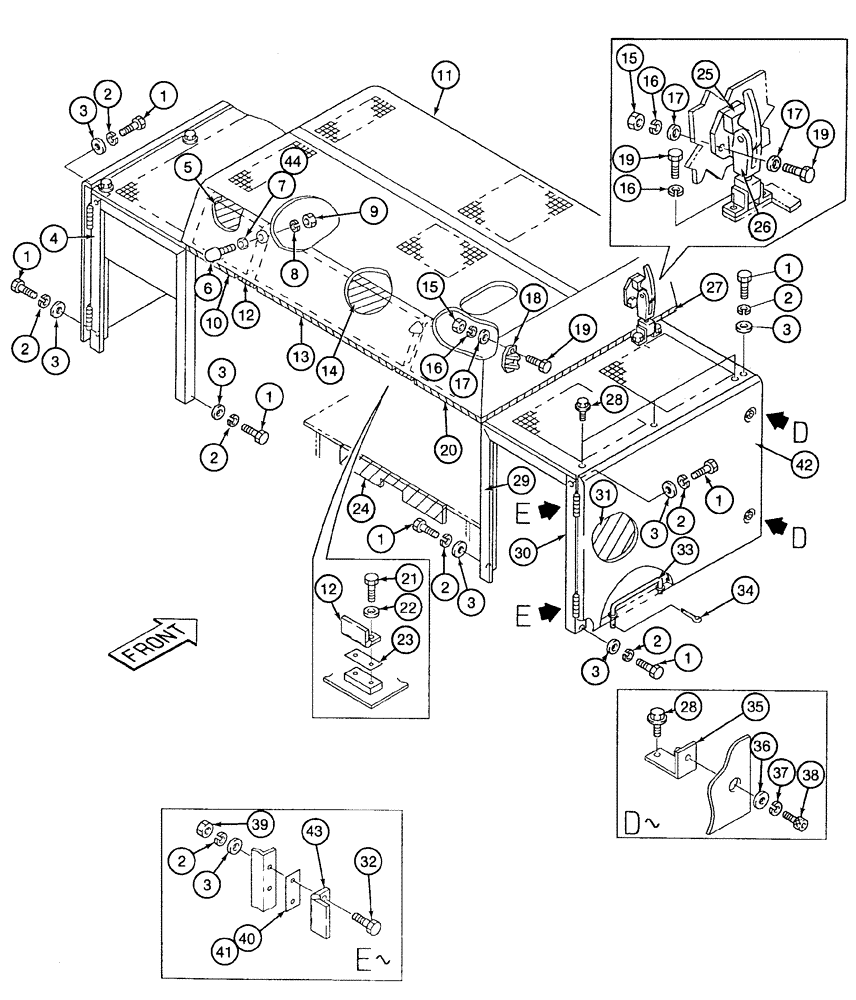

Запчасти Case 9020 (9-16) - UPPER STRUCTURE, FRAME, PANELS AND INSULATION PADS (09) - CHASSIS

1

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

10шт.

2

892-11012

LOCK WASHER,M12

18шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

18шт.

4

150039A1

FRAME ASSY

rear, left-hand, cover

1шт.

5

150343A1

INSULATOR

PAD insulation

1шт.

6

151108A1

STOP

BUMPER rubber, machines with PIN, Serial Range: prior-4

2шт.

6

158159A1

BUMPER rubber, machines with PIN 4 and after

2шт.

7

152887A1

SPACER

rubber bumper, machines with PIN, Serial Range: prior-4

2шт.

8

892-11010

LOCK WASHER,M10

Machines with PIN prior to 4

2шт.

9

153604A1

NUT

hex, special bumper retaining, machines with PIN, Serial Range: prior-4

2шт.

10

151378A1

CUSHION ASSY.

sponge

1шт.

11

158158A1

HOOD

engine cover, Includes: Ref. 12

1шт.

12

152494A1

HINGE

hood

2шт.

13

151167A1

CUSHION ASSY.

sponge

1шт.

14

150334A1

INSULATOR

PAD insulation, machines with PIN, Serial Range: prior-4

1шт.

14

158227A1

INSULATOR

PAD insulation, machines with PIN 4 and after

1шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

16

892-11008

LOCK WASHER,8mm ID

6шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

18

150856A1

STOP LOCK

top cover

1шт.

20

151385A1

CUSHION ASSY.

sponge

1шт.

21

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

4шт.

22

150811A1

WASHER

flat, special, 12 mm

4шт.

23

152186A1

BLOCK

SHIM 2.5 mm, thick

1шт.

24

150178A1

SEAL

PAD insulation

1шт.

25

150785A1

STOP LOCK

LATCH hood assembly

1шт.

26

150790A1

LATCH

hood

1шт.

27

150149A1

CUSHION ASSY.

sponge

1шт.

28

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

special, access cover

8шт.

29

150035A1

FRAME ASSY

cover, right-hand, rear, inner

1шт.

30

150029A1

FRAME ASSY

cover, right-hand, rear, outer

1шт.

31

150263A1

INSULATOR

PAD insulation

1шт.

32

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Full Thd

4шт.

33

151791A1

STAY

ROD retaining cover

1шт.

34

130003

COTTER PIN,3mm OD x 30mm OAL

Replaces 156467A1

1шт.

35

151763A1

BRACKET

90 degree, retaining side panel retaining

2шт.

36

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

2шт.

37

892-11010

LOCK WASHER,M10

2шт.

38

862-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

hex socket, 10 - 1.5 x 20 mm, class 12.9

2шт.

39

829-1412

NUT,M12, Cl 10.9

4шт.

40

152186A1

BLOCK

SHIM 2.5 mm, thick

1шт.

41

152651A1

ADJUSTING PLATE

SHIM 0.05 inch (1.27 mm), thick

1шт.

42

150257A1

DOOR

side, right-hand, rear, Includes: Ref. 43

1шт.

43

151104A1

HINGE

door

2шт.

44

829-1412

NUT,M12, Cl 10.9

Machines with PIN 4 and after

1шт.

19

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.
