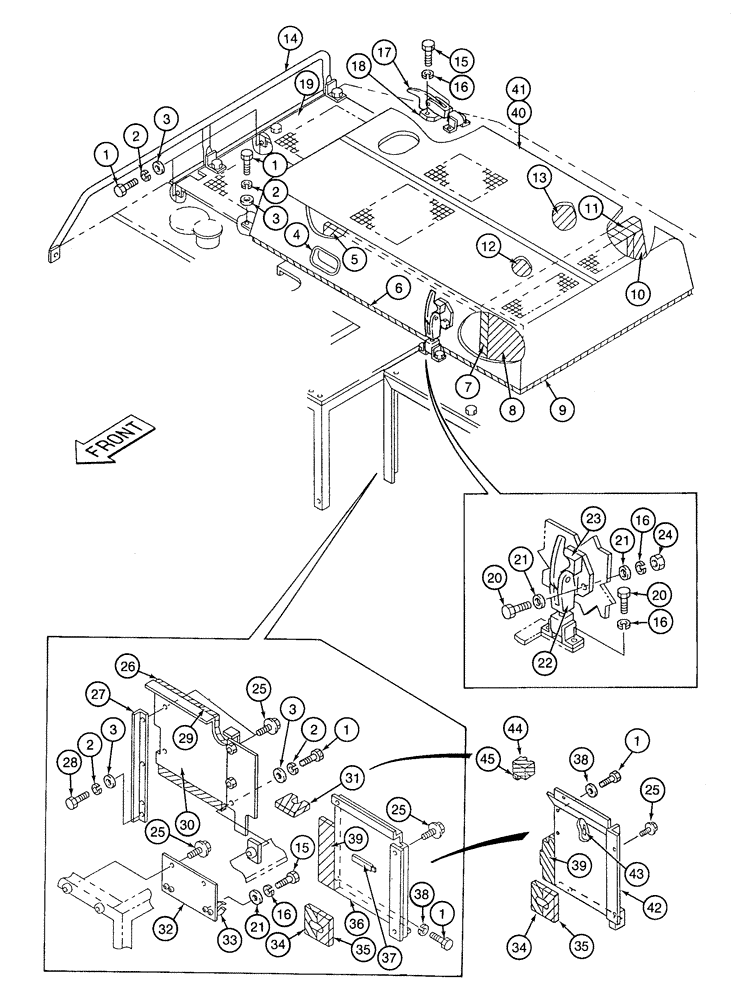

Запчасти Case 9020 (9-12) - UPPER STRUCTURE, HOOD AND INSULATION PADS (09) - CHASSIS

1

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

7шт.

2

892-11012

LOCK WASHER,M12

10шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

4

150484A1

HANDLE

recessed

1шт.

5

150332A1

INSULATOR

PAD

1шт.

6

151571A1

CUSHION ASSY.

sponge

1шт.

7

150349A1

SEAL

PAD insulation

1шт.

8

150338A1

INSULATOR

PAD

1шт.

150149A1

CUSHION ASSY.

sponge

1шт.

10

150353A1

SEAL

PAD insulation

1шт.

11

157578A1

SEAL

PAD insulation, machines with PIN, Serial Range: prior-4

1шт.

11

157578A1

SEAL

PAD insulation, machines with PIN 4 and after

1шт.

12

150141A1

INSULATOR

PAD

1шт.

13

150137A1

INSULATOR

PAD machines with PIN, Serial Range: prior-4

1шт.

13

158227A1

INSULATOR

PAD machines with PIN 4 and after

1шт.

14

150091A1

STAY

HANDRAIL upper structure

1шт.

15

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

Full Thd

8шт.

16

892-11008

LOCK WASHER,8mm ID

12шт.

17

150854A1

FASTENER

LATCH top cover

1шт.

18

150856A1

STOP LOCK

top cover

1шт.

19

150226A1

REAR COVER

rear, right-hand

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

22

152423A1

LATCH

CATCH hood

1шт.

23

150785A1

STOP LOCK

LATCH hood assembly

1шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

25

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

special, access cover

10шт.

26

150357A1

SEAL

PAD insulation

1шт.

27

150329A1

FRAME ASSY

cover

1шт.

28

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Full Thd

4шт.

29

150358A1

SEAL

PAD insulation

1шт.

30

150323A1

COVER

PANEL engine side

1шт.

31

150365A1

SEAL

PAD insulation, machines with PIN, Serial Range: prior-187

1шт.

32

150230A1

BRACKET

grease gun mounting

1шт.

33

152772A1

HOLDER

grease gun

2шт.

34

150213A1

SEAL

PAD insulation

1шт.

35

150219A1

SEAL

PAD insulation

1шт.

36

150319A1

COVER

PANEL engine side, machines with PIN prior to 187, Includes: Ref. 7

1шт.

37

150486A1

CLIP

harness

1шт.

38

150811A1

WASHER

flat, special, 12 mm

2шт.

39

150362A1

SEAL

PAD insulation, machines with PIN, Serial Range: prior-187

1шт.

39

158735A1

SEAL

PAD insulation, machines with PIN 187 and after

1шт.

40

158158A1

HOOD

engine cover, Includes: Ref. 41

1шт.

41

152494A1

HINGE

hood

2шт.

42

158401A1

COVER

PANEL engine side, machines with PIN 187 and after, Includes: Ref. 43

1шт.

43

150486A1

CLIP

harness, machines with PIN 187 and after

1шт.

44

158734A1

SEAL

cushion, machines with PIN 187 and after

1шт.

45

158771A1

SEAL

cushion, machines with PIN 187 and after

1шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.
