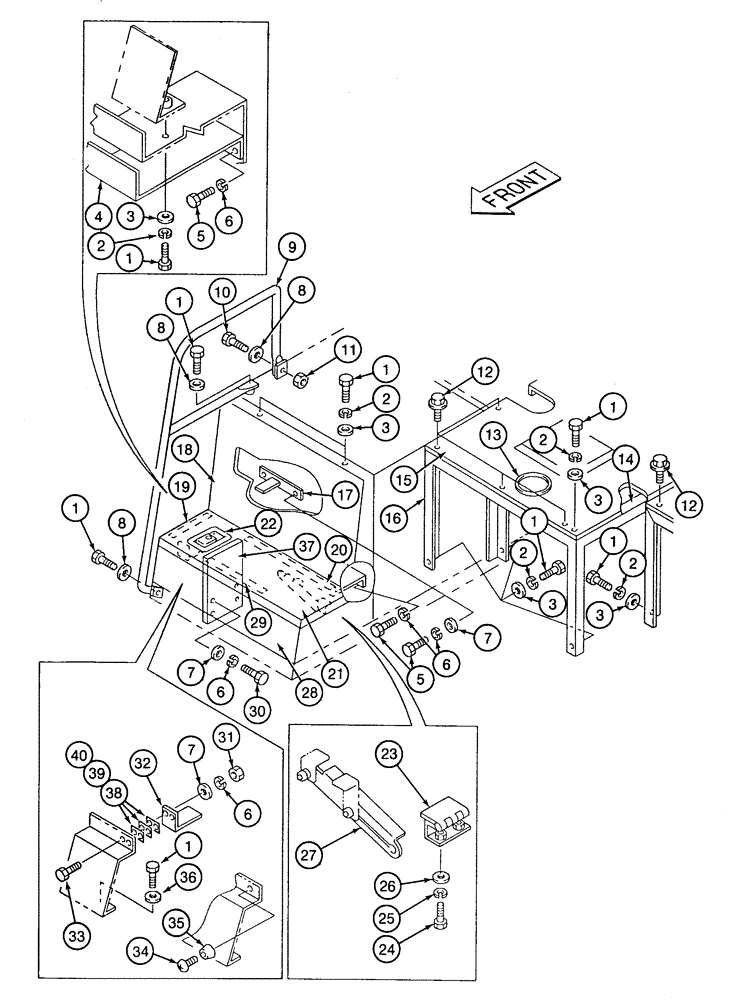

Запчасти Case 9020 (9-10) - UPPER STRUCTURE, TOP AND FRONT COVERS (09) - CHASSIS

1

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

12шт.

2

892-11012

LOCK WASHER,M12

8шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

4

150250A1

BRACKET

cover support

1шт.

5

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

Full Thd

6шт.

6

892-11008

LOCK WASHER,8mm ID

10шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

8

150811A1

WASHER

flat, special, 12 mm

3шт.

9

150087A1

STAY

HANDRAIL upper structure

1шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

Full Thd

1шт.

11

829-1412

NUT,M12, Cl 10.9

1шт.

12

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

special, access cover

12шт.

13

152804A1

GROMMET

rubber

1шт.

14

150315A1

FRAME ASSY

front cover, left-hand, machines with PIN, Serial Range: prior-187

1шт.

14

158400A1

FRAME

front cover, left-hand, machines with PIN 187 and after

1шт.

15

150064A1

COVER

front center

1шт.

16

150052A1

FRAME ASSY

front cover, center

1шт.

17

152293A1

BRACKET

storage

1шт.

18

150025A1

COVER

front, right-hand

1шт.

19

150393A1

CUSHION ASSY.

PAD rubber, 130 mm, long

1шт.

20

151790A1

CUSHION ASSY.

PAD rubber, 600 mm, long

1шт.

150016A1

COVER

ASSEMBLY front access, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

COVER front access

1шт.

22

150938A1

LOCK

LATCH recessed

1шт.

23

152633A1

HINGE

cover

2шт.

24

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

Full threads

4шт.

25

892-11006

LOCK WASHER,M6

4шт.

26

153360A1

WASHER

flat, special

4шт.

27

151467A1

STAY

SLIDE cover rail

1шт.

28

150275A1

COVER

front, lower

1шт.

29

150393A1

CUSHION ASSY.

PAD rubber, 130 mm, long

1шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

32

152739A1

BRACKET

support

1шт.

33

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Full threads

2шт.

34

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

1шт.

35

152857A1

CUSHION ASSY.

BUMPER rubber, front cover

1шт.

36

151161A1

WASHER

special

2шт.

37

153021A1

BRACKET

support

1шт.

38

152719A1

SHIM

0.13 inch (3.30 mm) thick, machines with PIN 4 thru 186

1шт.

39

158749A1

SHIM

PLATE 0.05 inch (1.2 mm) thick, machines with PIN 4 and after

1шт.

40

158750A1

SHIM

PLATE 0.09 inch (2.3 mm) thick, machines with PIN 4 and after

1шт.

30

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
