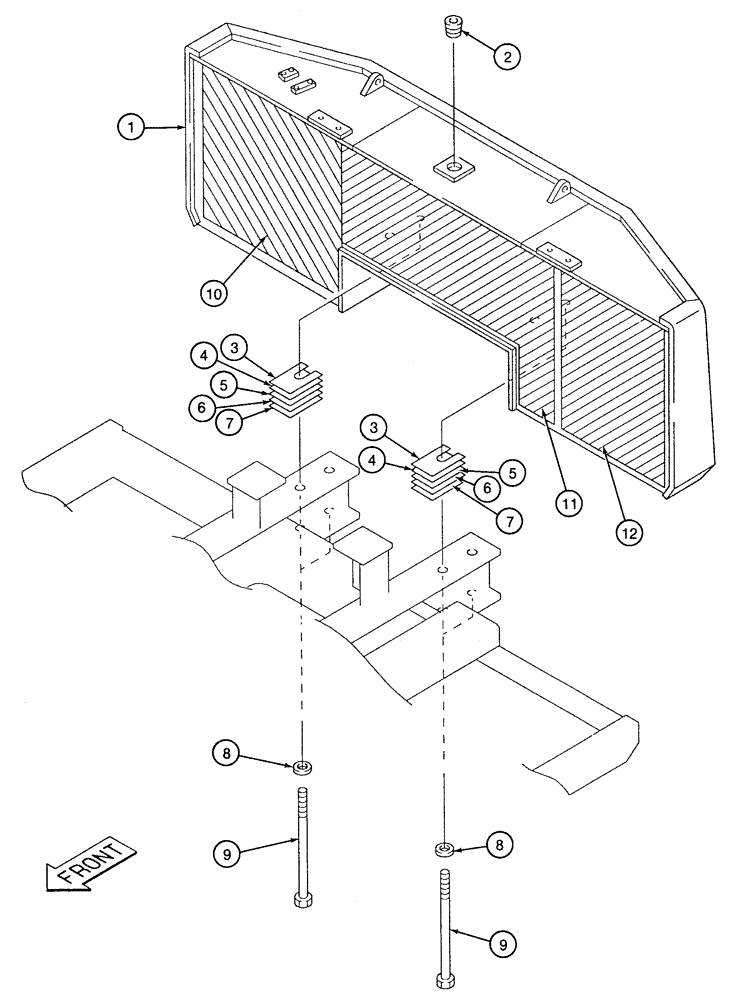

Запчасти Case 9020 (9-08) - COUNTERWEIGHT (09) - CHASSIS
6
12
9
5
8
3
1
9
7
8
3
6
10
4
5
7
2
11
4
№
Артикул
Название
Примечание
Количество
1
157106A1
WEIGHT
SPARE PART COUNTER 8886 pound (4031 kg)
1шт.
2
150139A1
PLUG
special rubber
1шт.
3
151040A1
SHIM
counterweight, 0.03 inch thick
1шт.
4
151043A1
SHIM
counterweight, 0.05 inch thick
1шт.
5
151045A1
SHIM
counterweight, 0.09 inch thick
1шт.
6
151048A1
SHIM
counterweight, 0.18 inch thick
1шт.
7
151245A1
SHIM
counterweight, 0.24 inch thick
1шт.
8
150189A1
WASHER
flat, special, 27 mm
4шт.
9
157107A1
SPECIAL BOLT
hex, special
4шт.
10
157108A1
SEAL
PAD counterweight mounting, right-hand
1шт.
11
157109A1
SEAL
PAD counterweight mounting, center
1шт.
12
157110A1
SEAL
PAD counterweight mounting, left-hand
1шт.
Выбрано товаров: 12
