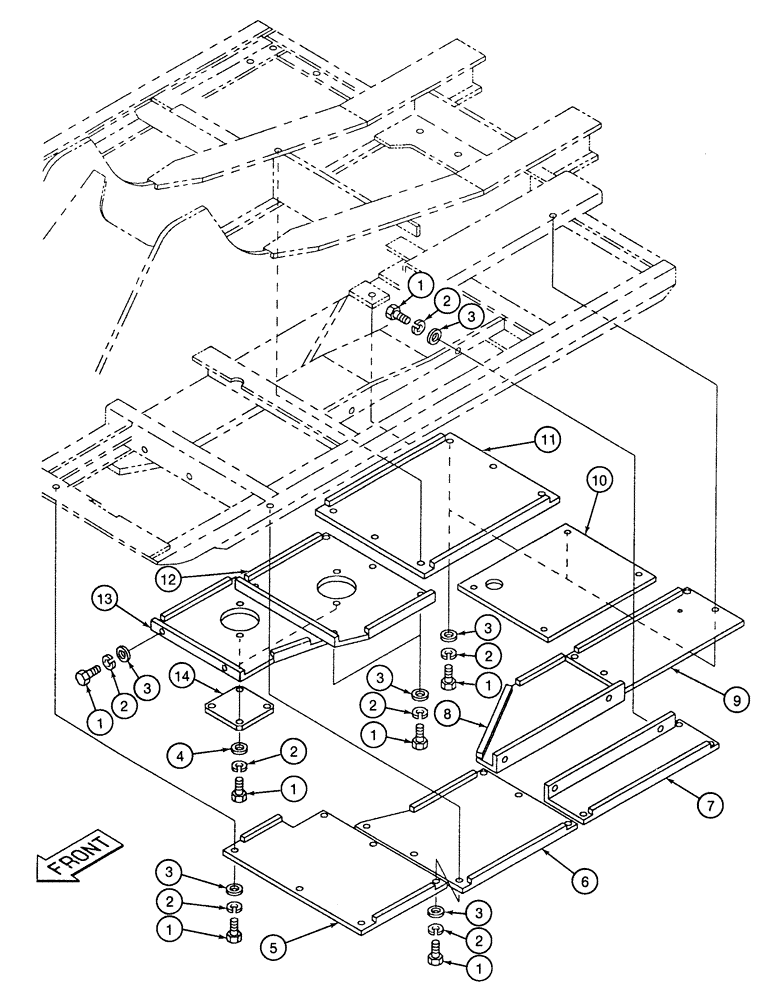

Запчасти Case 9020 (9-06) - TURNTABLE GUARDS (09) - CHASSIS

1

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Full Thd

39шт.

2

892-11012

LOCK WASHER,M12

39шт.

3

150900A1

WASHER

flat, 12 mm

31шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

5

157111A1

COVER

GUARD turntable, left-hand, front

1шт.

6

157112A1

COVER

GUARD turntable, left-hand, center

1шт.

7

157113A1

COVER

GUARD turntable, left-hand, rectangle, outer

1шт.

8

157114A1

COVER

GUARD turntable, left-hand, angled, inner

1шт.

9

157115A1

COVER

GUARD turntable, left-hand, rear

1шт.

10

158077A1

GUARD

GUARD turntable, rear center, replaces guard 157116A1

1шт.

11

157117A1

COVER

GUARD turntable, right-hand, rear

1шт.

12

157118A1

COVER

GUARD turntable, right-hand, center

1шт.

13

157119A1

COVER

GUARD turntable, right-hand, front

1шт.

14

150222A1

COVER

access turntable, replaces cover 150716A1

2шт.
