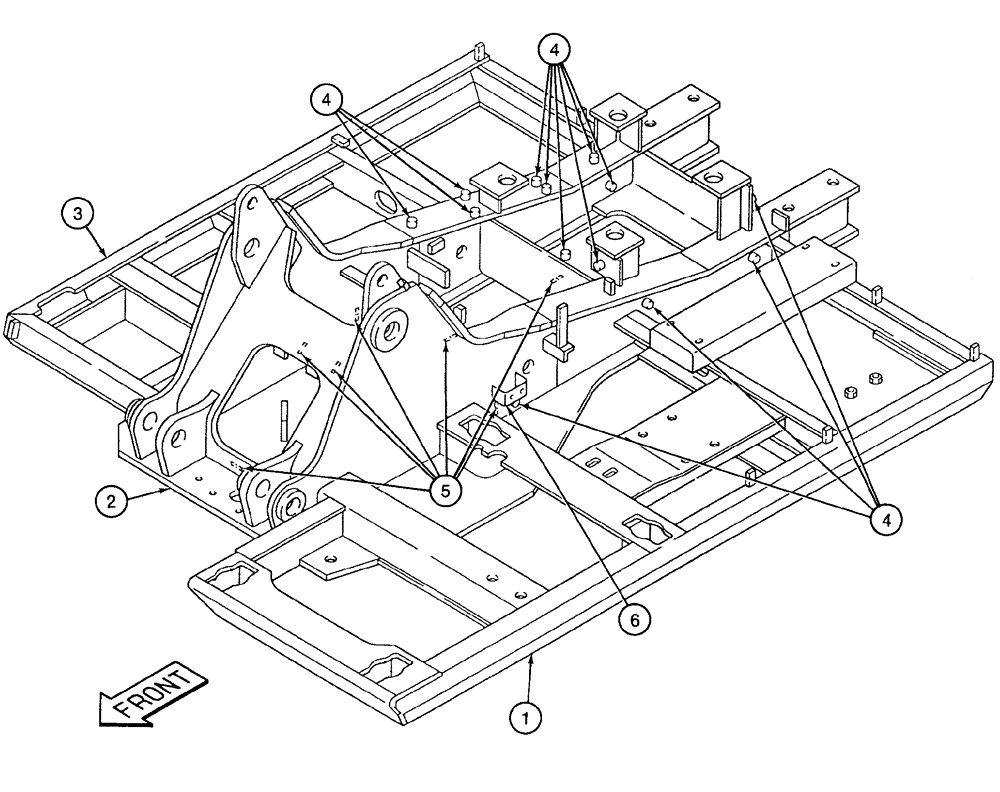

Запчасти Case 9020 (9-04) - TURNTABLE (09) - CHASSIS

158682A1

FRAME

PLATFORM turntable, replaces Refs. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

PLATFORM turntable, left hand, must order 158682A1

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME boom mounting, must order 158682A1

1шт.

3

NSS

NOT SOLD SEPARAT

PLATFORM turntable, right hand, must order 158682A1

1шт.

4

150508A1

BOSS

BLOCK retaining, tube clamp (weld-on)

14шт.

5

150486A1

CLIP

harness

7шт.

6

150835A1

BRACKET

mounting, weld on

1шт.

7

157995A1

DECAL

PLATE Product Identification Number welded on, not shown, parts list figure 9-70

1шт.

165182A1

PLATE

FRAME side section

1шт.
