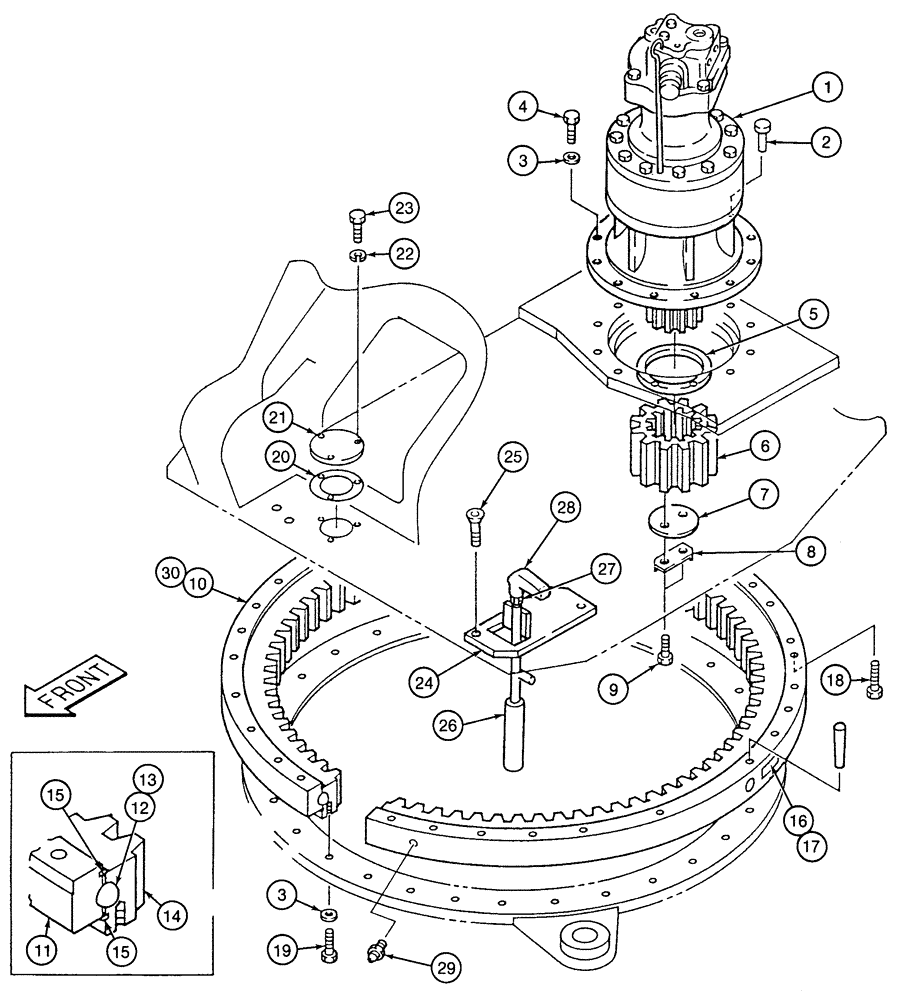

Запчасти Case 9020 (9-02) - TURNTABLE BEARING (09) - CHASSIS

1

150000A1

MOTOR, HYDRAULIC

DRIVE ASSEMBLY swing, parts list Figures 8-50 thru 8-56

1шт.

2

150317A1

HEADED PIN,24mm OD x 90mm L

alignment

1шт.

3

150996A1

WASHER

special

47шт.

4

828-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9

11шт.

5

150312A1

SPACER

pinion gear

1шт.

6

150004A1

PINION

GEAR

1шт.

7

150018A1

PLATE

end

1шт.

8

150002A1

LOCKING PLATE

RETAINER plate

1шт.

9

31141R1

BOLT,Hex, M16 x 2 x 35mm, Grade 10.9

Hex, M16 x 35, 10.9, Full Thd

2шт.

10

162112A1

TABLE

BEARING ASSEMBLY turntable, replaces bearing assembly 150997A1, Includes: Ref. 11 - 17

1шт.

11

151005A1

RACE

outer, bearing

1шт.

12

150980A1

BEARING, BALL,28.57mm OD

ball, turntable

116шт.

13

150982A1

SPACER

nylon, ball bearing

116шт.

14

151000A1

RACE

inner, bearing

1шт.

15

150971A1

SEALING RING

RING bearing

2шт.

16

NSS

NOT SOLD SEPARAT

PLATE name

1шт.

17

NSS

NOT SOLD SEPARAT

RIVET plate mounting

4шт.

18

828-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

32шт.

19

828-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9

hex, 20 - 2.5 x 65 mm, class 10.9

36шт.

20

150370A1

PACKING

GASKET access cover

1шт.

21

150368A1

PLATE

COVER access, turntable bearing

1шт.

22

892-10008

LOCK WASHER,M8

3шт.

23

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

3шт.

24

150020A1

BRACKET

swing lock pin

1шт.

25

150403A1

SCREW,Spcl, Flat Hd Csk, M10 x 20mm

hex socket, flat head, 10 - 1.5 x 20 mm

2шт.

26

150375A1

PIN

swing lock

1шт.

27

150373A1

NUT

hex, 12 mm - 1.25, class 12.9 jam

1шт.

28

150347A1

KNOB

control, swing lock

1шт.

29

153630A1

LUBE NIPPLE

FITTING grease, straight

3шт.

30

150345A1

SEALANT

turntable bearing

1шт.
