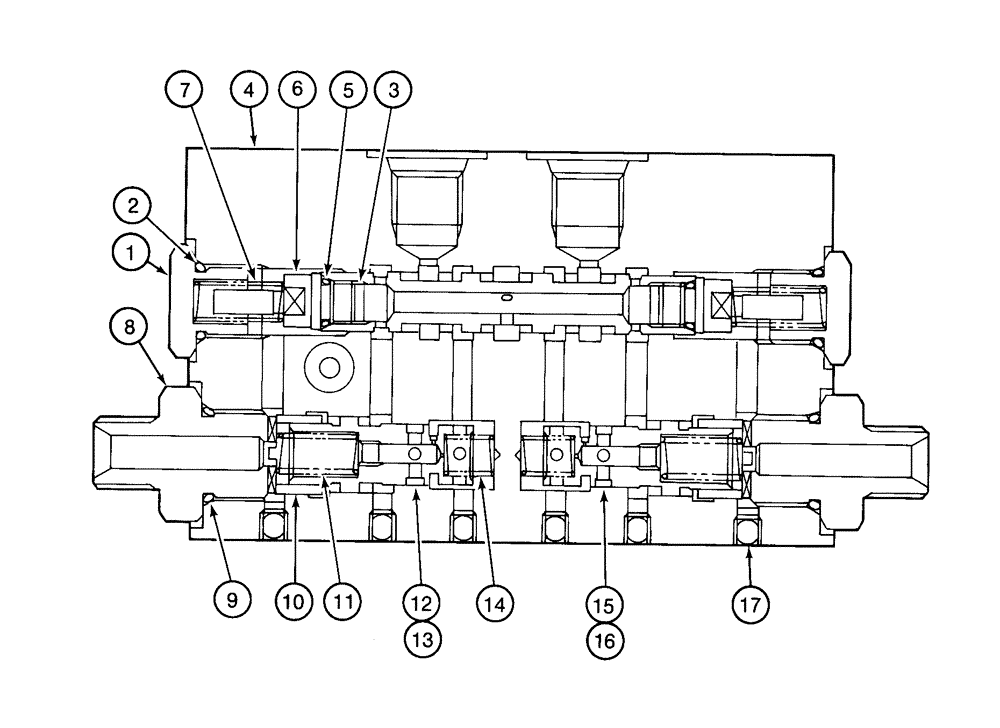

Запчасти Case 9020 (8-102) - CUSHION VALVE (08) - HYDRAULICS

158009A1

VALVE, CUSHION

ASSEMBLY, Includes: Ref. 1 - 17

1шт.

1

153108A1

RETAINER

PLUG spool end

4шт.

2

154474A1

O-RING

plug

4шт.

3

NSS

NOT SOLD SEPARAT

SPOOL valve

2шт.

4

NSS

NOT SOLD SEPARAT

HOUSING valve

1шт.

5

154454A1

O-RING

valve

4шт.

6

153106A1

COLLAR

GUIDE spring

4шт.

7

153107A1

SPRING

compression

4шт.

8

153120A1

HYD CONNECTOR

ADAPTER straight

4шт.

9

154486A1

O-RING

adapter

4шт.

10

NSS

NOT SOLD SEPARAT

GUIDE secondary spool

4шт.

11

153114A1

SPRING

compression

4шт.

12

NSS

NOT SOLD SEPARAT

SPOOL secondary, arm cushioning

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL secondary, boom cushioning

1шт.

14

153109A1

SPRING

compression

4шт.

15

NSS

NOT SOLD SEPARAT

SPOOL secondary, arm cushioning

1шт.

16

NSS

NOT SOLD SEPARAT

SPOOL secondary, boom cushioning

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG port

24шт.
