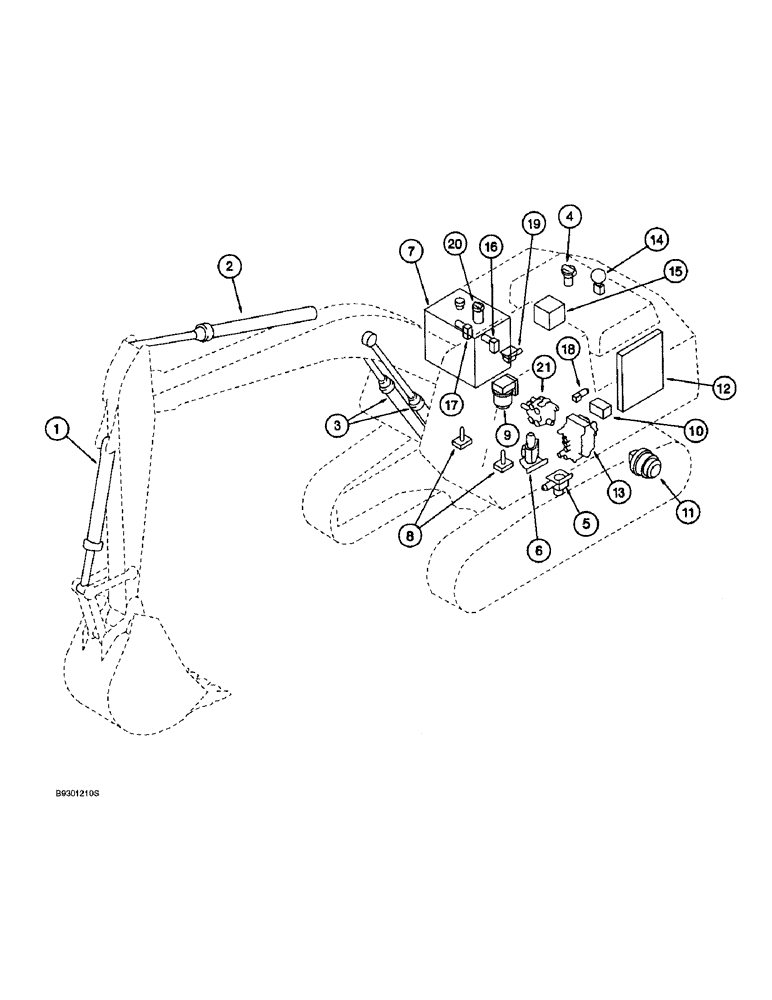

Запчасти Case 9020 (1-10) - PICTORIAL INDEX, BASIC HYDRAULIC COMPONENTS (00) - PICTORIAL INDEX

1

Bucket Cylinder, Figure 8-98 -

1шт.

2

Arm Cylinder, Figure 8-96 -

1шт.

3

Boom Cylinders, Figure 8-94 -

1шт.

4

Pilot Line Filter, Figure 8-38-

1шт.

5

Free Swing Solenoid Valve, Figure 8-53

1шт.

6

Boom Holding Valve, Figure 8-84 -

1шт.

7

Hydraulic Reservoir, Figure 8-2 -

1шт.

8

Manually Operated Control Valves, Pages 8-53, 8-59

1шт.

9

Swing Motor, Figures 8-62, 8-64 -

1шт.

10

Cushion Valve, Figure 8-102 -

1шт.

11

Track Drive Motor, Figures 6-2, 6-6 -

1шт.

12

Oil Cooler, Figure 2-10-

1шт.

13

Main Control Valve, Figures 8-70, 8-81

1шт.

14

Pilot System Accumulator, Figure 8-38

1шт.

15

Hydraulic Pump, Figures 8-4, 8-16, 8-25

1шт.

16

Two-Speed Travel Control Valve, Figure 8-57

1шт.

17

Swing Brake Release Valve, Page 8-57

1шт.

18

Cushion On/Off Solenoid Valve, Figure 8-55

1шт.

19

Control Shutoff Valve, Figure 8-50-

1шт.

20

Pilot Return Filter, Page 8-11 -

1шт.
