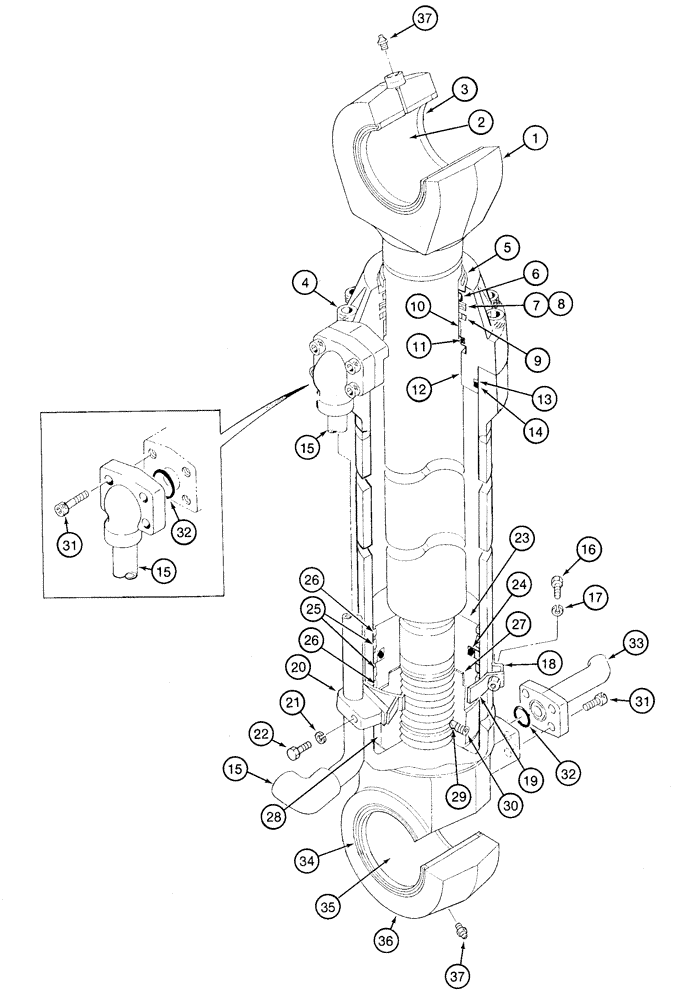

Запчасти Case 9020 (8-098) - BUCKET CYLINDER (08) - HYDRAULICS

150017A1

CYLINDER

ASSEMBLY 4-3/8 (110) ID x 39 - 1/4 inch (997 mm) stroke, Includes: Ref. 1 - 37

1шт.

155898A1

ROD ASSY.

cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD cylinder

1шт.

2

155434A1

BUSHING

mounting pin

1шт.

3

155156A1

RING

WIPER mounting pin

2шт.

4

863-18055

HEX SOC SCREW,M18 x 55mm, Cl 12.9

hex socket, 18 - 2.5 x 55 mm, class 12.9

8шт.

5

158031A1

WIPER

piston rod

1шт.

Part of Seal Kit part number 158050A1

1шт.

6

155349A1

SEALING RING

piston rod

1шт.

Part of Seal Kit part number 158050A1

1шт.

7

155231A1

BACK-UP RING

1шт.

Part of Seal Kit part number 158050A1

1шт.

8

155130A1

RING

SEAL U-cup

1шт.

Part of Seal Kit part number 158050A1

1шт.

9

155134A1

SCRAPER RING

buffer

1шт.

Part of Seal Kit part number 158050A1

1шт.

155899A1

GLAND

ASSEMBLY cylinder, Includes: Ref. 10 - 12

1шт.

10

155433A1

BUSHING

gland

1шт.

11

155699A1

RING, SNAP

RING SNAP

1шт.

12

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

13

155252A1

RING

backup

1шт.

Part of Seal Kit part number 158050A1

1шт.

14

154733A1

O-RING

tube

1шт.

Part of Seal Kit part number 158050A1

1шт.

15

155549A1

TUBE

gland end

1шт.

16

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

hex, special

2шт.

17

156227A1

WASHER

lock, special

2шт.

18

156400A1

CLAMP

band

1шт.

19

156399A1

CLAMP

band

1шт.

20

155717A1

COLLAR

tube, special

1шт.

21

892-11012

LOCK WASHER,M12

1шт.

22

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

1шт.

23

155984A1

PISTON

cylinder

1шт.

24

155310A1

SEALING RING

piston

1шт.

Part of Seal Kit part number 158050A1

1шт.

25

155350A1

RING

wear piston, inner

2шт.

Part of Seal Kit part number 158050A1

1шт.

26

155351A1

RING

wear piston, outer

2шт.

Part of Seal Kit part number 158050A1

1шт.

27

155742A1

WASHER

special

1шт.

Part of Seal Kit part number 158050A1

1шт.

28

156218A1

NUT

special

1шт.

29

155977A1

BALL

steel

1шт.

30

156223A1

SET SCREW

set

1шт.

31

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

32

154528A1

O-RING

tube

2шт.

33

155900A1

TUBE

cylinder tube end

1шт.

34

155159A1

RING

WIPER mounting pin

2шт.

155897A1

HYD TUBE

cylinder, Includes: Ref. 35 and 36

1шт.

35

155435A1

BUSHING

mounting pin

1шт.

36

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

37

153630A1

LUBE NIPPLE

FITTING grease, straight

2шт.

158050A1

SEAL KIT

seal includes: Refs. 5, 6, 7, 8, 9, 13, 14, 24, 25, 26 and 27

1шт.
