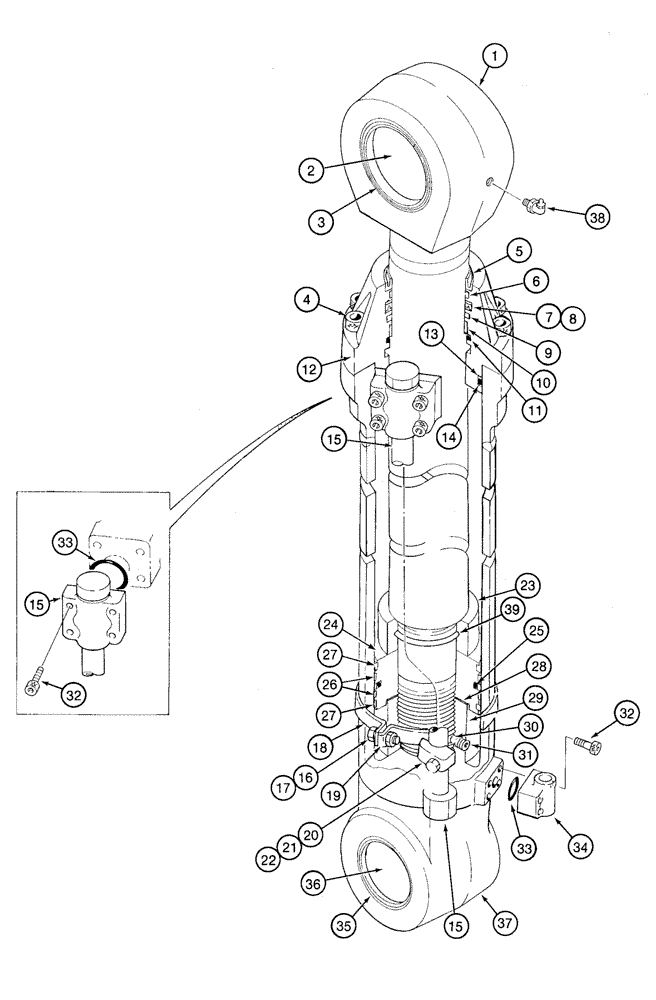

Запчасти Case 9020 (8-096) - ARM CYLINDER (08) - HYDRAULICS

150013A1

CYLINDER

SPARE PART ASSEMBLY 4-15/16 (125 mm) ID x 57 inch (1448 mm) stroke, Includes: Ref. 1 - 39

1шт.

158226A1

ROD ASSY.

cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD cylinder

1шт.

2

155431A1

BUSHING

mounting pin

1шт.

3

155156A1

RING

WIPER mounting pin

2шт.

4

156234A1

BOLT

hex socket, special

8шт.

5

158147A1

WIPER SEAL

WIPER piston rod

1шт.

Part of Seal Kit part number 158010A1

1шт.

6

155324A1

BACK-UP RING

SEAL piston rod

1шт.

Part of Seal Kit part number 158010A1

1шт.

7

155232A1

BACK-UP RING

1шт.

Part of Seal Kit part number 158010A1

1шт.

8

155131A1

RING

SEAL U-cup

1шт.

Part of Seal Kit part number 158010A1

1шт.

9

155135A1

SCRAPER RING

buffer

1шт.

Part of Seal Kit part number 158010A1

1шт.

158153A1

GLAND

ASSEMBLY cylinder, Includes: Ref. 10 - 12

1шт.

10

155419A1

BUSHING

gland

1шт.

11

155697A1

RING, SNAP

RING SNAP retaining

1шт.

12

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

13

155240A1

BACK-UP RING

1шт.

Part of Seal Kit part number 158010A1

1шт.

14

154761A1

O-RING,119.4mm ID x 3.1mm Width

SEAL gland

1шт.

Part of Seal Kit part number 158010A1

1шт.

15

155548A1

TUBE

gland end

1шт.

16

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

hex, special

2шт.

17

156227A1

WASHER

lock, special

2шт.

18

156373A1

CLAMP

band

1шт.

19

156398A1

CLAMP

band

1шт.

20

155716A1

COLLAR

tube

1шт.

21

892-11012

LOCK WASHER,M12

1шт.

22

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

1шт.

23

158234A1

RING

BEARING cushion

1шт.

24

155973A1

PISTON

cylinder

1шт.

25

155311A1

SEALING RING

piston

1шт.

Part of Seal Kit part number 158010A1

1шт.

26

155325A1

SEALING RING

RING wear piston, inner

2шт.

Part of Seal Kit part number 158010A1

1шт.

27

155306A1

SEALING RING

RING wear piston, outer

2шт.

Part of Seal Kit part number 158010A1

1шт.

28

155721A1

SHIM

washer flat, special

1шт.

Part of Seal Kit part number 158010A1

1шт.

29

156219A1

NUT

special

1шт.

30

155977A1

BALL

steel

1шт.

31

156223A1

SET SCREW

set

1шт.

32

863-12055

HEX SOC SCREW,M12 x 55mm, Cl 12.9

BOLT hex socket, 12 - 1.75 x 80 mm, class 12.9

8шт.

33

154543A1

O-RING

Tube

2шт.

34

155530A1

TUBE

ELBOW 90 degree

1шт.

35

155156A1

RING

WIPER mounting pin

2шт.

158173A1

HYD TUBE

cylinder, Includes: Ref. 36 and 37

1шт.

36

155431A1

BUSHING

mounting pin

1шт.

37

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

38

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

39

155158A1

SEAL

cushion bearing

1шт.

Part of Seal Kit part number 158010A1

1шт.

158010A1

SEAL KIT

seal includes: Refs. 5, 6, 7, 8, 9, 13, 14, 25, 26, 27, 28, and 39

1шт.
