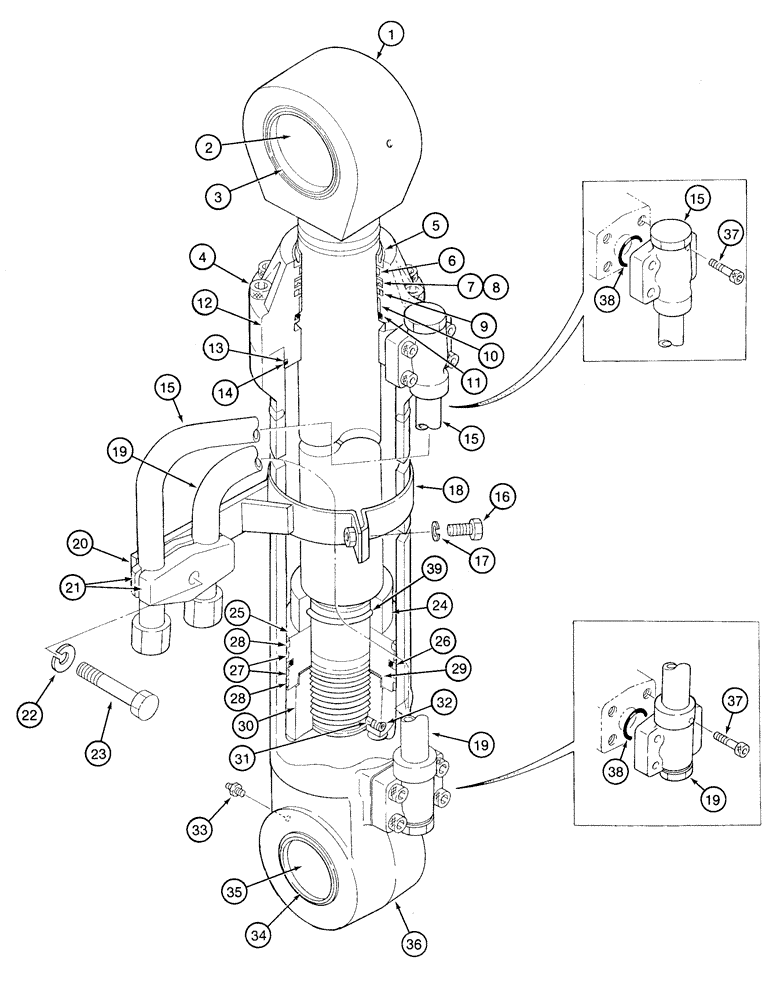

Запчасти Case 9020 (8-094) - BOOM CYLINDERS (08) - HYDRAULICS

150001A1

CYLINDER ASSY.

ASSEMBLY 4-3/4 (120) ID x 46 - 5/8 inch (1184 mm) stroke, right-hand, Includes: Ref. 1 - 39

1шт.

150007A1

CYLINDER ASSY.

ASSEMBLY 4-3/4 (120) ID x 46 - 5/8 inch (1184 mm) stroke, left-hand, Includes: Ref. 1 - 39

1шт.

155894A1

ROD ASSY.

cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

ROD cylinder

1шт.

2

155432A1

BUSHING

mounting pin

1шт.

3

155157A1

RING

WIPER mounting pin

2шт.

4

156239A1

BOLT

hex socket, special

8шт.

5

158033A1

WIPER SEAL

WIPER piston rod

1шт.

Part of Seal Kit part number 158146A1

1шт.

6

155347A1

BACK-UP RING

SEAL piston rod

1шт.

Part of Seal Kit part number 158146A1

1шт.

7

155241A1

BACK-UP RING

1шт.

Part of Seal Kit part number 158146A1

1шт.

8

155132A1

RING,80mm ID x 95mm OD x 9mm Thk

SEAL U-cup

1шт.

Part of Seal Kit part number 158146A1

1шт.

9

155136A1

SCRAPER RING

buffer

1шт.

Part of Seal Kit part number 158146A1

1шт.

155893A1

GLAND

ASSEMBLY cylinder, Includes: Ref. 10 - 12

1шт.

10

155430A1

BUSHING

gland

1шт.

11

155696A1

RING, SNAP

RING SNAP

1шт.

12

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

13

155234A1

BACK-UP RING

1шт.

Part of Seal Kit part number 158146A1

1шт.

14

154753A1

O-RING,114.4mm ID x 3.1mm Width

SEAL gland

1шт.

Part of Seal Kit part number 158146A1

1шт.

15

155545A1

HYD TUBE

gland end, right-hand cylinder

1шт.

15

155547A1

HYD TUBE

TUBE gland end, left-hand cylinder

1шт.

16

158131A1

BOLT,High Strength, M10 x 1.5 x 35mm, Cl 10.9

hex, special

2шт.

17

156227A1

WASHER

lock, special

2шт.

18

156376A1

MOUNTING CLIP

CLAMP

1шт.

19

155544A1

HYD TUBE

cylinder tube end, right-hand cylinder

1шт.

19

155546A1

HYD TUBE

cylinder tube end, left-hand cylinder

1шт.

20

156397A1

CLAMP

band

1шт.

21

155701A1

COLLAR

tube

2шт.

22

153623A1

SPRING WASHER

lock, special

1шт.

23

153910A1

BOLT,High Strength, Hex, M14 x 80mm

hex, special

1шт.

24

155160A1

RING

BEARING cushion

1шт.

25

155975A1

PISTON

cylinder

1шт.

26

155313A1

SEALING RING

piston

1шт.

Part of Seal Kit part number 158146A1

1шт.

27

155326A1

RING

wear piston, inner

2шт.

Part of Seal Kit part number 158146A1

1шт.

28

155308A1

RING

wear piston, outer

2шт.

Part of Seal Kit part number 158146A1

1шт.

29

155723A1

WASHER

special

1шт.

Part of Seal Kit part number 158146A1

1шт.

30

156221A1

NUT

hex

1шт.

31

155977A1

BALL

steel

1шт.

32

156223A1

SET SCREW

set

1шт.

33

153630A1

LUBE NIPPLE

FITTING grease, straight

1шт.

34

155156A1

RING

WIPER mounting pin

2шт.

155902A1

HYD TUBE

cylinder, Includes: Ref. 35 and 36

1шт.

35

155431A1

BUSHING

mounting pin

1шт.

36

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

37

861-10050

HEX SOC SCREW,M10 x 50mm, Cl 12.9

hex socket, 10 - 1.5 x 50 mm, class 12.9

8шт.

38

154528A1

O-RING

hydraulic tube

2шт.

39

155155A1

SEAL

cushion bearing

1шт.

Part of Seal Kit part number 158146A1

1шт.

158146A1

SEAL KIT

seal includes: Refs. 5, 6, 7, 8, 9, 13, 14, 26, 27, 28, 29 and 39

1шт.
