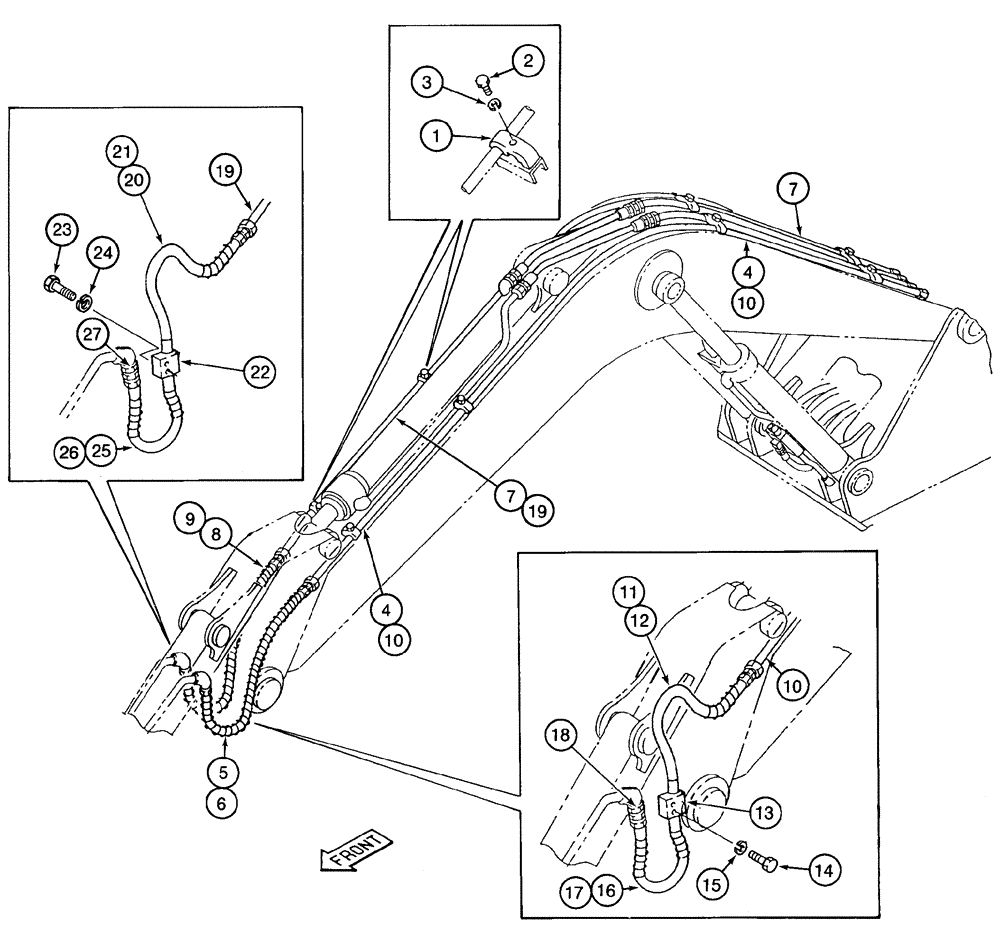

Запчасти Case 9020 (8-092) - BUCKET CYLINDER LINES, 2.7 METER ARM, 3.1 METER ARM (08) - HYDRAULICS

1

151486A1

CLAMP BRACKET

4шт.

2

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

3

892-11012

LOCK WASHER,M12

4шт.

4

150160A1

HYD TUBE

bucket-close cylinder supply, (bucket-close supply hose to bucket-close cylinder hose)

1шт.

5

150186A1

HOSE

49-3/16 inch (1250 mm) long, bucket-close cylinder, (bucket-close cylinder supply tube to bucket cylinder), Includes: Ref. 6

1шт.

6

154503A1

O-RING

hose, (not shown)

1шт.

7

150165A1

HYD TUBE

bucket-open cylinder supply, (bucket-open supply hose to bucket-open cylinder hose)

1шт.

8

150186A1

HOSE

49-3/16 inch (1250 mm) long, bucket-open cylinder, (bucket-open cylinder supply tube to bucket cylinder), Includes: Ref. 9

1шт.

9

154503A1

O-RING

hose, (not shown)

1шт.

10

150160A1

HYD TUBE

bucket-close cylinder supply, (bucket-close supply hose to bucket-close cylinder hose)

1шт.

11

150186A1

HOSE

49-3/16 inch (1250 mm) long, bucket-close manifold, (bucket-close cylinder supply tube to bucket-close manifold), Includes: Ref. 12

1шт.

12

154503A1

O-RING

hose, (not shown)

1шт.

13

153644A1

MANIFOLD

bucket-close

1шт.

14

1970963C1

BOLT,Hex, M12 x 75mm, Cl 10.9

hex, 12 - 1.75 x 75 mm, class 10.9

2шт.

15

892-10012

LOCK WASHER,M12

2шт.

16

157125A1

HYDRAULIC HOSE,1000.00 mm

Bucket-Close Manifold to Bucket Cylinder

1шт.

17

154503A1

O-RING

hose, (not shown)

1шт.

18

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

straight

1шт.

19

150165A1

HYD TUBE

bucket-open cylinder supply, (bucket-open supply hose to bucket-open cylinder hose)

1шт.

20

150186A1

HOSE

49-3/16 inch (1250 mm) long, bucket-open manifold, (bucket-open cylinder supply tube to bucket-open manifold), Includes: Ref. 21

1шт.

21

154503A1

O-RING

hose, (not shown)

1шт.

22

153644A1

MANIFOLD

bucket-open

1шт.

23

1970963C1

BOLT,Hex, M12 x 75mm, Cl 10.9

hex, 12 - 1.75 x 75 mm, class 10.9

2шт.

24

892-10012

LOCK WASHER,M12

2шт.

25

157125A1

HYDRAULIC HOSE,1000.00 mm

Bucket-Open Manifold to Bucket Cylinder

2шт.

26

154503A1

O-RING

hose, (not shown)

1шт.

27

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

straight

2шт.
