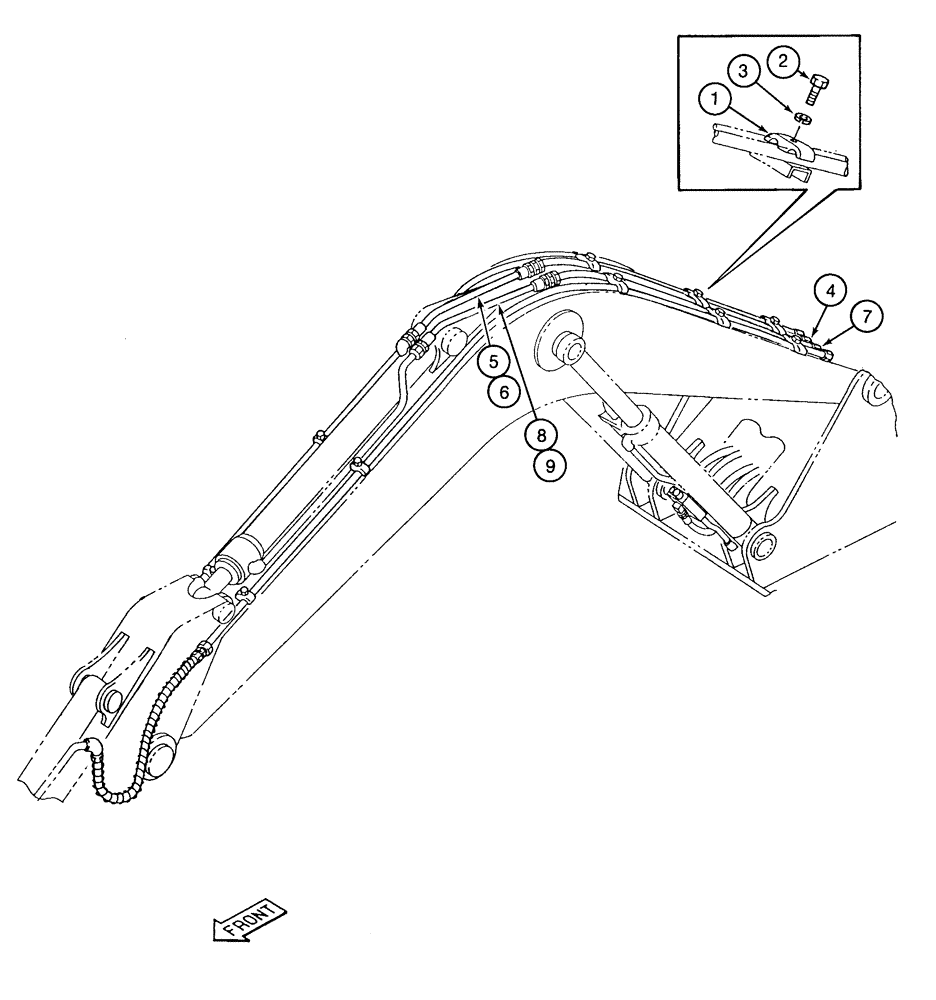

Запчасти Case 9020 (8-090) - ARM CYLINDER LINES (08) - HYDRAULICS

1

151489A1

CLAMP

tube

6шт.

2

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

6шт.

3

892-10016

LOCK WASHER,M16

lock, 16 mm

6шт.

4

150156A1

HYD TUBE,2249.4 mm Length

arm-in cylinder supply, (arm-in supply line to arm-in hose)

1шт.

5

150015A1

HYDRAULIC HOSE

39-3/8 inch (1000 mm) long, arm-in, (arm-in cylinder supply tube to arm cylinder), Includes: Ref. 6

1шт.

6

154523A1

O-RING

hose, (not shown)

1шт.

7

150150A1

HYD TUBE,2249.4 mm Length

arm-out cylinder supply, (arm-out supply line to arm-out hose)

1шт.

8

150015A1

HYDRAULIC HOSE

39-3/8 inch (1000 mm) long, arm-out, (arm-out cylinder supply tube to arm cylinder), Includes: Ref. 9

1шт.

9

154523A1

O-RING

hose, (not shown)

1шт.
