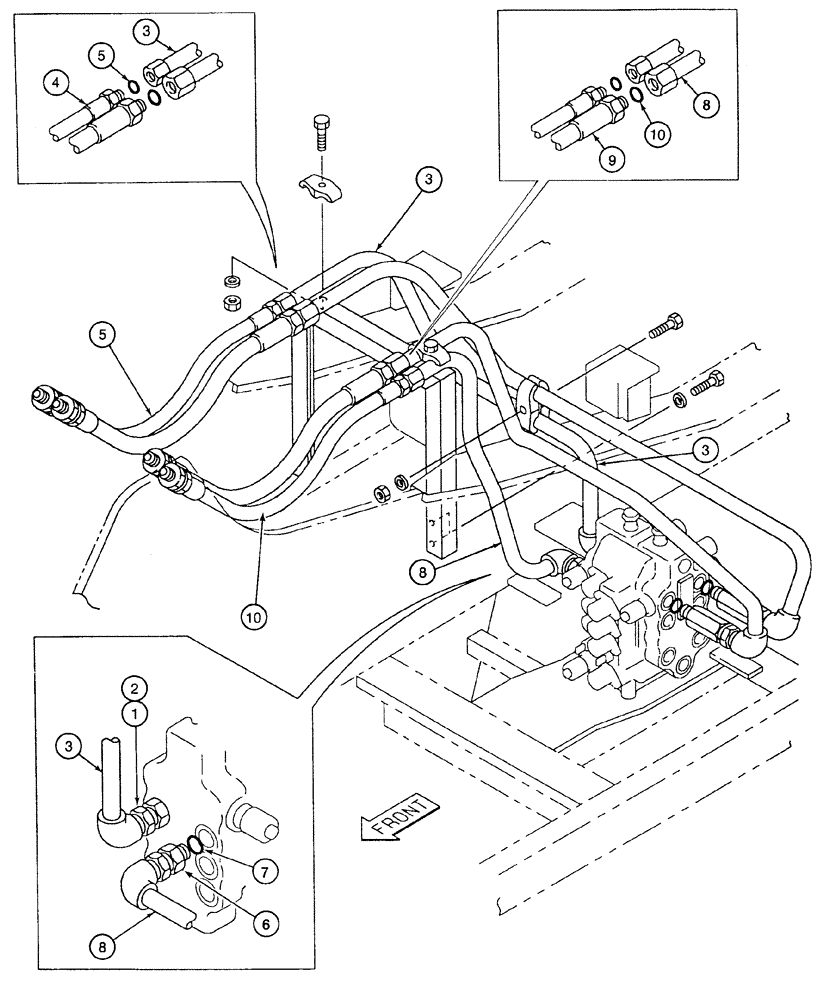

Запчасти Case 9020 (8-088) - BUCKET SUPPLY LINES (08) - HYDRAULICS

1

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

straight, Includes: Ref. 2

1шт.

2

154503A1

O-RING

adapter, not shown

1шт.

3

150600A1

HYD TUBE

bucket-close, (main control valve port "A23" to bucket-close hose)

1шт.

4

150015A1

HYDRAULIC HOSE

39-3/8 inch (1000 mm) long, bucket-close, (bucket-close tube to bucket-close cylinder supply tube), Includes: Ref. 5

2шт.

5

154523A1

O-RING

hose

1шт.

6

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

straight, Includes: Ref. 7

1шт.

7

154503A1

O-RING

adapter

1шт.

8

150592A1

HYD TUBE,27.2 mm OD, 407.8, 399 mm Length

bucket-open, (main control valve port "B23" to bucket-open hose)

1шт.

9

150015A1

HYDRAULIC HOSE

39-3/8 inch (1000 mm) long, bucket-open, (bucket-open tube to bucket-open cylinder suppy tube), Includes: Ref. 10

2шт.

10

154523A1

O-RING

hose

1шт.
