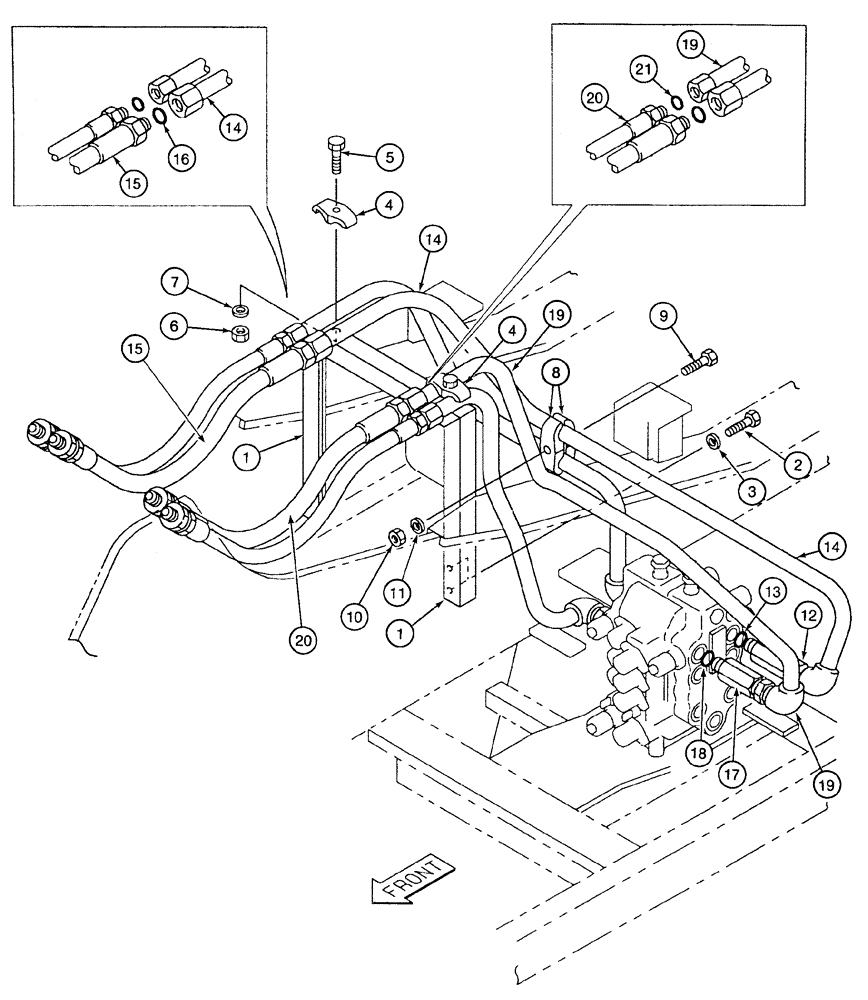

Запчасти Case 9020 (8-086) - ARM SUPPLY LINES (08) - HYDRAULICS

1

150352A1

BRACKET

mounting

1шт.

2

626-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

3

150988A1

WASHER

flat, special, 12 mm

4шт.

4

152533A1

SPECIAL CLAMP

tube

2шт.

5

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

6

829-1312

NUT,M12 x 1.75, Cl 10

2шт.

7

150988A1

WASHER

flat, special, 12 mm

2шт.

8

152533A1

SPECIAL CLAMP

tube

2шт.

9

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

BOLT - hex, 12 - 1.75 x 70 mm, class 10.9

1шт.

10

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

11

150988A1

WASHER

flat, special, 12 mm

1шт.

12

152634A1

STUD

CONNECTOR straight, Includes: Ref. 13

1шт.

13

154503A1

O-RING

connector

1шт.

14

150596A1

HYD TUBE,31.8 mm OD, 1365.9, 297 mm Length

arm-in supply, (main control valve port "A14" to arm-in supply hose)

1шт.

15

150024A1

HOSE ASSY.

39-3/8 inch (1000 mm) long, arm-in supply, (arm-in supply line), Includes: Ref. 16

1шт.

16

154503A1

O-RING

hose

1шт.

17

152634A1

STUD

CONNECTOR straight, Includes: Ref. 18

2шт.

18

154503A1

O-RING

connector

1шт.

19

150595A1

HYD TUBE,31.8 mm OD, 1005.9, 242 mm Length

arm-out supply, (main control valve port "B14" to arm-out supply hose)

1шт.

20

150024A1

HOSE ASSY.

39-3/8 inch (1000 mm) long, arm-out supply, (arm-out supply tube to arm-out cylinder supply line), Includes: Ref. 21

2шт.

21

154503A1

O-RING

hose

1шт.
