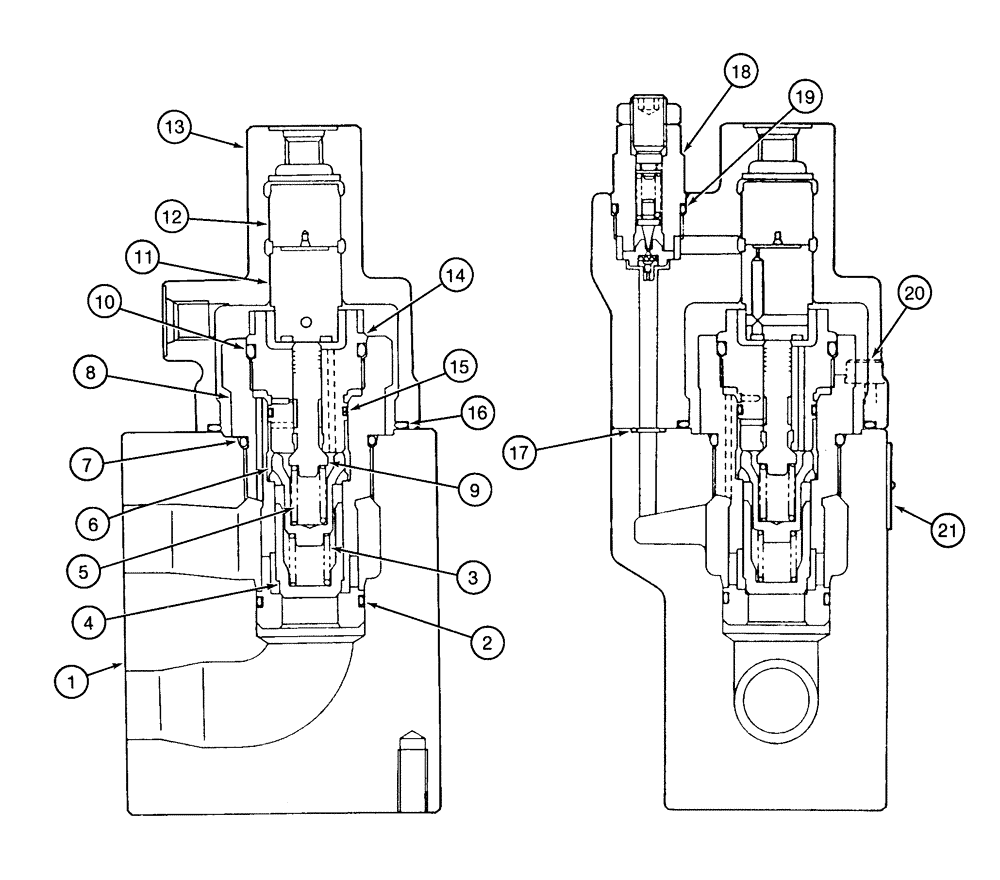

Запчасти Case 9020 (8-084) - BOOM HOLDING VALVE ASSEMBLY (08) - HYDRAULICS

150426A1

VALVE

ASSEMBLY boom holding, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING valve

1шт.

2

154539A1

O-RING

valve

1шт.

3

156118A1

SPRING

compression

1шт.

4

NSS

NOT SOLD SEPARAT

PLUNGER valve

1шт.

5

156119A1

SPRING

compression

1шт.

6

156207A1

SPRING

SEAT

1шт.

7

154579A1

O-RING

valve body

1шт.

8

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

10

154555A1

O-RING

spool

1шт.

11

156901A1

PISTON

valve

1шт.

12

156902A1

PISTON

valve

1шт.

13

156899A1

COVER

valve

1шт.

14

156900A1

BUSHING

GUIDE spool

1шт.

15

156903A1

O-RING

spool guide

1шт.

16

154657A1

O-RING

valve

1шт.

17

154455A1

O-RING

passage

1шт.

18

156898A1

VALVE, PRESSURE RELI

EF ASSEMBLY relief, Includes: Ref. 19

1шт.

19

154499A1

O-RING

relief valve

1шт.

20

863-8030

HEX SOC SCREW,M8 x 30mm, Cl 12.9

4шт.
