(8-082) - BOOM CYLINDER LINES

Запчасти Case 9020 (8-082) - BOOM CYLINDER LINES (08) - HYDRAULICS

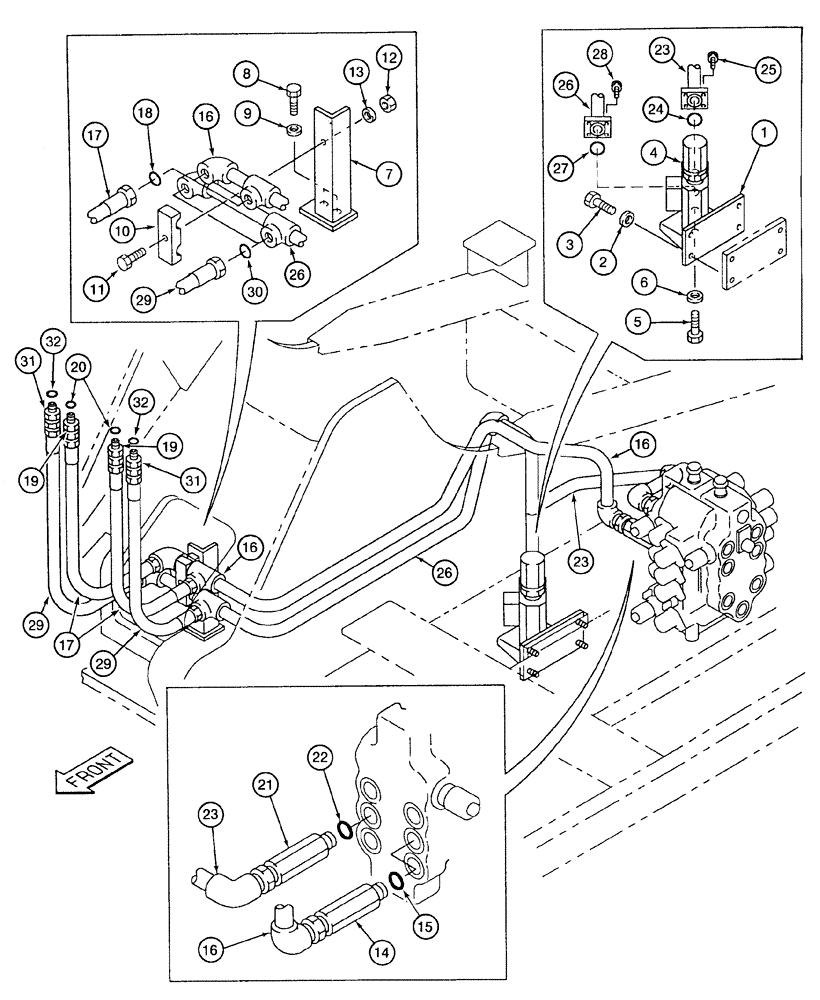

Схема запчастей Case 9020 - (8-082) - BOOM CYLINDER LINES (08) - HYDRAULICS
10
31
26
17
2
29
29
16
21
8
32
29
6
31
19
11
19
1
25
26
16
16
4
9
17
32
24
27
13
5
30
26
15
23
20
18
28
23
22
16
14
7
3
23
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

150356A1

BRACKET

mounting

1шт.

2

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

3

150732A1

WASHER

special, 10 mm

4шт.

4

150426A1

VALVE

ASSEMBLY boom holding, parts list Figure 8-85

1шт.

5

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

6

150732A1

WASHER

special, 10 mm

2шт.

7

150381A1

BRACKET

mounting

1шт.

8

626-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, full threads, 12 - 1.75 x 25 mm, class 10.9

2шт.

9

150988A1

WASHER

flat, special, 12 mm

2шт.

10

152085A1

COLLAR

tube

1шт.

11

828-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

1шт.

12

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

13

150988A1

WASHER

flat, special, 12 mm

1шт.

14

152019A1

ELEC CONNECTOR

ADAPTER straight, Includes: Ref. 15

1шт.

15

154503A1

O-RING

adapter

1шт.

16

150568A1

HYD TUBE,27.2 mm OD, 986.6, 711.8 mm Length

boom-down supply, (main control valve port "B22" to boom-down cylinder supply hoses)

1шт.

17

150012A1

HYDRAULIC HOSE,19mm ID x 950mm L

Boom-Down Cylinder Supply, (Boom-Down Supply Tube to Boom Cylinders) Includes: Ref. 18

2шт.

18

154523A1

O-RING

hose

1шт.

19

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

straight, Includes: Ref. 20

2шт.

20

154503A1

O-RING

adapter

1шт.

21

152021A1

CONNECTOR, ELEC

CONNECTOR ADAPTER straight, Includes: Ref. 22

1шт.

22

154503A1

O-RING

adapter

1шт.

23

150571A1

HYD TUBE,31.8 mm OD, 428.9, 319.9 mm Length

boom-up supply, (main control valve port "A22" to boom holding valve port "A")

1шт.

24

154548A1

O-RING

tube

1шт.

25

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

hex socket, 10 - 1.5 x 35 mm, class 12.9

4шт.

26

150576A1

HYD TUBE

boom-up supply, (boom holding valve port "B" to boom-up cylinder supply hoses)

1шт.

27

154548A1

O-RING

tube

1шт.

28

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

hex socket, 10 - 1.5 x 35 mm, class 12.9

4шт.

29

150012A1

HYDRAULIC HOSE,19mm ID x 950mm L

Boom-Up Cylinder Supply, (Boom-Up Supply Tube to Boom Cylinders) Includes: Ref. 30

2шт.

30

154523A1

O-RING

hose

1шт.

31

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

straight, Includes: Ref. 32

2шт.

32

154503A1

O-RING

adapter

1шт.
