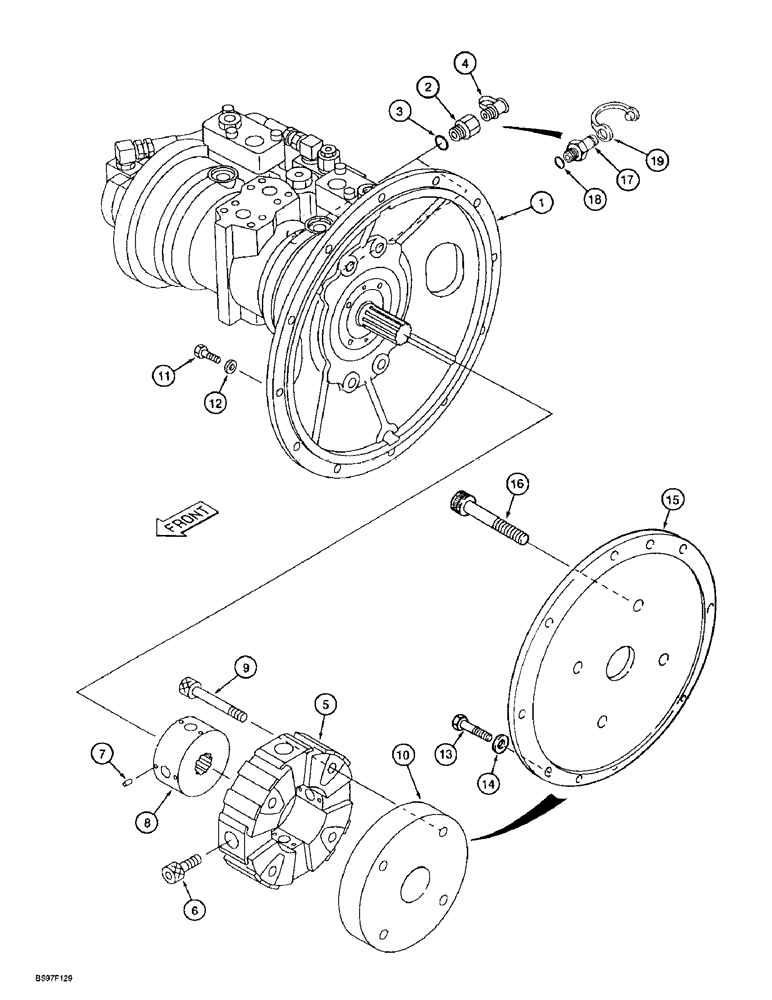

Запчасти Case 9010B (8-004) - HYDRAULIC PUMP AND COUPLING (08) - HYDRAULICS

1

161072A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, parts list see Figures 8-92 - 8-98

1шт.

1

315567A1R

REMAN-HYD PUMP

Reman for New P/N 161072A1

1шт.

1

315567A1C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

1

315567A2R

REMAN-HYD PUMP

Reman for New P/N 161072A1

1шт.

1

315567A1C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

1

169303A1R

REMAN-HYD PUMP

Reman for New PN 161072A1

1шт.

1

169303A1C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

151136A1

BUSHING

ADAPTER - straight, special, oil plug, Includes: Ref. 3

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

O-RING - adapter

1шт.

4

150290A1

PLUG

PLUG - oil, no longer available order 1541849C1, Serial Range: -DAC01#2001

2шт.

5

150612A1

FLEXIBLE COUPLING

DAMPER ASSEMBLY - vibration, Includes: Ref. 6 and 7

1шт.

6

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

BOLT - hex socket, 16 - 2.0 x 50 mm, class 12.9

8шт.

7

738-1510

LOCK PIN,M5 x 10, Slotted

PIN - roll, 5 x 10 mm

4шт.

8

152680A1

SPLINED COUPLING

COUPLING - splined

1шт.

9

862-16100

HEX SOC SCREW,M16 x 100mm, Cl 12.9

BOLT - hex socket, 16 - 2.0 x 100 mm, class 12.9, used with Ref. 10, 161212A1, Serial Range: -DAC01#2001

4шт.

10

161212A1

FLANGE

DISK - pump drive, Serial Range: -DAC01#2001

1шт.

12

150409A1

WASHER

WASHER - flat, special, 10.5 x 21 x 3.2 mm

9шт.

13

165057A1

BOLT,Hex, 3/8" - 16 x 28.50mm

BOLT - hex, special, Start Serial: DAC01#2001

8шт.

14

150409A1

WASHER

WASHER - flat, special, 10.5 x 21 x 3.2 mm, Start Serial: DAC01#2001

8шт.

15

153338A1

FLANGE

DISC - pump drive, Start Serial: DAC01#2001

1шт.

16

862-16050

HEX SOC SCREW,M16 x 50mm, Cl 12.9

BOLT - hex socket, 16 - 2.0 x 50 mm, class 12.9, used with Ref. 15, 153338A1, Start Serial: DAC01#2001

4шт.

1541849C1

COUPLING

COUPLING ASSEMBLY - diagnostic, Includes: Ref. 17 - 19, Start Serial: DAC01#2001

2шт.

17

NSS

NOT SOLD SEPARAT

BODY - coupling, Start Serial: DAC01#2001

1шт.

19

H434163

DUST CAP

CAP - dust, Start Serial: DAC01#2001

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-Ring, 6-1, 90 Duro, .468" ID x .078" Thk, Start Serial: DAC01#2001

1шт.

11

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

BOLT, Hex, M10 x 30, 10.9, Full Thd

9шт.
