(6-020) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS

Запчасти Case 9010B (6-020) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS (06) - POWER TRAIN

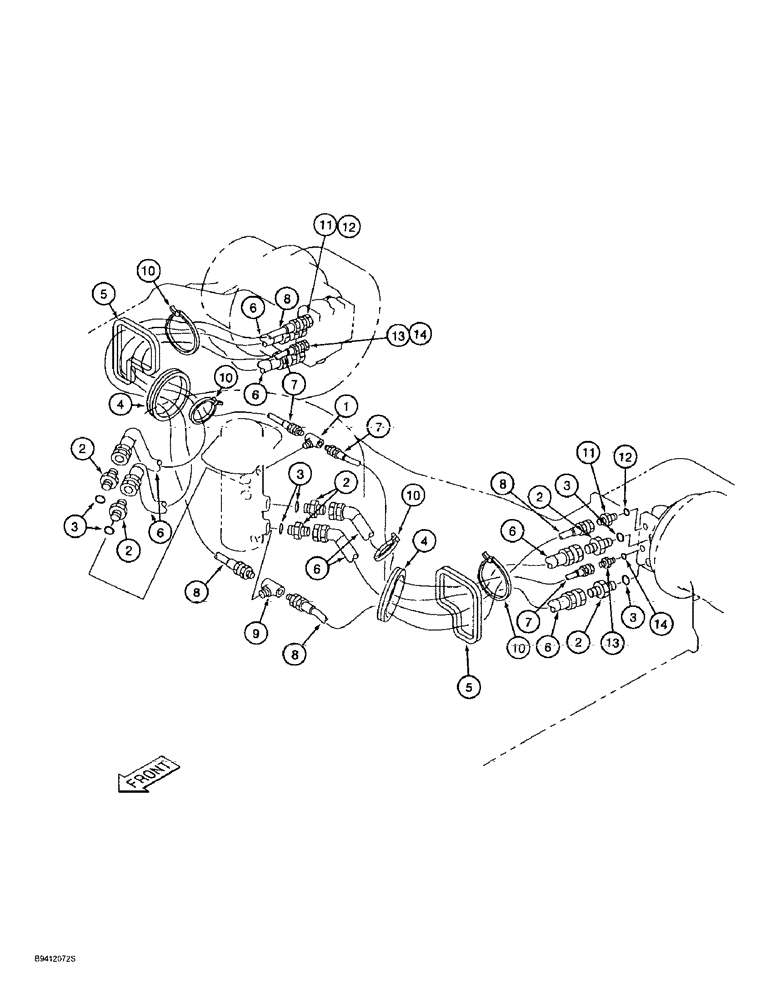

Схема запчастей Case 9010B - (6-020) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS (06) - POWER TRAIN
8
13
6
10
6
2
10
6
4
11
3
7
10
6
1
2
7
10
8
13
2
8
7
2
6
6
12
12
3
3
14
8
5
3
5
2
14
11
5
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152509A1

TEE

- special

1шт.

2

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, Includes: Ref. 3

8шт.

3

154503A1

O-RING

- adapter, replaces 150542A1, O-ring

1шт.

4

150953A1

RUBBER BLOCK

GROMMET - rubber

2шт.

5

160697A1

RUBBER BLOCK

GROMMET - rubber

2шт.

6

160696A1

HYDRAULIC HOSE,19.00 mm ID x 1680.00 mm

19.00 mm ID x 1680.00 mm

4шт.

7

153484A1

HOSE ASSY.

HOSE - 1700 mm (67 inch) long

2шт.

8

150963A1

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

12.70 mm ID x 1650.00 mm

2шт.

9

152195A1

TEE

- special

1шт.

10

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

4шт.

11

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, at track drive motor, Includes: Ref. 12

2шт.

12

154487A1

O-RING

- adapter

2шт.

13

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, Includes: Ref. 14

2шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter

2шт.
