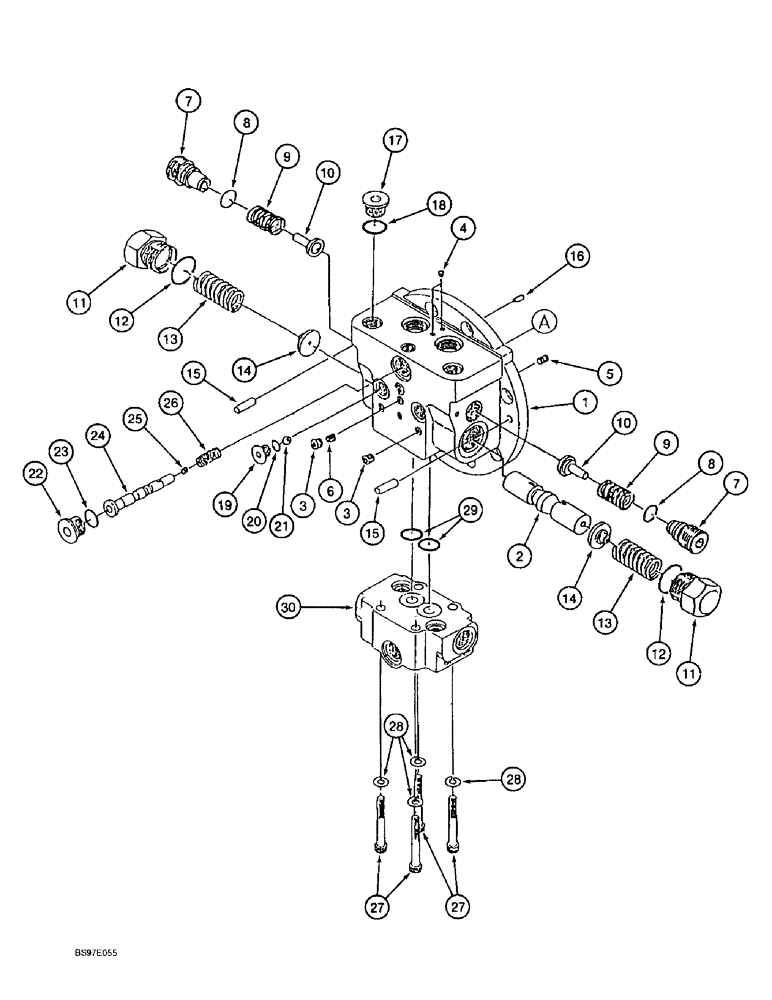

Запчасти Case 9010B (6-014) - TRACK DRIVE MOTOR ASSY,BASE PLATE ASSLY,STD MODELS PIN DAC0101222 & AFT, ALL SPECIAL APPLICATION MOD (06) - POWER TRAIN

164691A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, includes all parts listed on Figures 6-10, 6-14 and 6-18, Includes: Ref. 1 - 30

2шт.

165249A1

FLANGE

PLATE ASSEMBLY - base, Includes: Ref. 1 - 30

2шт.

1

NSS

NOT SOLD SEPARAT

PLATE - base

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve, special

1шт.

3

155490A1

PLUG

- port

3шт.

4

165239A1

PLUG

- port, base plate

8шт.

5

NSS

NOT SOLD SEPARAT

FILTER - base plate

1шт.

6

NSS

NOT SOLD SEPARAT

ORIFICE - base plate

1шт.

7

165238A1

PLUG

- check valve

2шт.

8

154483A1

O-RING

- seal, plug

2шт.

9

165278A1

SPRING

- check valve

2шт.

10

165252A1

VALVE

POPPET - check valve

2шт.

11

165235A1

PLUG

- hex, port, base plate

2шт.

12

154515A1

O-RING

- seal

2шт.

13

165279A1

SPRING

- valve, special

2шт.

14

165248A1

RETAINER

STOPPER - valve spool

2шт.

15

837-10025

DOWEL,M10 x 25

PIN - dowel, 10 x 25 mm, hardened

2шт.

16

837-4010

DOWEL,M4 x 10

PIN - dowel, 4 x 10 mm, hardened

1шт.

17

165237A1

PLUG

- port, base plate

1шт.

18

154487A1

O-RING

- plug

1шт.

19

165236A1

PLUG

- port

2шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

2шт.

21

160979A1

BALL

- steel

2шт.

22

165237A1

PLUG

- port

1шт.

23

154487A1

O-RING

- plug

1шт.

165264A1

SPOOL

ASSEMBLY - valve

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

25

NSS

NOT SOLD SEPARAT

STOPPER - valve spool

1шт.

26

165283A1

SPRING

- spool

1шт.

27

962-8065

HEX SOC SCREW,M8 x 65mm, Cl 10.9

BOLT - hex socket, 8 - 1.25 x 65 mm, class 10.9, control valve attaching

4шт.

28

156188A1

SPRING WASHER

WASHER - lock

4шт.

29

154487A1

O-RING

- valve assembly

2шт.

30

REF

INSTRUCTION

VALVE ASSEMBLY - base plate, see parts list Figure 6-18

1шт.
