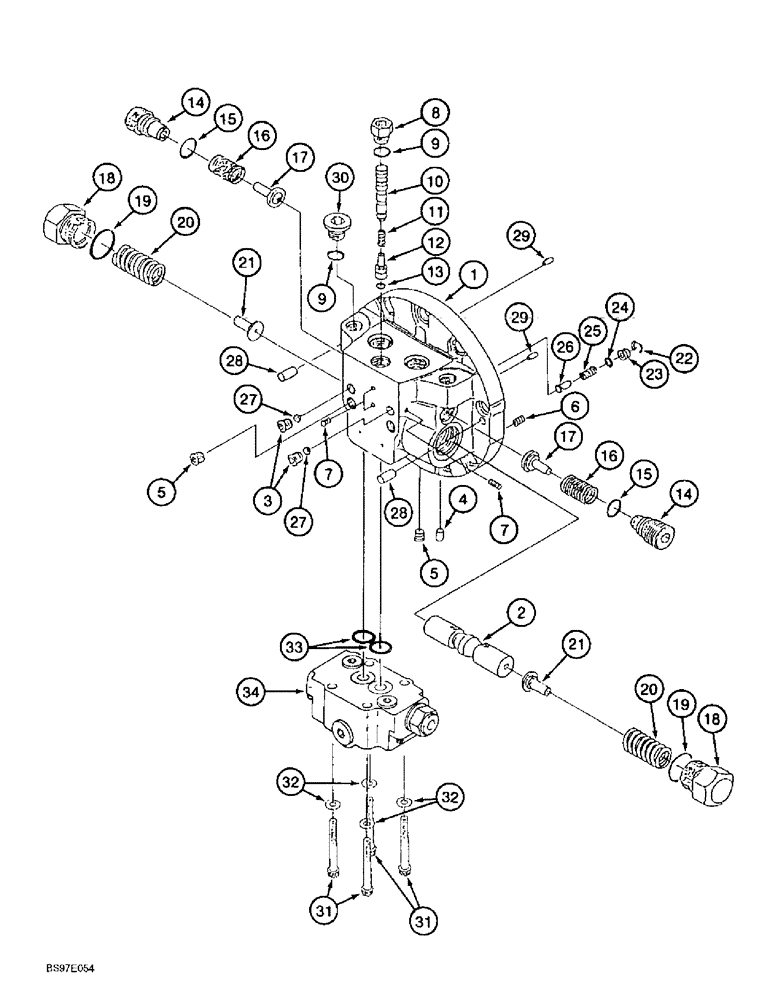

Запчасти Case 9010B (6-012) - TRACK DRIVE MOTOR ASSEMBLY, BASE PLATE ASSEMBLY, STANDARD MODELS PRIOR TO P.I.N. DAC0101222 (06) - POWER TRAIN

160892A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, includes all parts listed on Figures 6-8, 6-12, and 6-16, Includes: Ref. 1 - 34

2шт.

160896A1

FLANGE

PLATE ASSEMBLY - base, Includes: Ref. 1 - 34

2шт.

1

NSS

NOT SOLD SEPARAT

PLATE - base

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve, special

1шт.

3

151026A1

PLUG

- port

2шт.

4

155680A1

EXPANDER

PLUG - base plate

1шт.

5

155490A1

PLUG

- port, base plate

3шт.

6

161828A1

ORIFICE

- base plate, replaces 160935A1, base plate orifice

1шт.

7

160984A1

EXPANDER

PLUG - port, base plate

3шт.

8

160991A1

JOINT

ADAPTER - hex, special, base plate

1шт.

9

154487A1

O-RING

- seal

2шт.

Part of seal kit P/N 163884A1.

1шт.

10

160934A1

SPOOL

- valve

1шт.

11

160958A1

SPRING

- spool

1шт.

12

160866A1

STOP

PER - valve spool

1шт.

13

155087A1

O-RING

- seal, stopper

1шт.

Part of seal kit P/N 163884A1.

1шт.

14

155476A1

PLUG

- check valve

2шт.

15

154491A1

O-RING

- seal, plug

2шт.

Part of seal kit P/N 163884A1.

1шт.

16

156073A1

SPRING

- check valve

2шт.

17

155943A1

VALVE

POPPET - check valve

2шт.

18

155474A1

PLUG

- hex, port, base plate

2шт.

19

154539A1

O-RING

- seal

2шт.

Part of seal kit P/N 163884A1.

1шт.

20

156074A1

SPRING

- valve, special

2шт.

21

160864A1

STOP

PER - valve spool

2шт.

22

155580A1

RING

- retaining

1шт.

23

155581A1

SEAT, VALVE

SEAT - plunger

1шт.

24

154459A1

O-RING

- seal

1шт.

Part of seal kit P/N 163884A1.

1шт.

25

156068A1

SPRING

- valve

1шт.

26

160932A1

VALVE

- special

1шт.

27

160979A1

BALL

- steel

2шт.

28

837-10028

DOWEL,M10 x 28

PIN - dowel, 10 x 28 mm, hardened

2шт.

29

837-5012

DOWEL,M5 x 12

PIN - dowel, 5 x 12 mm, hardened

2шт.

30

155492A1

PLUG

- port, base plate

1шт.

31

962-8065

HEX SOC SCREW,M8 x 65mm, Cl 10.9

BOLT - hex socket, 8 - 1.25 x 65 mm, class 10.9, control valve attaching

4шт.

32

156188A1

SPRING WASHER

WASHER - lock

4шт.

33

154491A1

O-RING

- valve assembly

2шт.

34

REF

INSTRUCTION

VALVE ASSEMBLY - base plate, see parts list Figure 6-16

1шт.

163884A1

SEAL KIT

KIT - seal, includes Refs. 9, 13, 15, 19 and 24, replaces 161044A1, seal kit

1шт.
