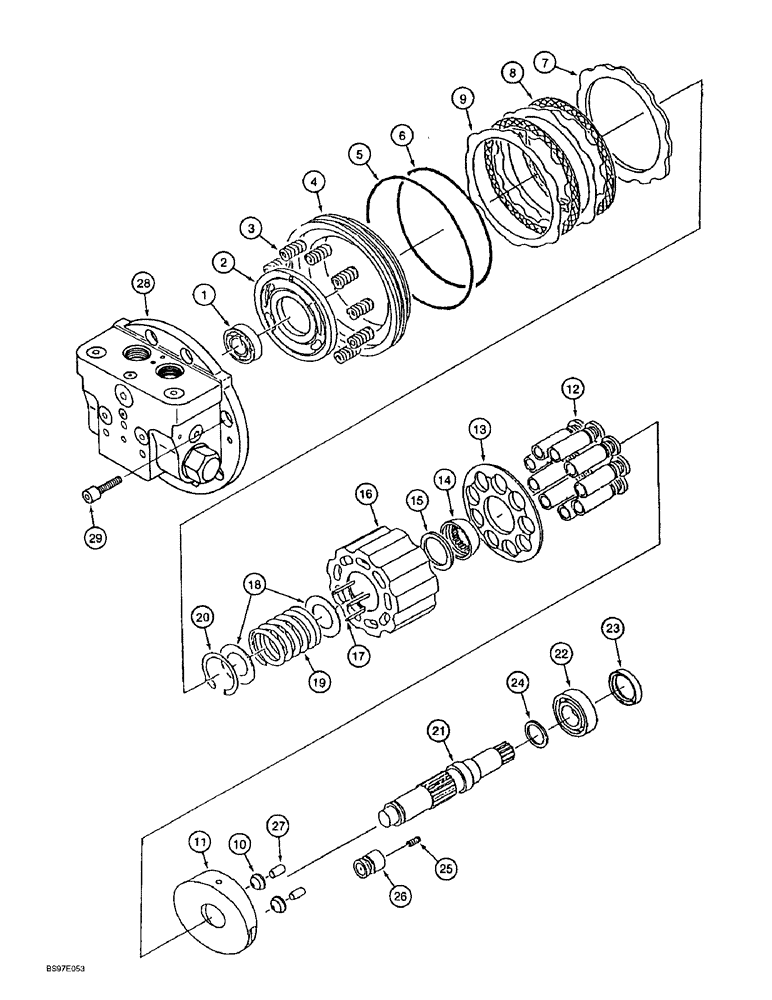

Запчасти Case 9010B (6-010) - TRACK DRIVE MOTOR ASSY/SHAFT/CYL BLOCK/PISTONS/STD MODELS PIN DAC0101222 & AFTER/ALL SPECIAL APP MOD (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
164691A1
MOTOR, HYDRAULIC
MOTOR ASSEMBLY - track drive, includes all parts listed on Figures 6-10, 6-14, and 6-18, Includes: Ref. 1 - 29
2шт.
1
165286A1
BEARING, BALL,17mm ID x 40mm OD x 12mm W
BEARING - special, shaft
1шт.
2
165307A1
LARGE PLATE
PLATE - valve
1шт.
3
165280A1
SPRING
- special, brake piston
8шт.
4
165263A1
PISTON
- brake
1шт.
5
165220A1
O-RING
RING - backup
1шт.
6
165219A1
O-RING
- seal
1шт.
7
165305A1
PLATE
- backing
1шт.
8
165296A1
LARGE PLATE
PLATE - friction
2шт.
9
165295A1
LARGE PLATE
PLATE - separator
2шт.
10
165287A1
BUSHING
BALL - steel, special
2шт.
11
165245A1
TRAY
PLATE - swash
1шт.
12
NSS
NOT SOLD SEPARAT
PISTON ASSEMBLY - motor, includes nine pistons
1шт.
Part of cylinder and piston kit P/N 165275A1.
1шт.
13
165246A1
RETAINER
PLATE - retainer
1шт.
Part of cylinder and piston kit P/N 165275A1.
1шт.
14
165304A1
BALL BEARING
BALL - thrust
1шт.
15
165291A1
WASHER
- special
1шт.
16
NSS
NOT SOLD SEPARAT
BLOCK - cylinder
1шт.
Part of cylinder and piston kit P/N 165275A1.
1шт.
17
165288A1
BEARING, NEEDLE
BEARING - needle, roller
3шт.
18
165289A1
WASHER
- special
2шт.
19
165282A1
SPRING
- cylinder block
1шт.
20
165221A1
RING, SNAP
RING - snap, shaft
1шт.
21
165234A1
SHAFT
- motor
1шт.
22
165285A1
BEARING, ROLLER, CYL,25mm ID x 52mm OD x 16mm W
BEARING - shaft
1шт.
23
LE014490
OIL SEAL
SEAL, oil, Replaces 165217A1
1шт.
24
165247A1
COLLAR CLAMP
COLLAR - retaining, bearing
1шт.
25
165281A1
SPRING
- piston
1шт.
26
165262A1
PISTON
- special
1шт.
27
161820A1
COTTER PIN
PIN - dowel
2шт.
28
REF
INSTRUCTION
PLATE ASSEMBLY - base, see parts list Figure 6-14
1шт.
29
861-10030
HEX SOC SCREW,M10 x 30mm, Cl 12.9
SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9
8шт.
165275A1
KIT
- cylinder and piston, includes Refs. 12, 13 and 16
1шт.
Выбрано товаров: 34
