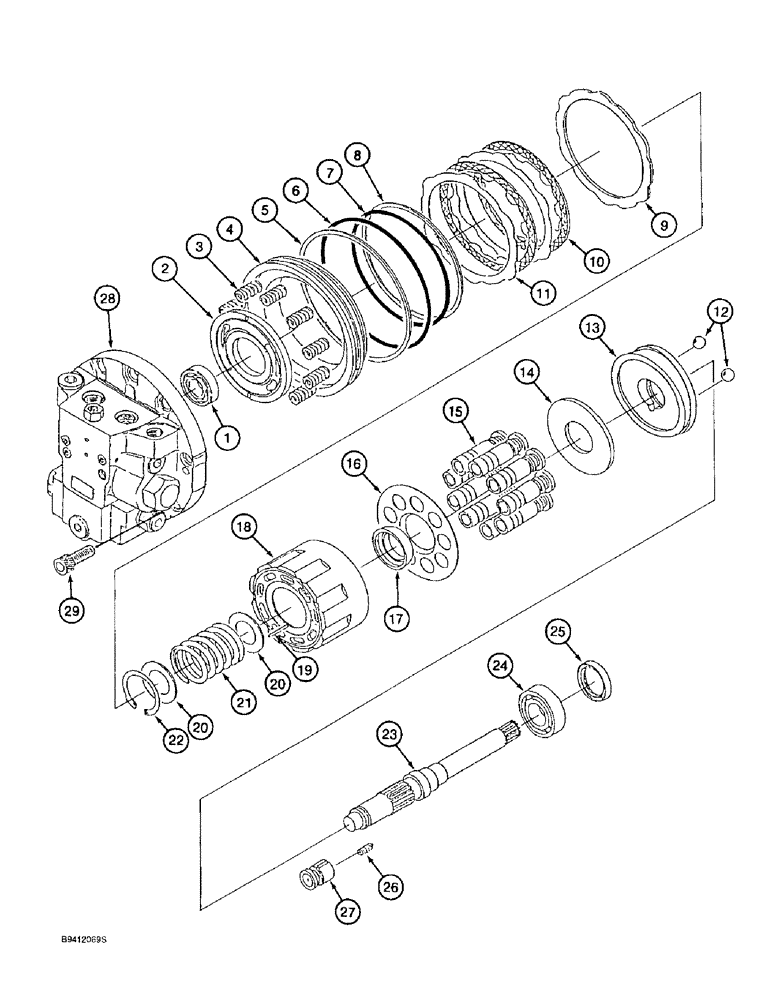

Запчасти Case 9010B (6-008) - TRACK DRIVE ASSEMBLY, SHAFT, CYLINDER BLOCK AND PISTONS, STANDARD MODELS PRIOR TO P.I.N. DAC0101222 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
160892A1
MOTOR, HYDRAULIC
MOTOR ASSEMBLY - track drive, includes all parts listed on Figures 6-8, 6-12, and 6-16, Includes: Ref. 1 - 28
2шт.
1
160960A1
BALL BEARING,20 mm ID x 47 mm OD x 14 mm
BEARING - special, shaft
1шт.
2
160987A1
PORT
PLATE - valve
1шт.
3
160955A1
SPRING
- special, brake piston
10шт.
4
160933A1
PISTON
- brake
1шт.
5
160800A1
BACK-UP RING
RING - backup
1шт.
Part of seal kit P/N 163884A1.
1шт.
6
154845A1
O-RING
- seal
1шт.
Part of seal kit P/N 163884A1.
1шт.
7
154804A1
O-RING
- special, motor assembly
1шт.
Part of seal kit P/N 163884A1.
1шт.
8
160801A1
BACK-UP RING
RING - backup
1шт.
Part of seal kit P/N 163884A1.
1шт.
9
160990A1
DISC
PLATE - backing
1шт.
10
160988A1
BRAKE DISC
PLATE - friction
2шт.
11
160989A1
DISC
PLATE - separator
2шт.
12
160978A1
BALL
- steel, special
2шт.
13
160862A1
TRAY
PLATE - swash
1шт.
14
160841A1
PLATE, THRUST
PLATE - thrust
1шт.
15
160893A1
PISTON
ASSEMBLY - motor, includes nine pistons
1шт.
16
160863A1
SUPPORT
PLATE - retainer
1шт.
17
160986A1
RING
BALL - thrust
1шт.
18
160985A1
VALVE SPRING
BLOCK - cylinder
1шт.
19
160961A1
BEARING, NEEDLE
BEARING - needle, roller
3шт.
20
160971A1
WASHER
SEAT - spring
2шт.
21
160956A1
SPRING
- cylinder block
1шт.
22
160865A1
RING, SNAP
RING - snap, shaft
1шт.
23
160838A1
SHAFT
- motor
1шт.
24
160963A1
BALL BEARING,35 mm ID x 72 mm OD x 17 mm
BEARING - shaft
1шт.
25
160779A1
OIL SEAL
- oil
1шт.
Part of seal kit P/N 163884A1.
1шт.
26
160957A1
SPRING
- piston
1шт.
27
160618A1
PISTON
- special
1шт.
28
REF
INSTRUCTION
PLATE ASSEMBLY - base, see parts list Figure 6-12
1шт.
29
961-14040
HEX SOC SCREW,M14 x 40mm, Cl 10.9
BOLT - hex socket, 14 - 2.0 x 40 mm, class 10.9
9шт.
163884A1
SEAL KIT
KIT - seal, includes Refs. 5 - 8 and 25, replaces 161044A1, seal kit
1шт.
Выбрано товаров: 36
