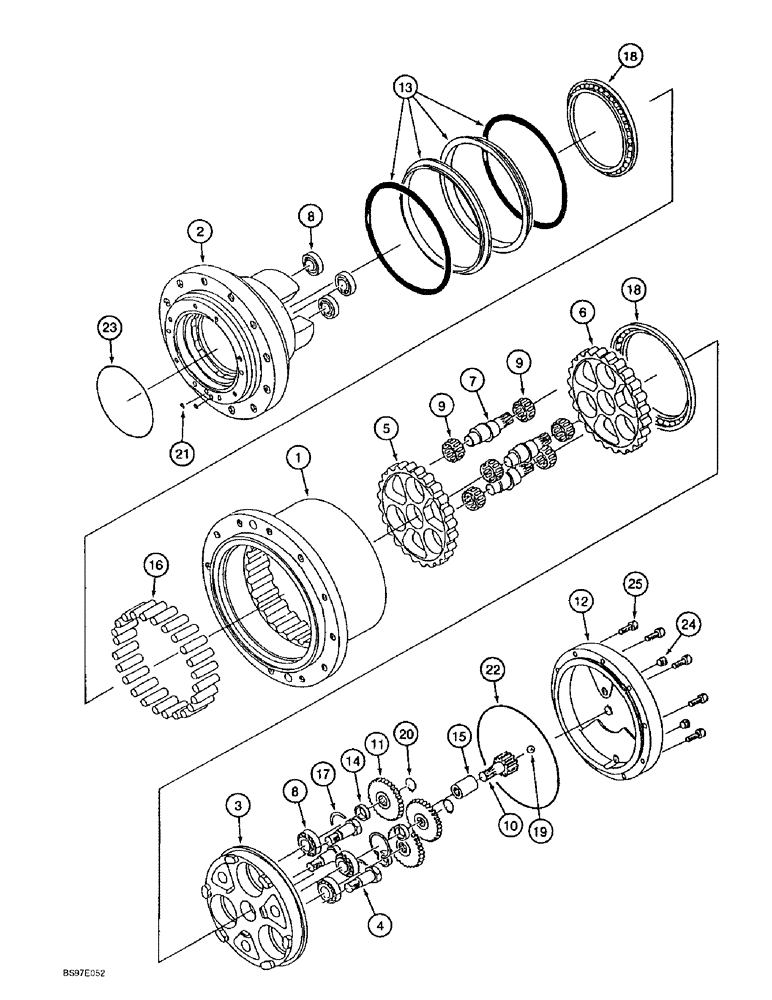

Запчасти Case 9010B (6-006) - FINAL DRIVE TRANSMISSION ASSY, STD MODELS P.I.N. DAC0101222 & AFTER, ALL SPECIAL APPLICATION MODELS (06) - POWER TRAIN

LN00072

REDUCER

TRANSMISSION ASSEMBLY - final drive, Includes: Ref. 1 - 25, Replaces 164693A1

2шт.

1

165294A1

HUB

- final drive

1шт.

165303A1

HUB ASSY.

SPINDLE ASSEMBLY - final drive, Includes: Ref. 2 and 3

1шт.

Part of spindle kit P/N 165271A1.

1шт.

2

NSS

NOT SOLD SEPARAT

SPINDLE - final drive

1шт.

3

NSS

NOT SOLD SEPARAT

FLANGE - holder

1шт.

4

165290A1

BOLT

BOLT - reamer-type

3шт.

Part of spindle kit P/N 165271A1.

1шт.

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - revolving, Includes: Ref. 5 and 6

1шт.

Part of revolving gear kit P/N 165272A1.

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR A - revolving

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR B - revolving

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT - crank

3шт.

Part of revolving gear kit P/N 165272A1.

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING - tapered roller

6шт.

Part of revolving gear kit P/N 165272A1.

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - needle

6шт.

Part of revolving gear kit P/N 165272A1.

1шт.

10

165228A1

GEAR

- input (sun gear)

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - transmission, supper gear

1шт.

Part of gear kit P/N 165273A1.

1шт.

12

165306A1

COVER

- transmission

1шт.

13

153861A1

SEAL

- floating

2шт.

14

160983A1

GUIDE RING

SPACER - spur gear

3шт.

15

165233A1

COUPLING

- gear

1шт.

16

165244A1

COTTER PIN

PIN - aligning

24шт.

17

160861A1

REPAIR KIT

RING - lock

3шт.

18

161057A1

BEARING, BALL,220mm ID x 276mm OD x 26mm W

BEARING - ball

2шт.

19

160979A1

BALL

- steel

1шт.

20

800-1135

SNAP RING,M35, Ext

Retaining M35, Ext

3шт.

21

154451A1

O-RING

- spindle assembly

2шт.

22

165223A1

O-RING

- cover

1шт.

23

165224A1

O-RING

- seal

1шт.

24

151033A1

PLUG

- hex socket, special, cover

2шт.

25

165292A1

BOLT

BOLT - hex, special, cover

10шт.

165271A1

KIT

- spindle, includes P/N 165303A1 and Ref. 4

1шт.

165272A1

GEAR-SET

KIT - revolving gear, includes revolving gear assembly (NSS) and Ref. 7 - 9

1шт.

165273A1

GEAR-SET

KIT - supper gear, includes transmission gear assembly (NSS)

1шт.
