Запчасти Case 9010B (6-004) - FINAL DRIVE TRANSMISSION ASSEMBLY, STANDARD MODELS PRIOR TO P.I.N. DAC0101222 (06) - POWER TRAIN

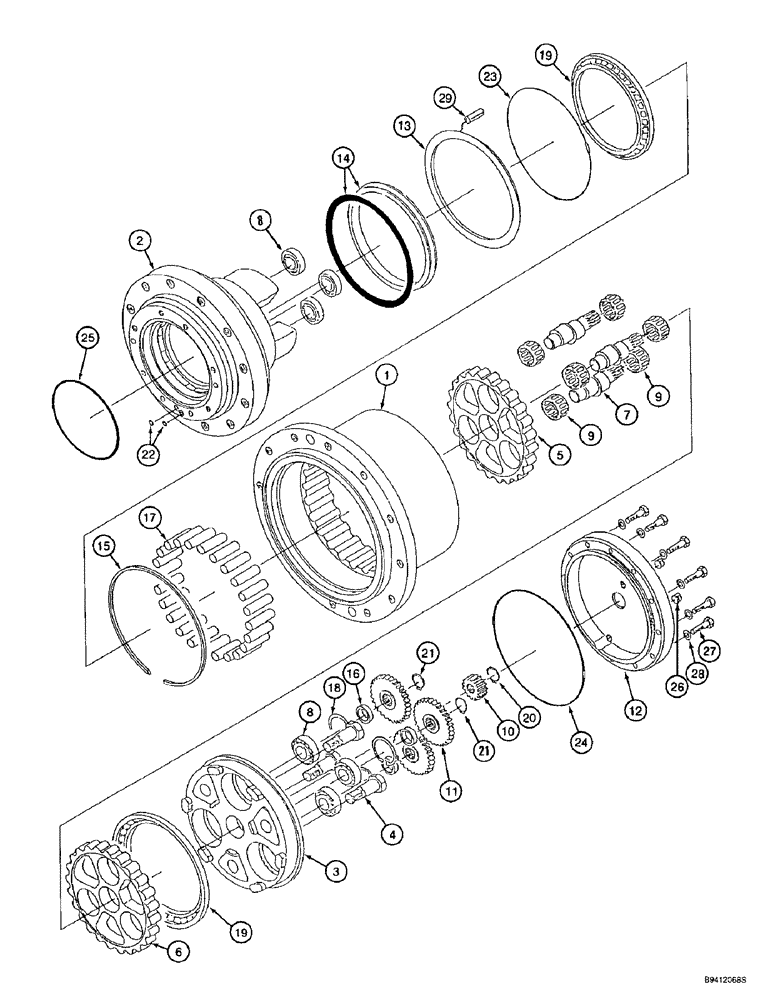

Схема запчастей Case 9010B - (6-004) - FINAL DRIVE TRANSMISSION ASSEMBLY, STANDARD MODELS PRIOR TO P.I.N. DAC0101222 (06) - POWER TRAIN
27
24
20
5
18
23
21
26
8
10
19
7
17
14
11
3
16
2
28
13
1
6
8
9
4
19
15
22
12
21
9
25
29

Артикул

Название

Примечание

Количество

160894A1

GEAR

TRANSMISSION ASSEMBLY - final drive, Includes: Ref. 1 - 29

2шт.

1

160895A1

HUB

- final drive

1шт.

160889A1

SPINDLE

ASSEMBLY - final drive

1шт.

160836A1

HUB

SPINDLE ASSEMBLY - partial, final drive, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

SPINDLE - final drive

1шт.

3

NSS

NOT SOLD SEPARAT

FLANGE - holder

1шт.

4

160970A1

BOLT

- reamer-type

3шт.

160890A1

GEAR

ASSEMBLY - revolving

1шт.

160819A1

GEAR

ASSEMBLY - partial, revolving, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR A - revolving

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR B - revolving

1шт.

7

160837A1

CAMSHAFT

SHAFT - crank

3шт.

8

160962A1

TAPERED BEARING,35 mm ID x 72 mm OD x 28 mm

BEARING - tapered roller

6шт.

9

160964A1

BEARING, NEEDLE,43 mm ID x 63 mm OD x 30 mm

BEARING - needle

6шт.

10

160820A1

PINION

GEAR - input (sun gear)

1шт.

11

161039A1

GEAR

ASSEMBLY - transmission, includes 3 spur-cut planet gears

1шт.

12

160980A1

COVER

- transmission

1шт.

160891A1

SEAL

ASSEMBLY - floating, Includes: Ref. 13 and 14

1шт.

13

160981A1

GUIDE RING

SPACER - face seal

1шт.

14

161318A1

SEAL KIT

KIT - seal, floating, replaces 153861A1, seal kit

1шт.

15

160982A1

RING

- retaining

1шт.

16

160983A1

GUIDE RING

SPACER - spur gear

3шт.

17

160860A1

PIN

- aligning

24шт.

18

160861A1

REPAIR KIT

RING - lock

3шт.

19

161057A1

BEARING, BALL,220mm ID x 276mm OD x 26mm W

BEARING - ball

2шт.

20

800-1128

SNAP RING,M28, Ext

RING - external retaining, No. 28

1шт.

21

800-1135

SNAP RING,M35, Ext

Retaining M35, Ext

3шт.

22

154455A1

O-RING

- spindle assembly

2шт.

Part of seal kit P/N 163885A1.

1шт.

23

155005A1

O-RING

- sealing

1шт.

Part of seal kit P/N 163885A1.

1шт.

24

160807A1

O-RING

- cover

1шт.

Part of seal kit P/N 163885A1.

1шт.

25

155213A1

O-RING

- seal

1шт.

Part of seal kit P/N 163885A1.

1шт.

26

151033A1

PLUG

- hex socket, special, cover

1шт.

27

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 45 mm, class 10.9, Cover

12шт.

28

156189A1

LOCK WASHER

- lock

12шт.

29

738-1414

LOCK PIN,4mm OD x 14mm L, Slotted

PIN - roll, 4 x 14 mm

1шт.

163885A1

SEAL KIT

KIT - seal, Includes: Ref. 22 - 25

1шт.

Выбрано товаров: 40
