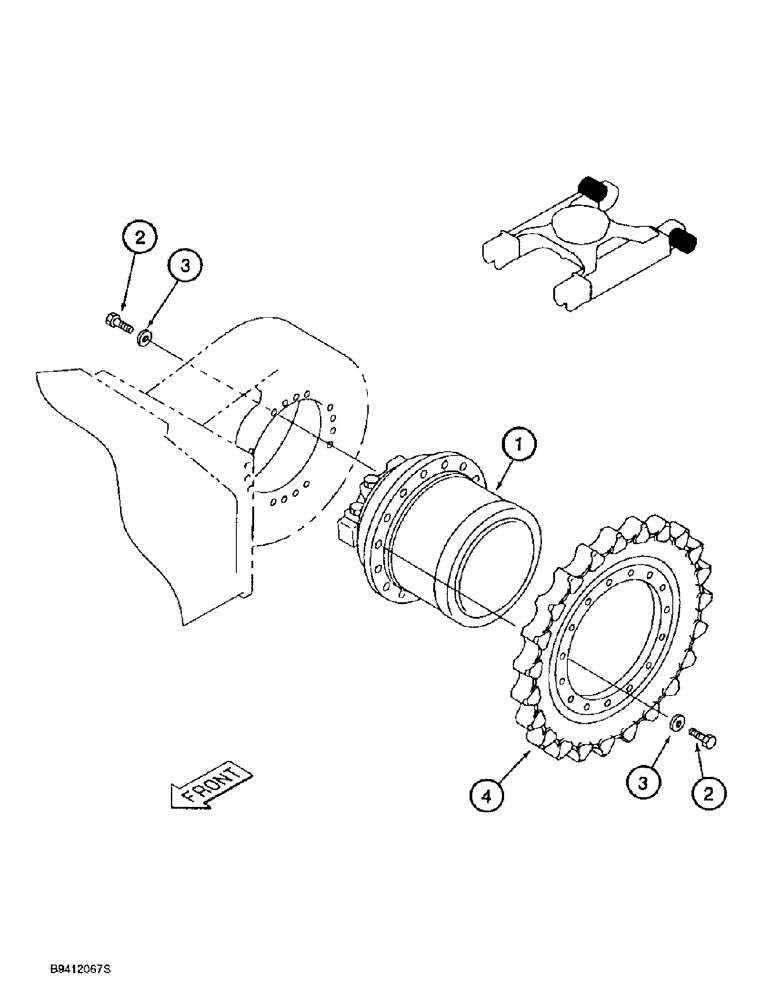

Запчасти Case 9010B (6-002) - TRACK DRVE ASSY,STD MODLS PRIOR TO PIN DAC0101222,STD MODLS PIN DAC0101222 & AFT,ALL SPECL APPL MODL (06) - POWER TRAIN

1

161025A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, Serial Range: -DAC0101221

2шт.

160892A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, see parts list Figures 6-8, 6-12, and 6-16

1шт.

160894A1

GEAR

TRANSMISSION ASSEMBLY - final drive, see parts list Figure 6-4

1шт.

2

626-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

62шт.

3

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

62шт.

4

150866A1

WHEEL GEAR

SPROCKET - track drive

2шт.

1

164541A1

MOTO-REDUCTION GEAR

MOTOR ASSEMBLY - track drive, standard models, all application models, Start Serial: DAC0101222

2шт.

164691A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, see parts list Figures 6-10, 6-14, and 6-18, standard models, all application models

1шт.

LN00072

REDUCER

TRANSMISSION ASSEMBLY - final drive, see parts list Figure 6-6, standard models, all application models, Replaces 164693A1

1шт.

2

626-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

Standard models, All application models Hex, M16 x 45, 10.9, Full Thd

62шт.

3

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special, standard models, all application models

62шт.

4

150866A1

WHEEL GEAR

SPROCKET - track drive, standard models, all application models

2шт.
