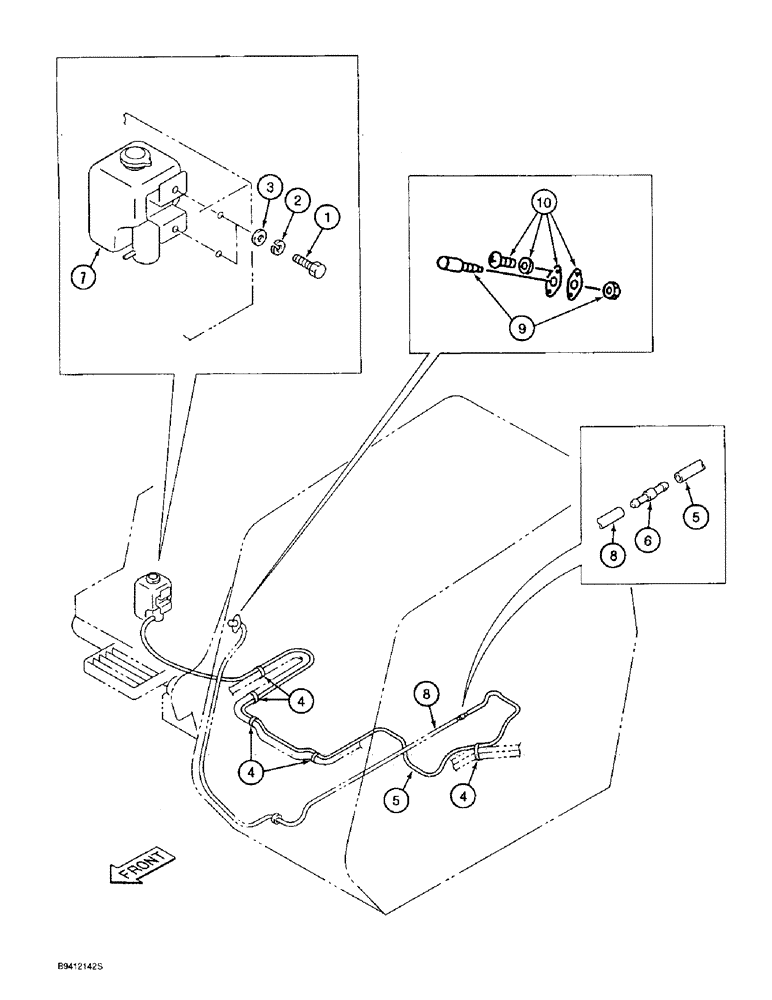

Запчасти Case 9010B (4-032) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

1

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

2

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12 x 1.6 mm

2шт.

4

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

5шт.

5

152829A1

HOSE,4 mm ID, 7 mm OD, 3500 mm Length

TUBE - vinyl, 3500 mm (137-3/4 inch) long

1шт.

6

152824A1

ADAPTER

CONNECTOR - special, washer tube

1шт.

7

161374A1

RESERVOIR ASSY.

RESERVOIR - washer fluid, windshield

1шт.

8

161343A1

HOSE

- 1250 mm (49-3/16 inch) long

1шт.

9

161344A1

DIFFUSER

NOZZLE - special

1шт.

10

161345A1

ADAPTER

- nozzle, special

1шт.
