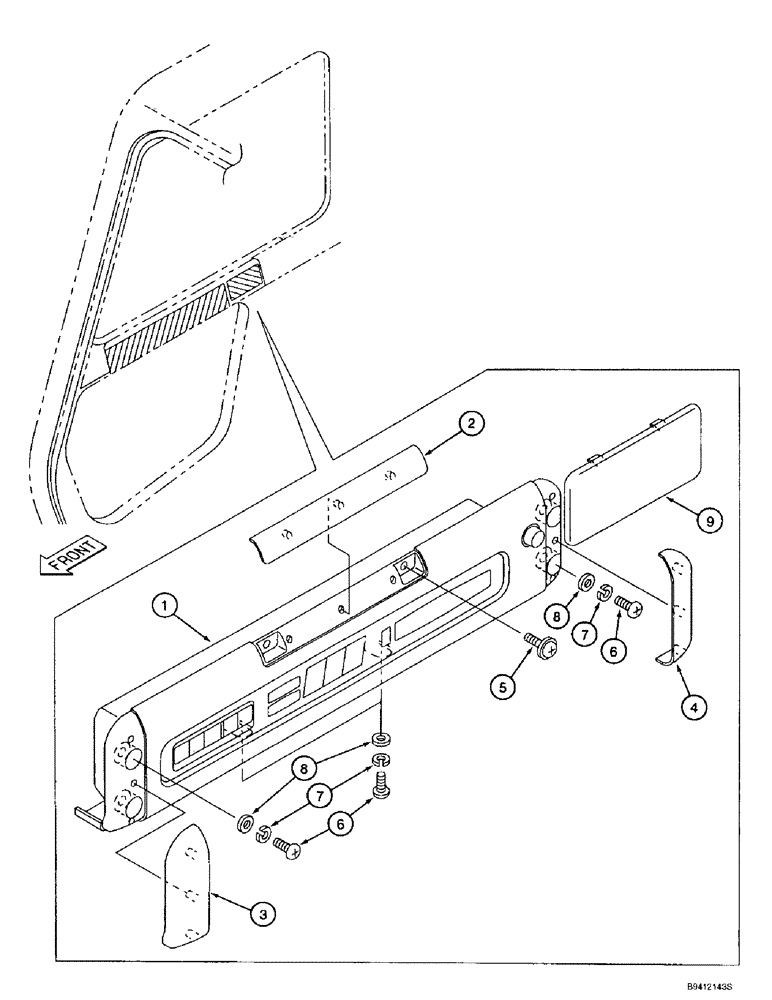

Запчасти Case 9010B (4-022) - INSTRUMENT CLUSTER AND MOUNTING (04) - ELECTRICAL SYSTEMS

164586A1

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instrument, replaces 159929A1 and 161748A1, instrument cluster assemblies, Includes: Ref. 1 - 4

1шт.

164586A1R

REMAN-ELECT MONITOR

9010B CASE CRAWLER EXCAVATOR, CLUSTER ASSEMBLY (1/95-)

1шт.

164586A1C

CORE-MONITOR

Return Number

1шт.

1

159930A1

BOARD, PRINTED CIRCU

CLUSTER - instrument

1шт.

2

159219A1

CAP

- instrument cluster

1шт.

3

159218A1

CAP

- instrument cluster

1шт.

4

159236A1

CAP

- instrument cluster

1шт.

5

151679A1

SCREW,Phil Pan Hd, M4 x 12mm, W/ Wshr

- special

2шт.

6

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

- machine, pan Phillips, 5 - 0.8 x 16 mm

6шт.

7

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

6шт.

8

159601A1

WASHER

- flat, special

6шт.

9

159616A1

COVER

- special

1шт.
