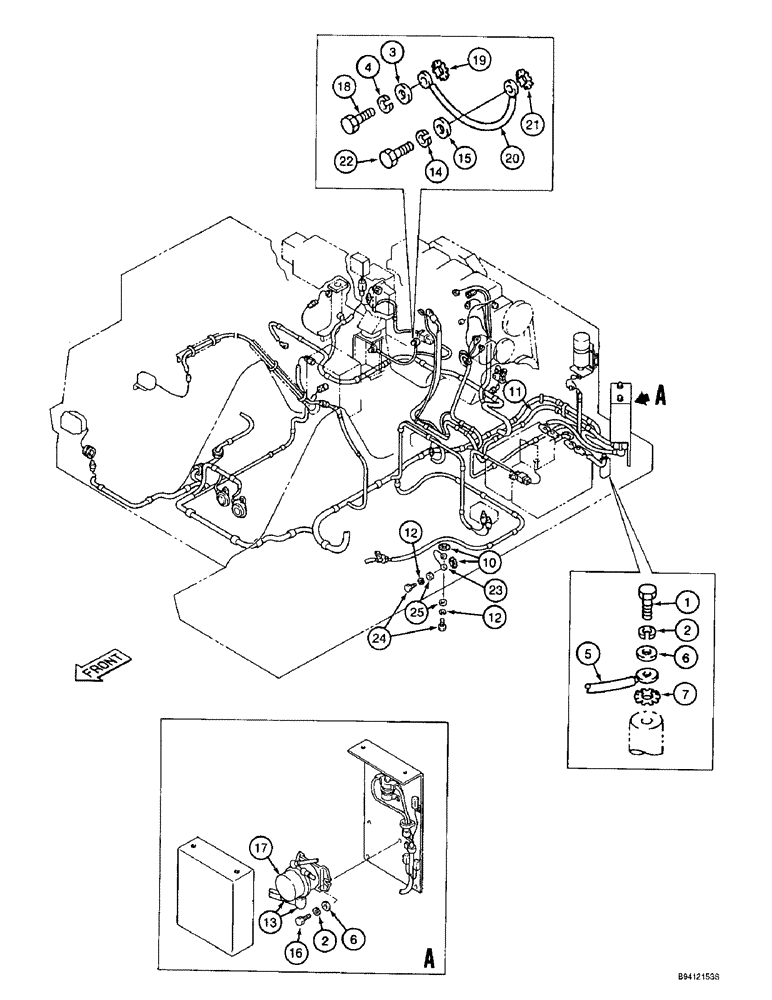

Запчасти Case 9010B (4-018) - GROUND CABLES AND BATTERY RELAY (04) - ELECTRICAL SYSTEMS

1

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

1шт.

2

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

4

892-11010

LOCK WASHER,M10

1шт.

5

161650A1

CABLE ASSY.

CABLE - electrical, battery ground

1шт.

7

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.

10

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

2шт.

11

161652A1

CABLE ASSY.

CABLE - battery, special, relay to starter, Serial Range: -DAC01#2001

1шт.

11

165480A1

CABLE ASSY.

CABLE - battery, special, relay to starter, Start Serial: DAC01#2001

1шт.

12

892-11006

LOCK WASHER,M6

WASHER, LOCK, , Used on Standard Models M6, Serial Range: -DAC0101205

2шт.

13

159185A1

CAP

- terminal, Serial Range: -DAC01#2001

2шт.

13

162212A1

TERMINAL CONNECTOR

- terminal, Start Serial: DAC01#2001

2шт.

14

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

17

159897A1

RELAY

- battery

1шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

1шт.

19

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

20

163250A1

CABLE ASSY.

CABLE - electrical, engine ground

1шт.

21

893-11012

LOCK WASHER,Ext Tooth, M12

WASHER, LOCK, Ext Tooth, M12

1шт.

22

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

1шт.

23

159912A1

CABLE ASSY.

STRAP - ground

1шт.

24

164796A1

BOLT,High Strength, Hex, M6 x 10mm, W/ LW

BOLT - special, replaces 627-6008, bolt

2шт.

25

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12 x 1.6 mm, Used on standard models, Serial Range: -DAC0101205

2шт.

16

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

3шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1шт.
