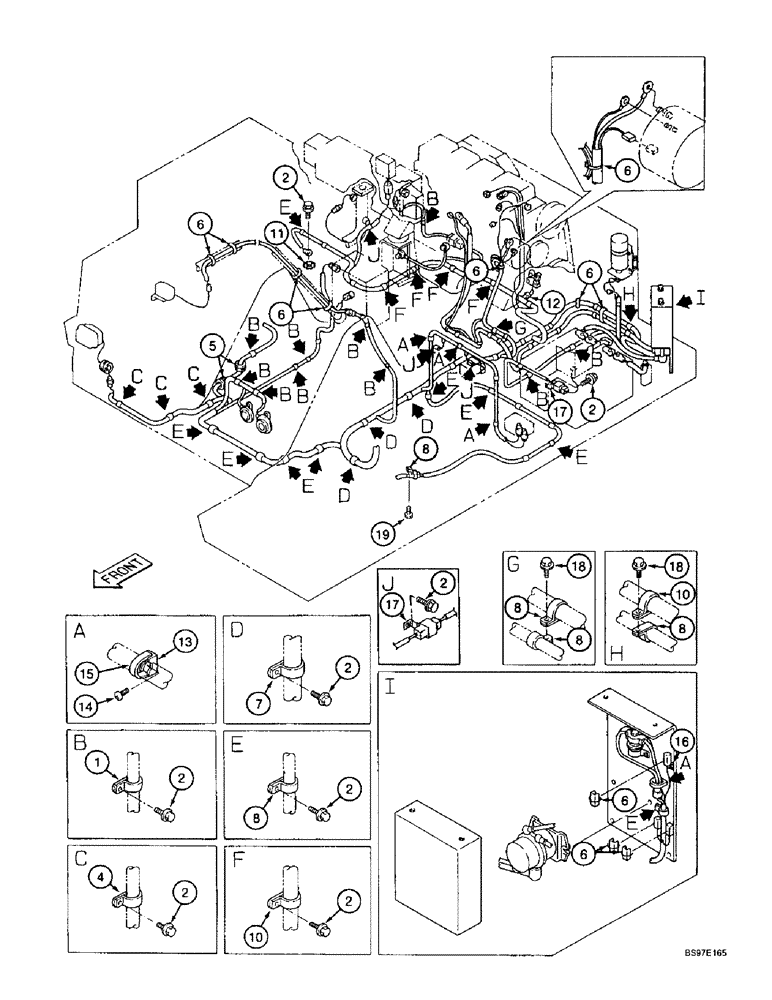

Запчасти Case 9010B (4-016) - MAIN ELECTRICAL SYSTEM CLAMPING,* P.I.N. DAC01#2001 AND AFTER (04) - ELECTRICAL SYSTEMS

1

153039A1

CLAMP

- P-type, 12 mm ID

12шт.

2

161735A1

SPECIAL BOLT

BOLT - special

60шт.

4

157806A1

COLLAR

CLAMP - P-type

3шт.

5

150520A1

GROMMET

- rubber

2шт.

6

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

7

158970A1

COLLAR

CLAMP - P-type

6шт.

8

156462A1

COLLAR

CLAMP - P-type

24шт.

10

159024A1

COLLAR

CLAMP - P-type

13шт.

11

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

1шт.

12

161489A1

GROMMET

- rubber, special

1шт.

13

150860A1

COLLAR

BRACKET - support

7шт.

14

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

7шт.

15

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

7шт.

16

158963A1

CLIP

- wire

1шт.

17

165405A1

CLIP

- wire

4шт.

18

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

BOLT - special

4шт.

19

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

1шт.
