Запчасти Case 9010B (4-014) - MAIN ELECTRICAL SYSTEM CLAMPING, PRIOR TO P.I.N. DAC01#2001 (04) - ELECTRICAL SYSTEMS

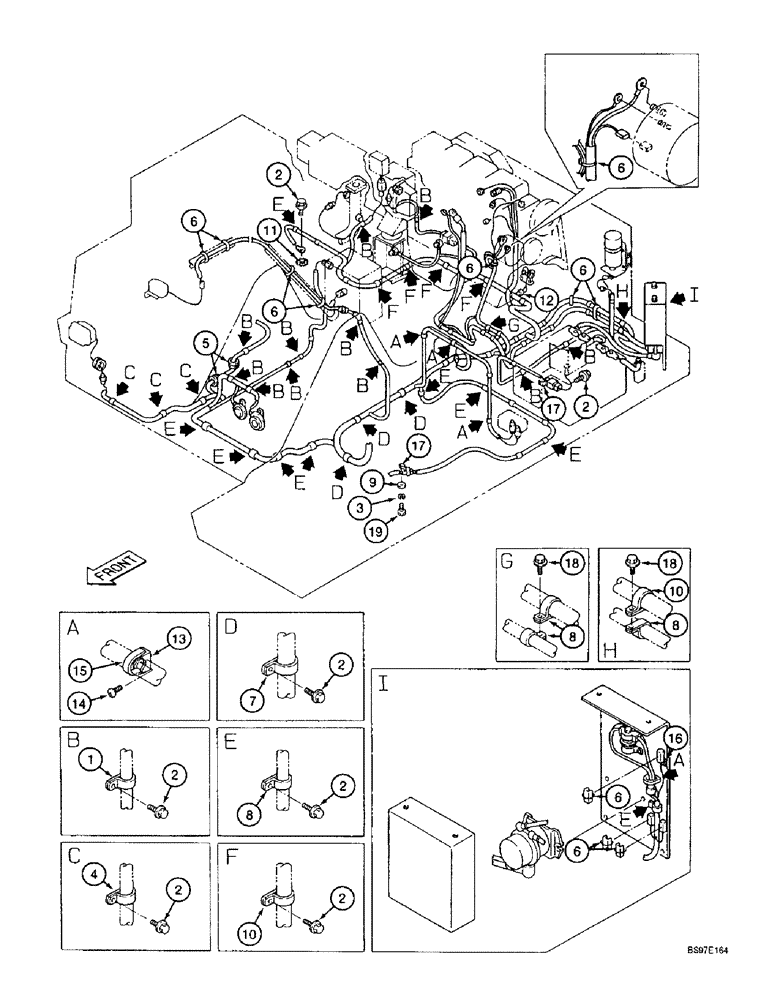

Схема запчастей Case 9010B - (4-014) - MAIN ELECTRICAL SYSTEM CLAMPING, PRIOR TO P.I.N. DAC01#2001 (04) - ELECTRICAL SYSTEMS
2
16
8
19
8
2
17
6
6
2
5
7
13
2
15
2
8
4
11
6
6
10
2
6
6
9
14
17
10
6
12
2
18
18
3
1

Артикул

Название

Примечание

Количество

1

153039A1

CLAMP

- P-type, 12 mm ID

13шт.

2

161735A1

SPECIAL BOLT

BOLT - special

59шт.

3

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

4

157806A1

COLLAR

CLAMP - P-type

3шт.

5

150520A1

GROMMET

- rubber

2шт.

6

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

7

158970A1

COLLAR

CLAMP - P-type

6шт.

8

156462A1

COLLAR

CLAMP - P-type

24шт.

10

159024A1

COLLAR

CLAMP - P-type

13шт.

11

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

1шт.

12

161489A1

GROMMET

- rubber, special

1шт.

13

150860A1

COLLAR

BRACKET - support

7шт.

14

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

7шт.

15

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

7шт.

16

158963A1

CLIP

- wire

1шт.

17

158962A1

CLIP

- harness

2шт.

18

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

BOLT - special

6шт.

19

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm, class 10.9

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

10шт.

Выбрано товаров: 19
