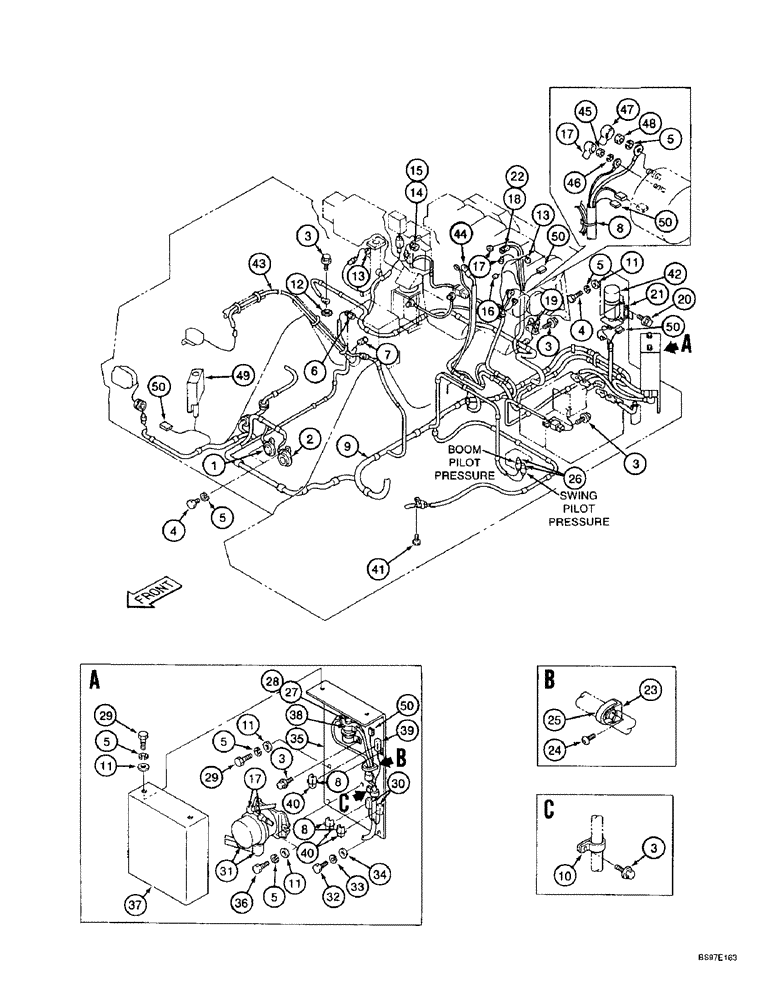

Запчасти Case 9010B (4-010) - MAIN ELECTRICAL WIRING HARNESS AND CONNECTIONS, P.I.N. DAC01#2001 AND AFTER (04) - ELECTRICAL SYSTEMS

1

159949A1

HORN

- electric, frequency 350HZ, 105-115db

1шт.

2

159948A1

HORN

- electric, frequency 310HZ, 108-120db

1шт.

3

161735A1

SPECIAL BOLT

BOLT - special

60шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm, class 10.9

6шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.

6

159900A1

PRESSURE SWITCH

SWITCH - pressure, travel pilot pressure

1шт.

7

159899A1

PRESSURE SWITCH

SWITCH - pressure, upper pilot pressure

1шт.

8

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

9

165311A1

HARNESS

- electrical wiring, Serial Range: -DAC0102378

1шт.

9

168820A1

HARNESS

- electrical wiring - Refer to SB, NEX SB 001 01, Start Serial: DAC0102379

1шт.

10

156462A1

COLLAR

CLAMP - P-type

1шт.

12

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

1шт.

13

159147A1

SENSOR

- temperature, hydraulic oil

2шт.

Ref. 13, 159147A1 sensor is used as both the hydraulic oil temperature sensor and as the engine coolant temperature sensor. On the artwork, the Ref. 13 bubble farthest to the left is for the engine coolant temperature sensor location. It screws into Ref. 35 reducer bushing, 153493A1, shown on Figure 2-64. The Ref. 13 pictured farthest to the right is the hydraulic oil temperature sensor.

1шт.

14

163658A1

THERMOSTATIC SWITCH

SWITCH - temperature, replaces 159148A1 switch, hydraulic oil

1шт.

15

159901A1

SEALING WASHER

WASHER - sealing

1шт.

16

L126191

THERMOSTATIC SWITCH

THERMOCOUPLE - circuit breaking, includes lead wires, cold start, see Figure 4-34, Ref. 10

1шт.

17

159173A1

CAP

- terminal

4шт.

18

116992A2

TUBE,0.125 mm OD

- nylon, 2693 mm (106 inch) long, cut from L60539X bulk tube, see below

1шт.

19

162218A1

ALARM

- travel

1шт.

20

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

21

161737A1

BRACKET

- special

1шт.

22

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - atomizer, component parts not serviced separately

1шт.

23

150860A1

COLLAR

BRACKET - support

1шт.

24

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

1шт.

25

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

26

159599A1

PRESSURE SWITCH

SWITCH - pressure

2шт.

27

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

28

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

29

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

3шт.

30

159903A1

FUSE

- 25 amps, starter relay

2шт.

31

162212A1

TERMINAL CONNECTOR

- terminal

2шт.

32

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

2шт.

33

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

34

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

35

161738A1

SUPPORT

BRACKET - electrical components

1шт.

37

161739A1

COVER

- electrical components bracket

1шт.

38

159898A1

RELAY

- starter - Refer to SB, NEX SB 001 01

1шт.

A second relay was added at S/N DAC0102379. The second relay is also 159898A1. The old circuit supplies 24 volts to the starter and fuel solenoid using a single relay. The new setup supplies power through separate relays. The new main harness, 168820A1, was adopted to accomodate the additional relay. A clamp, 156462A1, and relay mounting bracket, 168833A1, were also adopted at this time.

1шт.

39

159902A1

FUSE

65A fuse - starter, - starter relay

1шт.

L60539X

TUBE

- bulk, nylon, 3 (1/8) ID x 4267 mm (168 inch) long

1шт.

40

165407A1

COVER

- wire

3шт.

41

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

1шт.

42

L126094

VALVE

ASSEMBLY - solenoid, component parts not serviced separately

1шт.

43

159913A1

HARNESS

- wiring

1шт.

44

159185A1

CAP

- terminal

1шт.

45

829-1405

NUT,M5, Cl 10

- hex, 5 mm - 0.8, class 10

1шт.

46

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

47

159184A1

CAP

- terminal

1шт.

48

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

49

161374A1

RESERVOIR ASSY.

RESERVOIR - washer fluid, windshield

1шт.

50

231959A1

DIODE

- electrical

5шт.

36

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

5шт.
