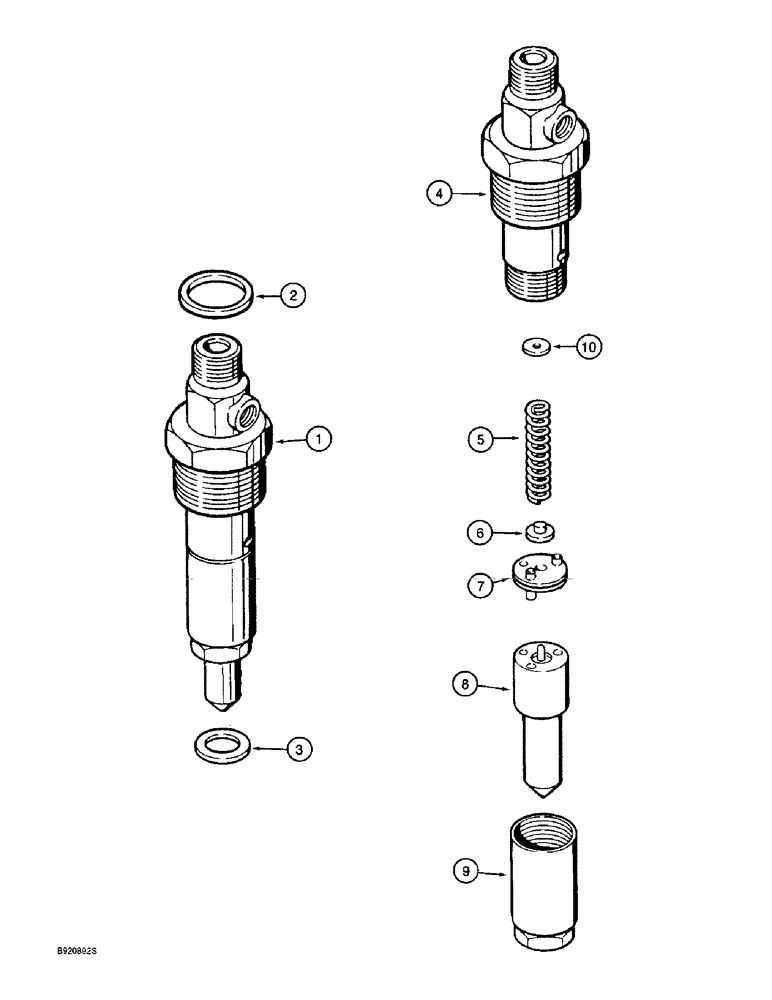

Запчасти Case 9010B (3-026) - FUEL INJECTION NOZZLE, 4TA-390 ENGINE, PRIOR TO P.I.N. DAC01#2001 (03) - FUEL SYSTEM

1

J919322

INJECTOR ASSY.

NOZZLE ASSEMBLY - fuel injection (CAV), Includes: Ref. 2 - 9

4шт.

1

J919343

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, 7 mm diameter tip (Bosch), Includes: Ref. 2 - 9

4шт.

1

JR919343

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

4шт.

1

JC919343

CORE-FUEL INJECTOR

Return Part Number, Injection Pump

4шт.

2

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, Serial Range: body-nut

1шт.

3

J906659

SEAL

SEAL - injector nozzle, 7 mm injector tip

1шт.

Whenever a nozzle is removed from the cylinder head, J906659 seal must be replaced.

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - injector

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - nozzle pressure (CAV injectors)

1шт.

5

J905152

SPRING

SPRING - nozzle pressure (Bosch injectors)

1шт.

6

NSS

NOT SOLD SEPARAT

SEAT - nozzle pressure spring (CAV injectors)

1шт.

6

J905153

SPINDLE

SEAT - nozzle pressure spring (Bosch injectors)

1шт.

7

NSS

NOT SOLD SEPARAT

STOP - nozzle valve (CAV injectors)

1шт.

7

J905154

PLATE

STOP - nozzle valve (Bosch injectors)

1шт.

8

NSS

NOT SOLD SEPARAT

TIP - nozzle injector

1шт.

9

NSS

NOT SOLD SEPARAT

NUT - cap, nozzle tip (CAV injectors)

1шт.

9

A48201

NUT

NUT - cap, nozzle tip (Bosch injectors)

1шт.

A48186

KIT

KIT - shim, nozzle opening pressure, starter kit, use one shim of the thickness required (used with CAV and Bosch injectors), Includes: Ref. 10

1шт.

10

1806233C1

SHIM,1.00mm Thk

SHIM, , Nozzle 1.00mm Thk

5шт.

10

1806234C1

SHIM,1.04mm Thk

SHIM, , Nozzle 1.04mm Thk

5шт.

10

1806235C1

SHIM,1.08mm Thk

SHIM, , Nozzle 1.08mm Thk

5шт.

10

1806236C1

SHIM,1.10mm Thk

SHIM, , Nozzle 1.10mm Thk

5шт.

10

1806237C1

SHIM,1.14mm Thk

SHIM, , Nozzle 1.14mm Thk

5шт.

10

1806238C1

SHIM,1.18mm Thk

SHIM, , Nozzle 1.18mm Thk

5шт.

10

1806239C1

SHIM,1.20mm Thk

SHIM, , Nozzle 1.20mm Thk

5шт.

10

1806240C1

SHIM,1.24mm Thk

SHIM, , Nozzle 1.24mm Thk

5шт.

10

1806241C1

SHIM,1.28mm Thk

SHIM, , Nozzle 1.28mm Thk

5шт.

10

1806242C1

SHIM,1.30mm Thk

SHIM, , Nozzle 1.30mm Thk

5шт.

10

1806243C1

SHIM,1.34mm Thk

SHIM, , Nozzle 1.34mm Thk

5шт.

10

1806244C1

SHIM,1.38mm Thk

SHIM, , Nozzle 1.38mm Thk

5шт.

10

1806245C1

SHIM,1.40mm Thk

SHIM, , Nozzle 1.40mm Thk

5шт.

10

1806246C1

SHIM,1.44mm Thk

SHIM, , Nozzle 1.44mm Thk

5шт.

10

1806247C1

SHIM,1.48mm Thk

SHIM, , Nozzle 1.48mm Thk

5шт.

10

1806248C1

SHIM,1.50mm Thk

SHIM, , Nozzle 1.50mm Thk

5шт.

10

1806249C1

SHIM,1.54mm Thk

SHIM, , Nozzle 1.54mm Thk

5шт.

10

1806250C1

SHIM,1.58mm Thk

SHIM, , Nozzle 1.58mm Thk

5шт.

10

1806251C1

SHIM,1.60mm Thk

SHIM, , Nozzle 1.60mm Thk

5шт.

10

1806252C1

SHIM,1.64mm Thk

SHIM, , Nozzle 1.64mm Thk

5шт.

10

1806253C1

SHIM,1.68mm Thk

SHIM, , Nozzle 1.68mm Thk

5шт.

10

1806254C1

SHIM,1.70mm Thk

SHIM, , Nozzle 1.70mm Thk

5шт.

10

1806255C1

SHIM,1.74mm Thk

SHIM, , Nozzle 1.74mm Thk

5шт.

10

1806256C1

SHIM,1.78mm Thk

SHIM, , Nozzle 1.78mm Thk

5шт.

10

1806257C1

SHIM,1.80mm Thk

SHIM, , Nozzle 1.80mm Thk

5шт.

10

1806258C1

SHIM,1.84mm Thk

SHIM, , Nozzle 1.84mm Thk

5шт.

10

1806259C1

SHIM,1.88mm Thk

SHIM, , Nozzle 1.88mm Thk

5шт.

10

1806260C1

SHIM,1.90mm Thk

SHIM, , Nozzle 1.90mm Thk

5шт.

10

1806261C1

SHIM,1.94mm Thk

SHIM, , Nozzle 1.94mm Thk

5шт.

10

1806262C1

SHIM,1.98mm Thk

SHIM, , Nozzle 1.98mm Thk

5шт.
