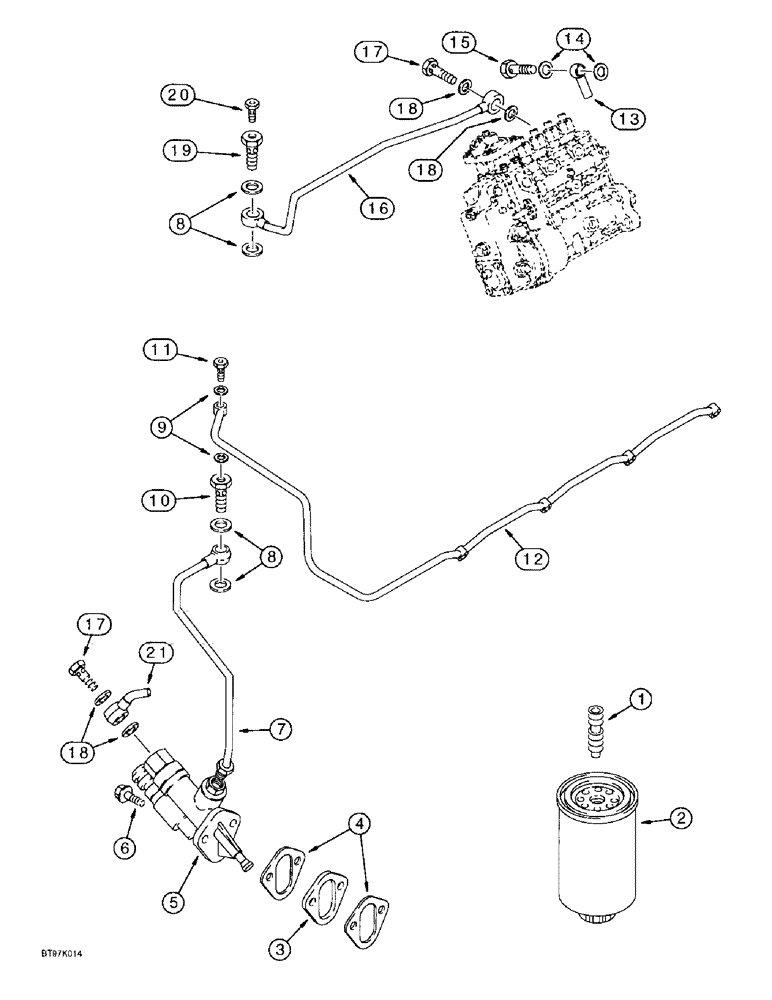

Запчасти Case 9010B (3-018) - FUEL FILTER AND LIFT PUMP, 4TA-390 EMISSIONS CERTIFIED ENGINE, *P.I.N. DAC01#2001 AND AFTER (03) - FUEL SYSTEM

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter

1шт.

2

J931062

FILTER

- fuel

1шт.

3

J914284

SPACER

- fuel transfer pump mounting

1шт.

4

J931348

GASKET

- mounting, fuel transfer pump

2шт.

5

J933259

PUMP

- fuel transfer, replaces J933212 pump

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

2шт.

7

J917280

FUEL TUBE,8 mm OD x 231 mm L

TUBE - supply, fuel pump to fuel filter

1шт.

8

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- sealing

2шт.

10

J916361

BANJO BOLT

BOLT - banjo connector, 12 - 1.5 x 24 mm

1шт.

11

J924726

BANJO BOLT

VALVE - check

1шт.

12

J929558

MANIFOLD

TUBE - manifold, fuel drain

1шт.

13

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.

15

J912886

VALVE

- overflow

1шт.

16

J932035

FUEL TUBE,8 mm OD x 349 mm L

TUBE - supply, fuel

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

BOLT - banjo connector

2шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

4шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex, special

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW - hex, special, vent

1шт.

21

J933320

FUEL TUBE,10 mm OD x 60, 15 mm L

TUBE - banjo, fuel supply

1шт.
