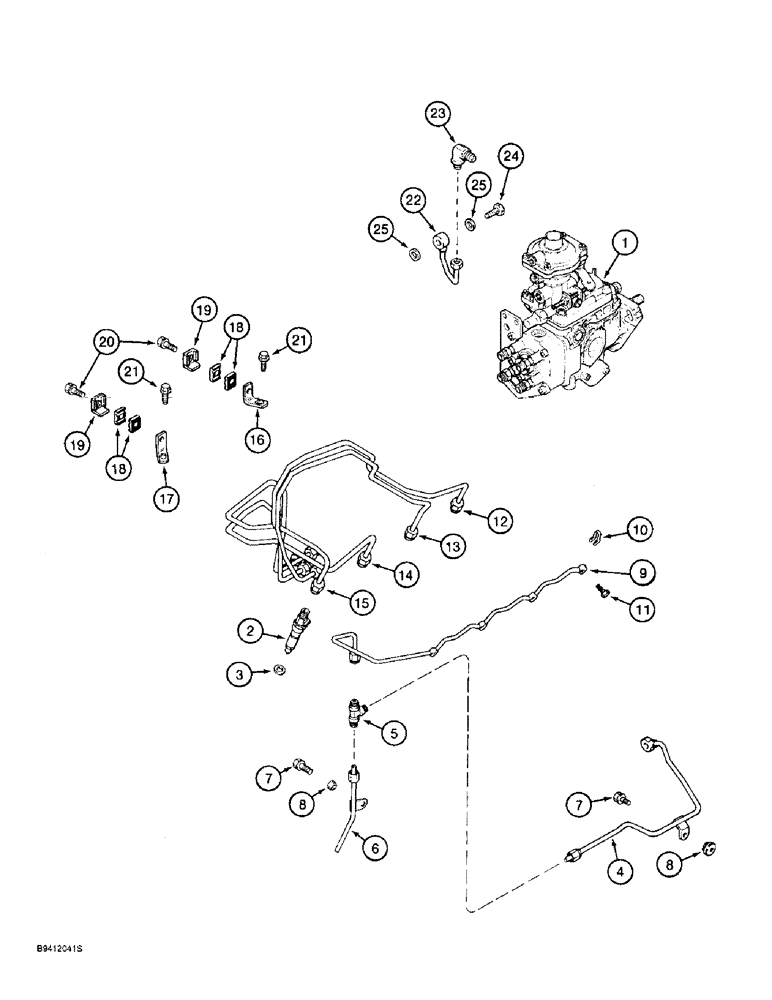

Запчасти Case 9010B (3-012) - FUEL INJECTION SYSTEM, 4TA-390 ENGINE, PRIOR TO P.I.N. DAC01#2001 (03) - FUEL SYSTEM

1

J917021

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, parts list see Figure 3-22

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, see Figure 3-26

4шт.

3

J906659

SEAL

- injector nozzle, 7 mm injector tip, see Figure 3-26, Ref. 3

4шт.

4

J905701

FUEL TUBE,4.76 mm OD

TUBE - fuel drain, injection pump to tee

1шт.

Fuel tubes, Refs. 4 and 6, bolt to tappet cover. See Figure 2-70, Ref. 21.

1шт.

5

222-121

TEE,3/16", Flex Tubing

fuel drain tubes (Remove and discard nuts and sleeves before assembly) 3/16", Flex Tubing

1шт.

6

J905692

FUEL TUBE

TUBE - fuel return, tee to fuel tank

1шт.

Fuel tubes, Refs. 4 and 6, bolt to tappet cover. See Figure 2-70, Ref. 21.

1шт.

7

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm, Fuel tube brace through tappet cover to cylinder block

2шт.

8

J900267

SEAL

- cover bolt

2шт.

9

J909695

FUEL TUBE

TUBE - manifold, fuel drain, tee to fuel tank return

1шт.

10

J903380

SEAL

- connector

4шт.

11

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special, Fuel drain manifold M6 x 1 x 14.3

4шт.

12

J904204

FUEL TUBE,2 mm ID x 6.4 mm OD x 701 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

13

J904205

FUEL TUBE,2 mm ID x 6.4 mm OD x 701.5 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

14

J904206

FUEL TUBE,2 mm ID x 6.4 mm OD x 701 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

15

J904207

FUEL TUBE,2 mm ID x 6.4 mm OD x 701 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

16

J930689

SUPPORT

BRACKET - fuel tube, replaces J919294 bracket

1шт.

17

J930688

SUPPORT

BRACKET - fuel tube, replaces J919292 bracket

1шт.

18

J917746

CLAMP

- fuel tube

4шт.

19

CURJ904711

CLAMP

BRACKET - fuel tube

2шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

2шт.

21

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Brackets to cylinder head Hex Flg Hd, M8 x 1.25 x 25

2шт.

22

J910004

FUEL TUBE,4.76 mm OD x 101.9 mm L

TUBE - injection pump aneroid

1шт.

23

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

- 90 degree, compression, 3/16 tube OD x 1/8 inch PT

1шт.

24

J924724

BANJO BOLT

- banjo, special, aneroid tube

1шт.

25

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- sealing

2шт.
