Запчасти Case 9010B (3-002) - FUEL TANK (03) - FUEL SYSTEM

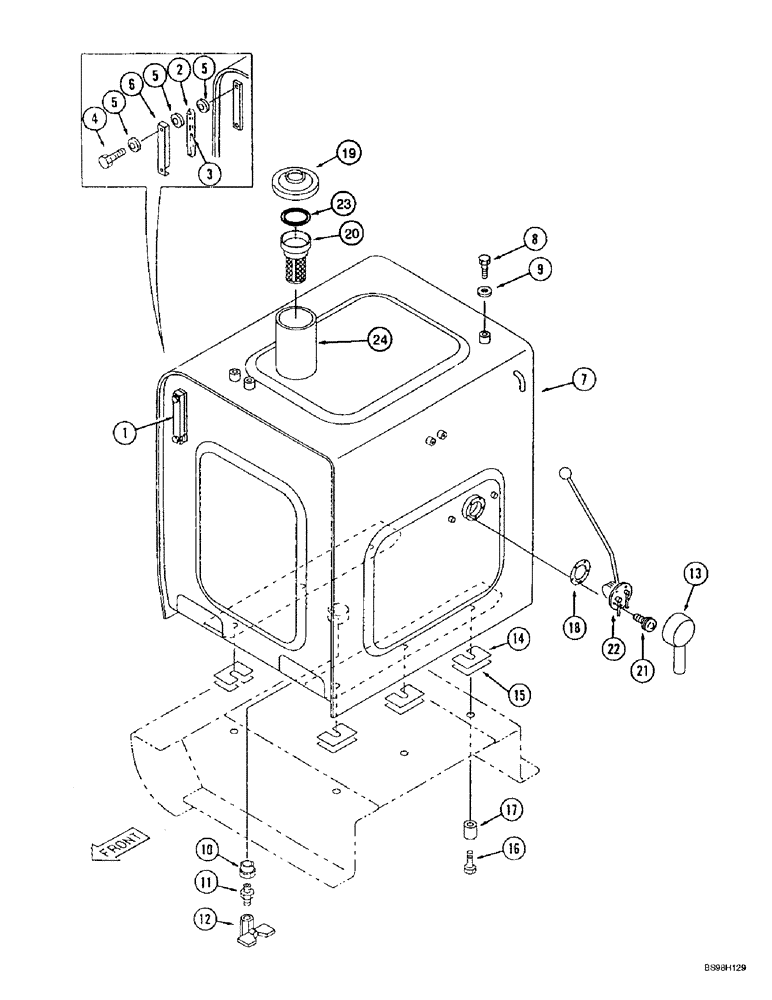

Схема запчастей Case 9010B - (3-002) - FUEL TANK (03) - FUEL SYSTEM
18
19
3
20
14
23
5
12
13
17
8
4
1
16
6
11
24
2
5
15
21
10
7
22
5
9

Артикул

Название

Примечание

Количество

1

159815A1

GAUGE

ASSEMBLY - liquid level, Includes: Ref. 2 - 6

1шт.

2

159479A1

BODY

- gauge

1шт.

3

159480A1

FUEL GAUGE

FLOAT - indicator, red

1шт.

4

159492A1

BOLT

BOLT - special

2шт.

5

159493A1

SEALING WASHER

SEAL - washer

6шт.

6

159816A1

COVER

- indicator

1шт.

7

163760A1

FUEL TANK

TANK - fuel

1шт.

8

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

1шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

10

159188A1

BUSHING

ADAPTER - straight, special, drain valve

1шт.

11

150847A1

HYD CONNECTOR

CONNECTOR - straight

1шт.

12

158923A1

DRAIN VALVE

VALVE - drain

1шт.

13

159698A1

COVER

- special

1шт.

14

150166A1

SHIM

- 0.8 mm (1/32 inch) thick, fuel, Serial Range: tank-frame

1шт.

15

150479A1

SHIM

- 2.0 mm (5/64 inch) thick, fuel, Serial Range: tank-frame

1шт.

16

827-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

6шт.

17

153357A1

SPACER

- bolt

6шт.

18

152591A1

GASKET,2mm Thk

- fuel level sender

1шт.

19

150492A1

LOCKABLE FUEL CAP

CAP - fuel tank

1шт.

20

150146A1

FILTER

- fuel tank

1шт.

21

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

- pan head

5шт.

22

159610A1

SENSOR

SENDER - fuel level

1шт.

23

163804A1

GASKET

- special

1шт.

24

150605A1

FUEL TUBE

TUBE - fuel filler

1шт.

Выбрано товаров: 24
