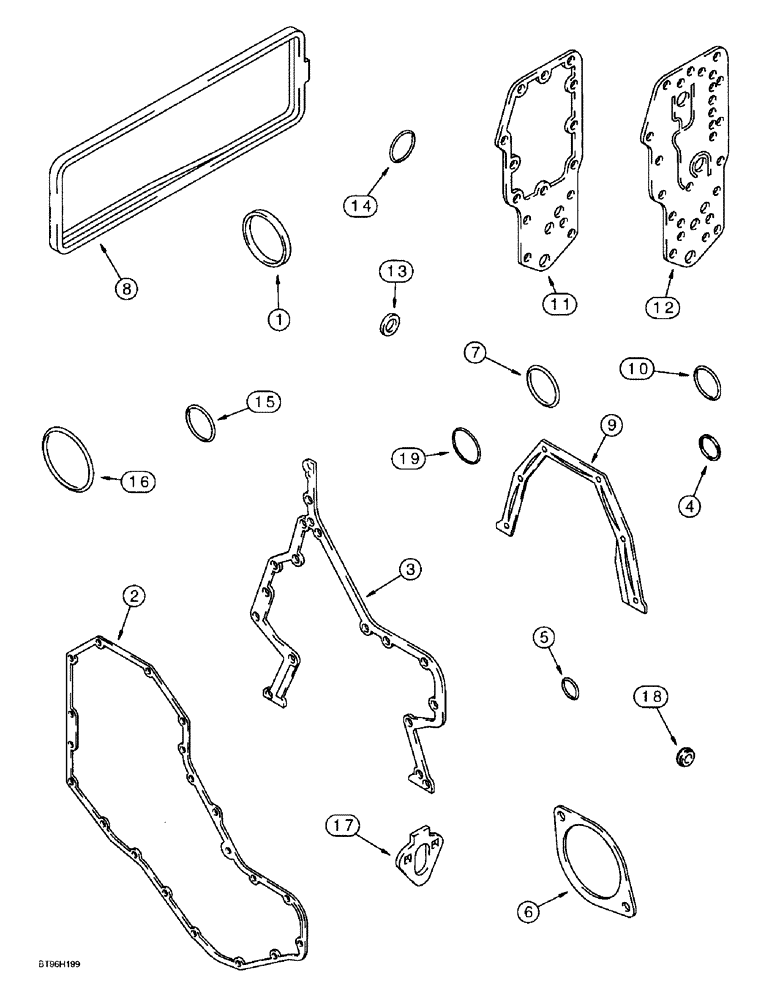

Запчасти Case 9010B (2-104) - ENGINE GASKET KITS, 4TA-390 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC01#2001 AND AFTER, CYLINDER BLOCK (02) - ENGINE

A77864

SEAL PACKAGE

KIT - gasket, cylinder block, Includes: Ref. 1 - 19

1шт.

For complete engine overhaul, order (1) each of valve grind kit, Figure 2-92, cylinder block kit, shown above, oil pan kit, Figure 2-52, front and rear crankshaft seal kit, Figure 2-80 and required cylinder head gasket, Figure 2-56.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

2

J918673

GASKET,1.02mm Thk

- front cover

1шт.

3

J931351

GASKET

- gear housing

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

5

J913994

O-RING

- sealing

1шт.

6

J929751

GASKET

- access cover plate

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump to block -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

8

J283767

GASKET,7.4mm Thk

- tappet cover, replaces J928831 gasket

1шт.

9

J928493

GASKET

- rear cover retainer, crankshaft

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, water inlet connection

1шт.

11

J942914

GASKET

- oil cooler core

1шт.

12

J929792

GASKET,1.2mm Thk

- filter head

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 38 mm (1-1/2 inch) ID

1шт.

15

J929457

O-RING

- oil filter plug

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel, Serial Range: housing-block

1шт.

17

J931348

GASKET

- mounting, fuel transfer pump

1шт.

18

J928759

SEALING WASHER

- cover bolt

4шт.

19

J930993

O-RING

- sealing

1шт.
